Documents & Downloads
Product Specifications
- Digital Input Sample Rates
- RECORD... 32kHz – 96kHz
- Frequency Response
- 2Hz – 20,050Hz
- Playback Sampling Frequency
- 44.1kHz
- Power Requirements
- 100~240 V AC, 50–60Hz
- D/A Conversion
- 96kHz, Multi-Bit Delta-Sigma Conversion
- Power Consumption
- 26 Watts
- Signal-to-Noise Ratio
- 100dB (playback)
- Signal-to-Noise Ratio
- RECORD... 91dB (recording - analog)
- Oversampling
- 128 Times
- Playback Dynamic Range
- 100dB
- Signal-to-Noise Ratio
- RECORD... Equal to Source (digital dub mode)
- Signal-to-Noise Ratio
- RECORD... Source – 10dB (digital external source)
- Total Harmonic Distortion
- 0.005%/-88dB (playback)
- Analog Audio Output
- 1V RMS, (±2dB)
- Recording Dynamic Range
- RECORD... 91dB
- Digital-Coaxial Output
- 0.5Vpp/75 ohms
- Total Harmonic Distortion
- RECORD... 0.005%/-85dB (recording)
- Headphone Output
- 0.5V RMS/32Ω Load
- Input Sensitivity
- RECORD... ANALOG - 330mV RMS 47k ohms = 0dB
- Digital Inputs (Direct Recording)
- RECORD... 44.1kHz, ±100 ppm/min.
- MSRP U.S.
- $699.95 each
- Width
- 17.3 inch (440mm)
- Height
- 4.4 inch (112mm)
- Depth
- 14.2 inch (363mm)
- Weight
- 10.6lb (4.8kg)

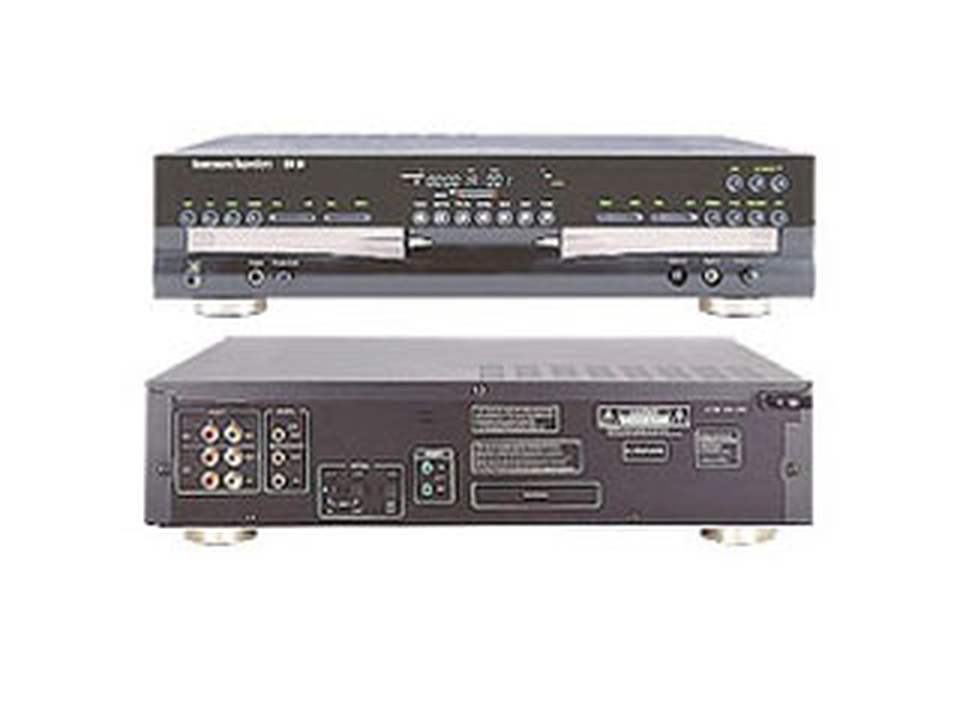

The new Harman Kardon CDR 30 provides superb performance in an easy-to-use package that serves virtually all of your CD-related needs. Play back HDCD-encoded and standard CDs with unmatched sonic accuracy courtesy of the precision circuitry in the CDR 30's chassis. For the first time, you can play back your MP3 discs in an audiophile-quality consumer audio component and make analog recordings of the MP3 tracks. Of course, the CDR 30 functions as an outstanding recording device, and can be used to dub discs or programmed playlists, or to record from external digital or analog sources.
