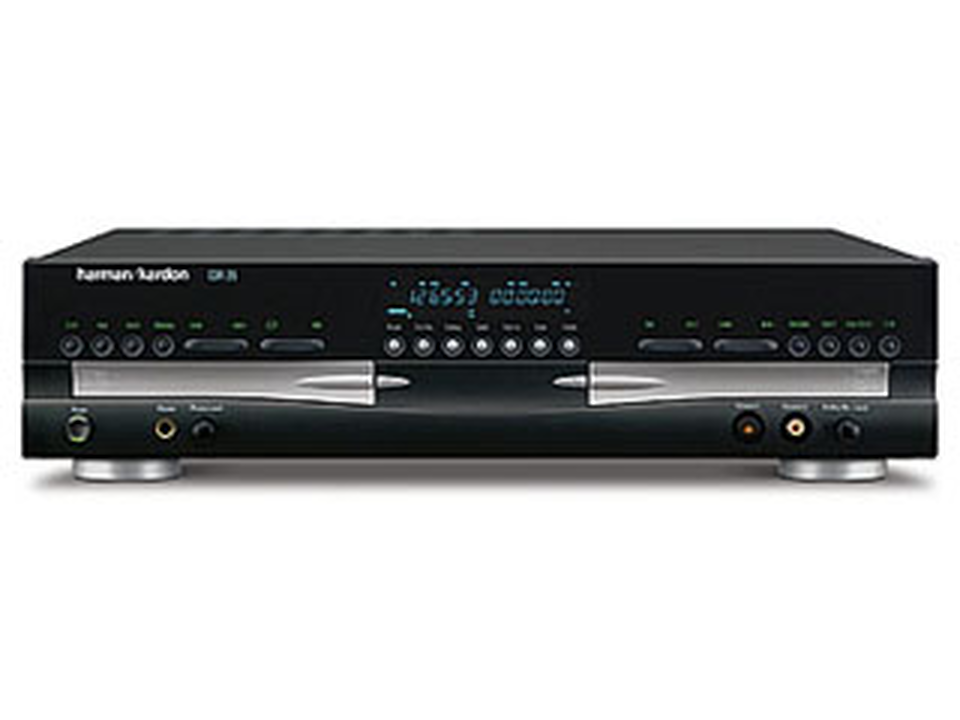

CDR 26

2-Drawer CD-R & CD-RW Player/ Recorder

Sold from 2002 until 2003

Predecessor Product:	CDR 30
Made in:	China

Documents & Downloads

Manuals

Quick Start Guide

Quick Start Guide (English) 113.73 KB

Product Specifications

General Specifications

Digital Input Sample Rates: RECORD... 32kHz – 96kHz

Frequency Response: 2Hz – 20.050Hz

Playback Sampling Frequency: 44.1kHz

Power Requirements: AC 110V–240V/50Hz–60Hz

D/A Conversion: 192kHz/24-Bit Delta-Sigma Conversion

Power Consumption: 20 Watts`

Signal-to-Noise Ratio: 100dB (playback)

Signal-to-Noise Ratio: RECORD... 80dB (recording - analog)

Oversampling: 128 Times

Playback Dynamic Range: 95dB

Signal-to-Noise Ratio: RECORD... Equal to Source (digital dub mode)

Signal-to-Noise Ratio: RECORD... Source – 10dB (digital external source)

Total Harmonic Distortion: 0.01%/0dB (playback)

Analog Audio Output: 2V RMS, (±2dB)

Recording Dynamic Range: RECORD... 90dB

Digital-Coaxial Output: 0.5Vpp/75 ohms

Total Harmonic Distortion: RECORD... 0.01%/0dB (recording)

Headphone Output: 1V RMS/32-Ohm Load

Input Sensitivity: RECORD... ANALOG - 330mV RMS 47k ohms = 0dB

Digital Inputs (Direct Recording): RECORD... 44.1kHz, ±100 ppm/min.

MSRP U.S.: $449.95 each

Dimensions

Weight: 13 lb (5.8kg)

Dimensions (H x W x D): 4-7/16 inch x 17-5/16 inch x 13-15/16 inch (112mm x 440mm x 355mm)

Think of the CDR 26 as a inchdubbing cassette deck for the digital millennium. inch Make your own custom CDs with just your favorite tracks, or copy an entire disc using inexpensive CD-R blanks. The CDR 26's 4x dubbing speed allows you to copy an hour-long program in just fifteen minutes - and speed up other key recorder functions. It also features synchronized recording from external sources: the recorder starts at exactly the same time as the source, which can be digital or analog. Finally, the CDR 26 is also a superb CD player with continuous two-disc or one-time/one-disc playback, headphone jack with level control and full-featured ergonomic remote control.
