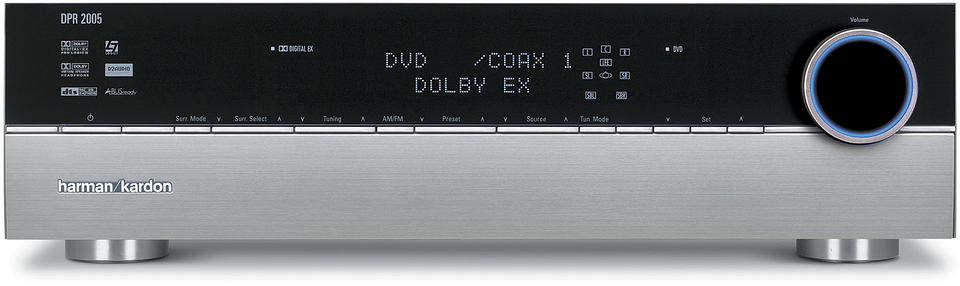

DPR 2005
Digital Path Audio/Video Receiver With Dolby Digital & DTS (120 watts x 7)
Vendido desde 2004 hasta 2006
| Producto predecesor: | DPR 1005 |
|---|---|
| Made in: | China |
Documents & Downloads
Specifications
- Power Requirements
- AC 120V/60Hz
- Power Consumption:
- Digital Inputs (coaxial/optical)
- 2/2 on Rear; 1 (switchable to output)/1 on front
- Standby:
- 8.9W
- Analog Inputs
- 1 A/V on front panel (switchable to output)
- Analog Inputs
- 2 audio-only
- Analog Inputs
- 5 A/V on rear panel
- Analog Inputs
- 6-/8-channel input
- Analog Inputs
- tuner
- Idle:
- 58W
- Max (7 channels driven):
- 1073W
- On-Screen Display
- Yes
- Multizone Capability
- Audio; A-BUS Ready; RS-232 serial control port; surround back channels assignable to remote zone; Zone II remote
- Auto Setup
- EzSet remote
- Remote Control
- Backlit, eight-device, programmable learning remote(2-line LCD display)
- Shipping Weight (System, Accessories, Packing)
- 26.4 lb (12.5kg)
- MSRP U.S.
- $1799.95 each
- # of Amplifier Channels
- 7
- Continuous Average Power (FTC) per Channel (stereo mode)
- 120 Watts per channel, 20Hz – 20kHz, @ <0.15% THD, both channels driven into 8 ohms
- Front L & R Channels
- 120 Watts per channel @ <0.15% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 120 Watts @ <0.15% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels (L & R Side, L & R Back)
- 120 Watts per channel @ <0.15% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 97dB (IHF-A)
- Surround System Adjacent Channel Separation:
- Dolby Pro Logic I/II/IIx
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Width
- 17.3 inches (440mm)
- Height
- 4.5 inches (114mm)
- Depth
- 18.8 inches (476mm)
- Weight
- 23.1 lb (10.5kg)
- Dimensions:
- Carton Dimensions
- 22.6 inches x 8.9 inches x 21.9 inches (573mm x 225mm x 555mm)
- Television Format
- NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response:
- Composite and S-Video
- 10Hz – 8MHz (–3dB)
- Component Video
- 10Hz – 50MHz (–3dB)
- Frequency Range
- AM... 520 – 1720kHz
- Frequency Range
- FM... 87.5 – 108.0MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Signal-to-Noise Ratio
- FM... 70/68 dBA (Mono/Stereo)
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion (Mono/Stereo)
- FM... 0.2/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- Amplifier Power (RMS)
- 120 x 7 @ 8 ohms (20Hz – 20kHz, <0.15% THD) (all channels driven at full power)
Digital performance, stylishly presented. The DPR 2005 uses our digital path topology to link your program sources directly to a powerful amplifier without analog interference. Advanced digital processing handles all of the latest surround formats from Dolby and DTS, including Dolby Pro Logic IIx, Dolby Virtual Speaker and DTS 96/24. Of course, our proprietary Logic 7 technology is also present to give older stereo and matrix soundtracks a full 7.1 presentation. A wide range of multiroom options, including A-BUS Ready connectivity, assignable rear channels and a separate Zone II remote, lets you enjoy audio tracks throughout the house. If you want the latest technology in a compact yet elegant form, the DPR 2005 is the perfect choice.
