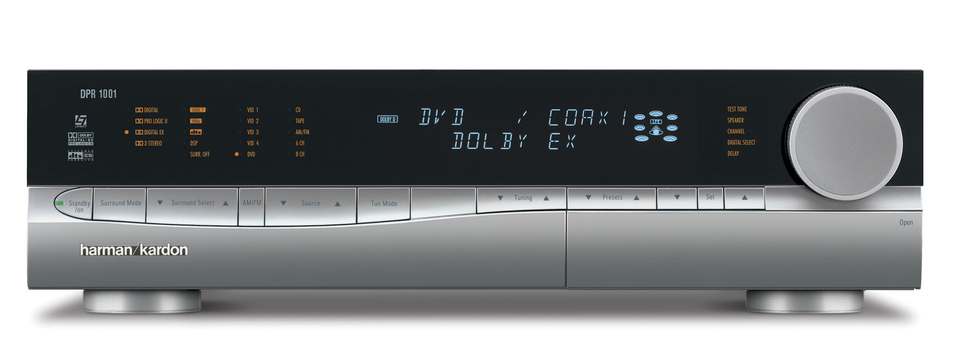

DPR 1001

Digital Path Audio/Video Receiver With Dolby Digital & DTS (50 watts x 7)

Vendido desde 2002 hasta 2003

Producto sucesor:	DPR 1005
Made in:	South Korea

Documents & Downloads

Quick Start Guide

Quick Start Guide (Ingles) 347.76 KB

Other

Packaging and Accessories (Ingles) 684.48 KB

Specifications

Características generales

Power Requirements: 120V AC/60Hz

Power Consumption: 7.6W standby, 550W @ rated output (all channels driven)

MSRP U.S.: $1499.95 each

Características Audio

Continuous Average Power (FTC) per Channel: All Channels... 50 Watts per channel @ 8 ohms, 1kHz, 0.19% THD

Power Output per EIA 490A: 65 Watts x 7 @ 8 ohms

Input Level/Impedance: 200mV/47k ohms - Linear (High-Level)

Signal-to-Noise Ratio: 90dB (IHF-A)

Surround System Adjacent Channel Separation:

Dolby Pro Logic I and II: 40dB

Dolby Digital: 55dB

DTS: 55dB

Frequency Response: 20Hz – 22kHz (+0/-3dB @ 1 watt)

Transient Intermodulation Distortion (TIM): None

Negative Feedback: None

Medidas

Width: 17.3 inch (440mm)

Height: 4.75 inch (120mm)

Depth: 18.75 inch (476mm)

Weight: 17 lb (7.7kg)

Dimensions:

Especificaciones de vídeo

Television Format: NTSC

Input Level/Impedance: 1 Vp-p/75 ohms

Output Level/Impedance: 1V/75 ohms

Video Frequency Response:

Composite and S-Video: 10Hz – 8MHz (–3dB)

Component Video: 10Hz – 30MHz (–3dB)

Tuner Specifications

Frequency Range: AM... 520kHz – 1710kHz

Frequency Range: FM... 87.5MHz – 108.0MHz

Signal-to-Noise Ratio: AM... 45dB

Usable Sensitivity: FM... IHF 1.3µV/13.2dBf

Signal-to-Noise Ratio: FM... Mono/Stereo 70dB/68dB

Usable Sensitivity: AM... Loop 500µV

Distortion: AM... 1kHz, 50% Mod. 0.8%

Distortion: FM... Mono/Stereo 0.2%/0.3%

Selectivity: AM... ± 10kHz, 30dB

Stereo Separation: FM... 40dB @ 1kHz

Selectivity: FM... ± 400kHz, 70dB

Image Rejection: FM... 80dB

IF Rejection: FM... 90dB

Once again, Harman Kardon breaks the rules and sets a new standard for advanced technology. This time we've leapfrogged conventional technology to create the first true digital path A/V receiver. Simply put, the audio signal remains digital all the way from the disc through to the digital amplifiers. This unique, all-digital approach results in a dramatically smaller form factor, much cooler operating temperatures, enhanced reliability, and flexibility in output assignment.
