Specifications
- Power Requirements
- 120V AC/60Hz
- Power Consumption
- 120W @ idle, 1,040W @ rated output (7 channels driven)
- MSRP U.S.
- $1999.95 each
- Continuous Average Power (FTC) per Channel (stereo mode)
- 115 Watts per channel @ <0.07% THD, 20Hz – 20kHz, both channels driven into 8 ohms
- Front L & R Channels
- 100 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 100 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels (L & R Side, L & R Back)
- 100 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 95dB (IHF-A)
- Surround System Adjacent Channel Separation:
- Dolby Pro Logic I and II
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 100kHz (+0/-3dB @ 1 watt)
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Slew Rate
- 40V/µsec
- Width
- 17.3 inch (440mm)
- Height
- 7.6 inch (194mm)
- Depth
- 2.5 inch (521mm)
- Weight
- 59.1 lb (26.9kg)
- Dimensions:
- Television Format
- NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Composite and S-Video
- 10Hz – 8MHz (–3dB)
- Component Video
- 10Hz – 50MHz (–3dB)
- Frequency Range
- AM... 520 – 1710kHz
- Frequency Range
- FM... 87.5 – 108.0MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Signal-to-Noise Ratio
- FM... Mono/Stereo 70dB/68dB
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod. 0.8%
- Distortion
- FM... Mono/Stereo 0.2%/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- High Instantaneous Current Capability (HCC)
- ± 75 Amps

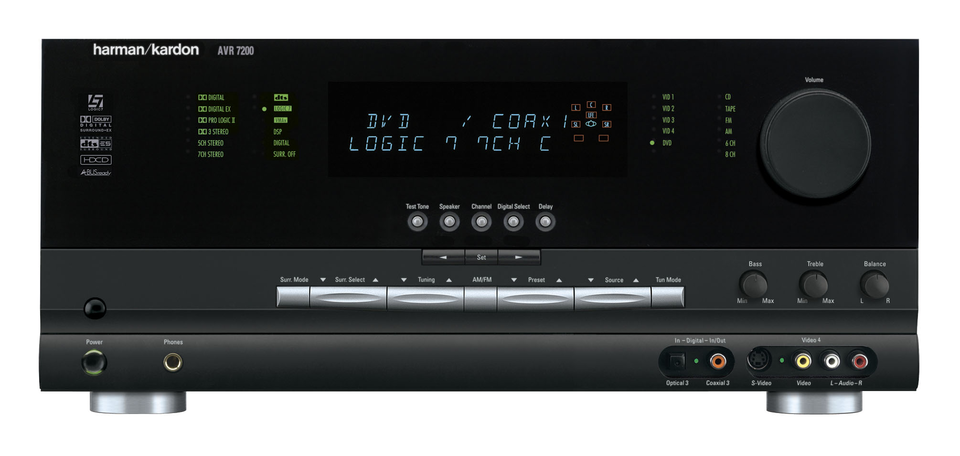

The AVR 7200's seven-channel, high-current, ultrawide-bandwidth amplifier is the most powerful ever in a Harman Kardon receiver. A comprehensive bass management system with Triple Crossover selection makes certain that low-frequency sound goes to the right place no matter what type of speakers you own or input you use, including DVD-Audio or SACD. Multiroom options range from assignable rear-channel amplifiers to an A-BUS Ready port, which allows complete remote-room control and amplification with only one Cat. 5 wire connection. A preprogrammed remote with an LCD display and EzSet;, an RS-232 port and a complete range of surround processing options all contribute to the AVR 7200's spectacular music and home theater performance.
