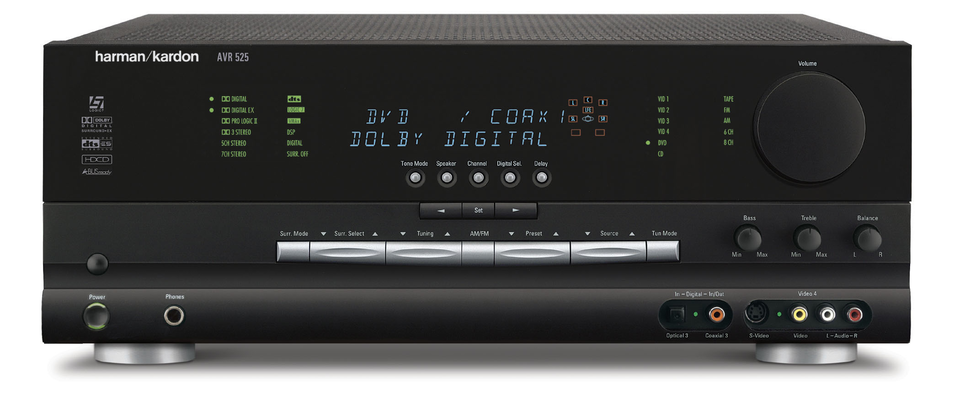

AVR 525
Audio/Video Receiver With Dolby Digital & DTS (85 watts x 2 | 70 watts x 7)
Vendido desde 2002 hasta 2003
| Producto predecesor: | AVR 520 |
|---|---|
| Made in: | China |
Documents & Downloads
Specifications
- Power Requirements
- 120V AC/60Hz
- Power Consumption
- 120W @ idle, 1,040W @ rated output (7 channels driven)
- MSRP U.S.
- $1199.95 each
- Continuous Average Power (FTC) per Channel (stereo mode)
- 85 Watts per channel @ <0.07% THD, 20Hz – 20kHz, both channels driven into 8 ohms
- Front L & R Channels
- 70 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 70 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels (L & R Side, L & R Back)
- 70 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 95dB (IHF-A)
- Dolby Pro Logic I and II
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 100kHz (+0/-3dB @ 1 watt)
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Slew Rate
- 40V/µsec
- Width
- 17.3 inch (440mm)
- Height
- 6.5 inch (165mm)
- Depth
- 17.1 inch (435mm)
- Weight
- 44 lb (20kg)
- Television Format
- NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Composite and S-Video
- 10Hz – 8MHz(–3dB)
- Component Video
- 10Hz – 50MHz(–3dB)
- Frequency Range
- AM... 520 – 1710kHz
- Frequency Range
- FM... 87.5 – 108.0MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Signal-to-Noise Ratio
- FM... Mono/Stereo 70dB/68dB
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod. 0.8%
- Distortion
- FM... Mono/Stereo 0.2%/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- High Instantaneous Current Capability (HCC)
- ± 45 Amps
Thanks to the latest surround technology such as Dolby Digital EX, DTS-ES and our own Logic 7 processing, in addition to a seven-channel, high-current, ultrawide-bandwidth amplifier, the AVR 525 doesn't miss a beat. Make your program selections from a vast array of digital, analog and wide-bandwidth component video inputs, manage the bass with our Triple Crossover system, and extend the music to a second zone with A-BUS Ready technology or assignable rear-channel amplifiers. Wherever you want your music and movies, however loud you want them, the AVR 525 can handle the job.
