Specifications
- Power Requirements
- AC 120V/60Hz
- Power Consumption
- 59W idle, 940W @ rated power output (7 channels driven)
- Digital Inputs (coaxial/optical)
- 2/2 on Rear; 1/1 on front
- Analog Inputs
- 1 A/V on front panel (switchable to output)
- Analog Inputs
- 2 audio-only
- Analog Inputs
- 4 A/V on rear panel
- Analog Inputs
- 6-/8-channel input
- Analog Inputs
- tuner
- On-Screen Display
- Yes
- Multizone Capability
- Audio; A-BUS Ready; RS-232 serial control port; surround back channels assignable to remote zone; Zone II remote
- EzSet
- Yes
- Remote Control
- Backlit, eight-device, programmable learning remote (2-line LCD display)
- Shipping Weight (System, Accessories, Packing)
- 45 lb (20.4kg)
- MSRP U.S.
- $999.95 each
- # of Amplifier Channels
- 7
- Stereo Mode:
- Continuous Average Power (FTC) per Channel
- 80 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
- Front L & R Channels
- 65 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 65 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels (L & R Side, L & R Back)
- 65 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 95dB (IHF-A)
- Surround System Adjacent Channel Separation:
- Dolby Pro Logic I and II
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 130kHz (+0/-3dB @ 1 watt)
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Slew Rate
- 40V/µsec
- Width
- 17.3 inches (440mm)
- Height
- 6.5 inches (165mm)
- Depth
- 17.1 inches (435mm)
- Weight
- 39 lb (17.7kg)
- Dimensions:
- Carton Dimensions
- 20.1 inches x 10 inches x 22.2 inches (510mm x 254mm x 565mm)
- Television Format
- NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response:
- Composite and S-Video
- 10Hz–8MHz (–3dB)
- Component Video
- 10Hz–50MHz (–3dB)
- Frequency Range
- AM... 520–1720kHz
- Frequency Range
- FM... 87.5–108.0MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Signal-to-Noise Ratio
- FM... Mono/Stereo 70/68dB
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion
- FM... Mono/Stereo 0.2/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- Amplifier Power (RMS)
- 65 x 7 @ 8 ohms, (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)
- High Instantaneous Current Capability (HCC)
- ± 40 Amps

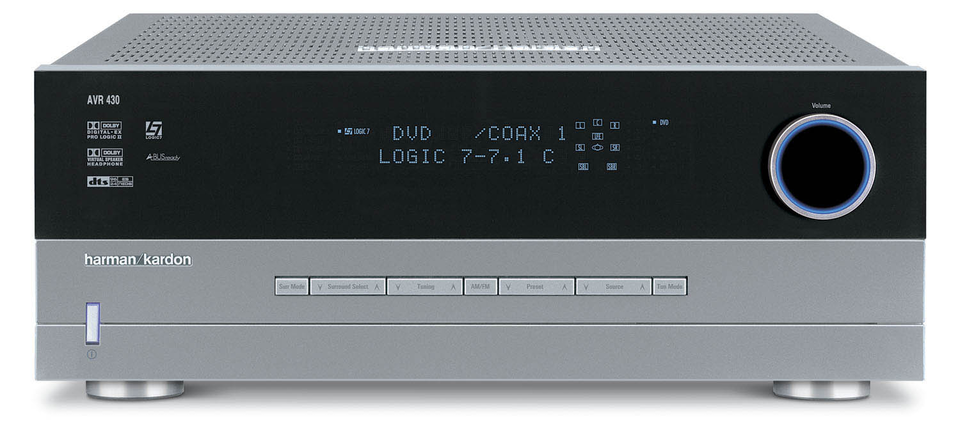

The truth is in the numbers: a 32-bit post processor, RS-232 connectivity, a two-line LCD remote control, Logic 7, Dolby Pro Logic II, DTS 96/24, a quadruple crossover with six crossover points per speaker location and more multiroom options than any other receiver, including A-BUS Ready connectivity. The AVR 430 is Harman Kardon to the core. You can count on big numbers from the seven-channel, high-current, ultrawide-bandwidth amplifier, along with the ability to assign two of the channels to a second remote zone. No matter how you add it up, the AVR 430 delivers high performance.
