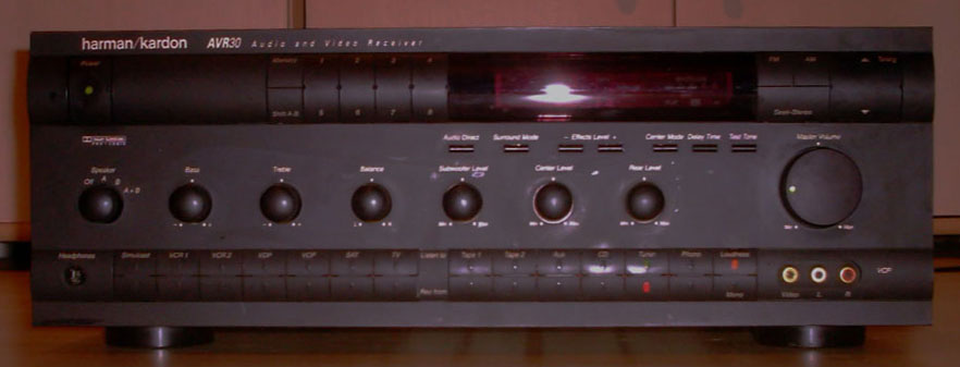

AVR 30
Audio/Video Receiver With Dolby Pro-Logic (60 watts x 2 | 50 watts x 3 front & 20 watts x 2 rear)
Vendido desde 1992 hasta 1996
Documents & Downloads
Specifications
- Audio Inputs
- 2 line, 1 phono
- MSRP U.S.
- $1249.95 each
- Usable Sensitivity
- FM... MONO – 13.2dB
- Quieting Sensitivity
- FM... STEREO – 38.2dB
- Signal-to-Noise Ratio
- FM... STEREO – 70dB
- Signal-to-Noise Ratio
- FM... MONO – 80dB
- Capture Ratio
- FM... 1.5dB
- Selectivity
- FM... ADJACENT – 5dB
- Alternate Channel Selectivity
- FM... 65dB
- IF Rejection
- FM... 85dB
- AM Rejection
- FM... 55dB
- Stereo Separation
- FM... 45dB
- Total Harmonic Distortion
- FM... MONO – 0.2% @ 1kHz
- Total Harmonic Distortion
- FM... STEREO – 0.3% @ 1kHz
- Sensitivity
- FM... EXTERNAL ANTENNA – 18 microvolts
- Alternate Channel Selectivity
- AM... 55dB
- Image Rejection
- AM... 40dB
- IF Rejection
- AM... 60dB
- Power Consumption
- AM... 236 watts
- Audio Loops
- 2
- Audio/Video Inputs
- 4
- Audio/Video Loops
- 2
- Preamp Outputs
- Front, Center, Rear, L & R Sub
- Video Outputs
- 1
- Amplifier Power (RMS)
- STEREO – 60 watts per channel @ 6 ohms
- Amplifier Power (RMS)
- SURROUND – FRONT L & R, CENTER 50 watts per channel @ 6 ohms
- Total Harmonic Distortion
- STEREO – 0.09% @ 6 ohms
- Total Harmonic Distortion
- SURROUND – FRONT L & R, CENTER 0.09% @ 6 ohms
- Total Harmonic Distortion
- SURROUND – REAR L & R 0.3%
- Output 4 Ohms
- SURROUND – REAR L & R 20 watts per channel
- Negative Feedback
- 20dB
- Frequency Response
- 0.5Hz – 200kHz (+0/-3dB)
- Slew Rate
- 80 v/microsecond
- Rise Time
- 2 microseconds
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Signal-to-Noise Ratio
- PHONO – 78dB
- Signal-to-Noise Ratio
- CD, VIDEO, etc – 98dB
- Input Level/Impedance
- PHONO – 2.5mv/47k ohms
- Input Level/Impedance
- CD, VIDEO, etc – 135mv/22k ohms
- Output Level/Impedance
- SUBWOOFER – 2 volts/10k ohms
- RIAA Equalization
- ±0.5dB
- Phono Overload
- 120mv
- Tone Controls
- BASS – ±10dB @ 50Hz
- Tone Controls
- TREBLE – ±10dB @ 10kHz
- Loudness Control
- +10dB @ 50Hz
