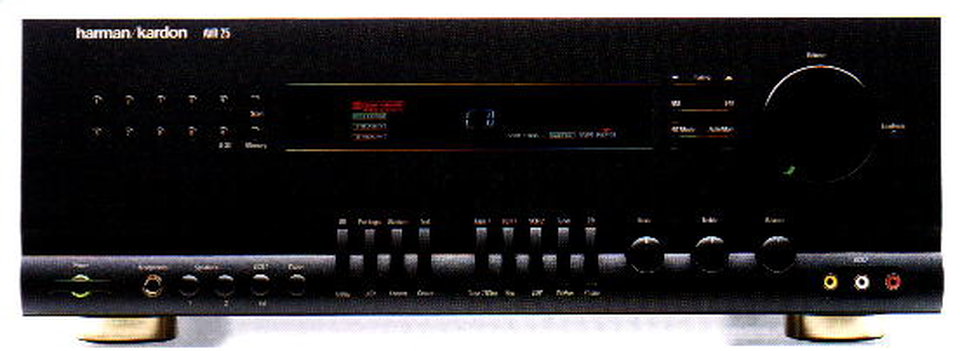

AVR 25

AVR 25

Audio/Video Receiver With Dolby Pro-Logic (75 watts x 2 | 65 watts x 3 front & 25 watts rear)

Vendido desde 1994 hasta 1995

Producto sucesor: AVR 25 II

Documents & Downloads

Specifications

MSRP U.S.
$749.95 each
Usable Sensitivity
FM... MONO – 11.2dB
Quieting Sensitivity
FM... STEREO – 37.2dB
Signal-to-Noise Ratio
FM... MONO – 74dB
Signal-to-Noise Ratio
FM... STEREO – 70dB
Capture Ratio
FM... 1.5dB
Selectivity
FM... ADJACENT – 5dB
Alternate Channel Selectivity
FM... 65dB
IF Rejection
FM... 100dB
AM Rejection
FM... 55dB
Stereo Separation
FM... 45dB
Total Harmonic Distortion
FM... MONO @ 1kHz 0.2%
Total Harmonic Distortion
FM... STEREO @ 1kHz 0.3%
Sensitivity
FM... EXTERNAL ANTENNA – 25 microvolts
Alternate Channel Selectivity
AM... 55dB
Image Rejection
AM... 35dB
IF Rejection
AM... 60dB
Audio Inputs
3 line, 1 phono
Audio Loops
2
Audio/Video Inputs
3
Audio/Video Loops
1
Preamp Outputs
Main, Center, Rear
Power Amp Inputs
Main
Video Outputs
2
Amplifier Power (RMS)
STEREO – 75 watts
Amplifier Power (RMS)
SURROUND – FRONT L & R, CENTER 65 watts per channel @ 8 ohms
Amplifier Power (RMS)
SURROUND – REAR L & R 25 watts per channel @ 8 ohms
Total Harmonic Distortion
STEREO 0.09% @ 8 ohms
Total Harmonic Distortion
SURROUND – FRONT L & R, CENTER 0.3% @ 8 ohms
High Instantaneous Current Capability (HCC)
± 40 Amps
Negative Feedback
26dB
Frequency Response
0.5Hz – 150kHz (+0/-3dB)
Slew Rate
80 v/microsecond
Rise Time
1.8 microseconds
Transient Intermodulation Distortion (TIM)
Unmeasurable
Signal-to-Noise Ratio
PHONO – 74dB
Signal-to-Noise Ratio
CD, VIDEO, etc – 92dB
Input Level/Impedance
PHONO – 2.5mv/47k ohms
Input Level/Impedance
CD, VIDEO, etc – 150 mv/22k ohms
RIAA Equalization
±1dB
Phono Overload
120mv
Tone Controls
BASS – ±10dB @ 50Hz
Tone Controls
TREBLE – ±10dB @ 10kHz
Loudness Control
+6dB @ 100Hz & +3dB @ 10kHz
