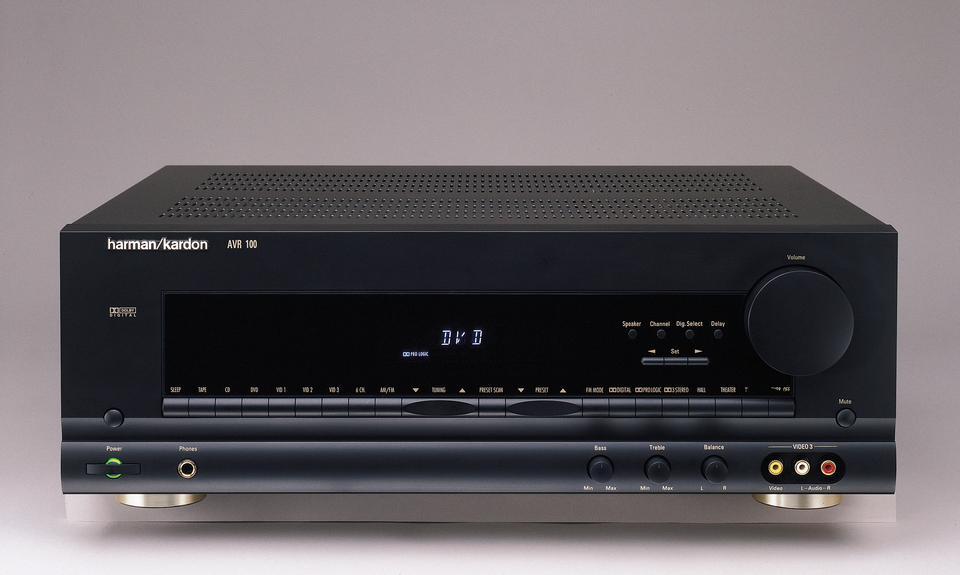

AVR 100

AVR 100

Audio/Video Receiver With Dolby Digital (50 watts x 2 | 40 watts x 5)

Vendido desde 1999 hasta 2000

Producto predecesor: AVR 5
Producto sucesor: AVR 110

Documents & Downloads

Specifications

Power Requirements
120V AC/60Hz
Power Consumption
72W idle, 290W maximum (2 channels driven)
Surround System Adjacent Channel Separation
Pro Logic Decoding... 40dB
Surround System Adjacent Channel Separation
Dolby Digital... 55dB
Frequency Response
10Hz – 100kHz (+0/-3dB @ 1 watt)
Transient Intermodulation Distortion (TIM)
0.08%
Rise Time
16µsec
Slew Rate
40V/µsec
MSRP U.S.
$499.95 each
Television Format
NTSC
Input Level/Impedance
1Vp-p/75 ohms
Output Level/Impedance
1V/75 ohms
Video Frequency Response
10Hz – 8MHz (-3dB)
Frequency Range
AM... 520 – 1710kHz
Frequency Range
FM... 87.5 – 108MHz
Signal-to-Noise Ratio
AM... 35dB
Usable Sensitivity
FM... IHF 1.5µV/14.8dB
Signal-to-Noise Ratio
FM... 73dB Mono ( measured at amV RF Input Level)
Usable Sensitivity
AM... Loop 800µV
Distortion
AM... 1kHz, 50% Mod 1.5%
Signal-to-Noise Ratio
FM... 70dB Stereo ( measured at amV RF Input Level)
Distortion (Mono/Stereo)
FM... 0.3%/0.5%
Selectivity
AM... ± 10kHz, 30dB
Stereo Separation
FM... 40dB @1kHz
Selectivity
FM... ± 400kHz, 60dB
Image Rejection
FM... 40dB
IF Rejection
FM... 100dB
Tuner Output Level
FM... 1kHz, ±75kHz Dev 500mV
Continuous Average Power (FTC) per Channel (stereo mode)
50 watts per channel @ <0.07% THD, 20Hz – 20kHz, both channels driven into 8 ohms
Continuous Average Power (FTC) per Channel (surround modes)
40 watts per channel @ <0.07% THD, 20Hz – 20kHz, all channels driven into 8 ohms
High Instantaneous Current Capability (HCC)
± 25 Amps
Input Level/Impedance
250mV/47k ohms - Linear (High-Level)
Signal-to-Noise Ratio
90dB
