Specifications
- Power Supply
- AC 120V, 60Hz
- Power Consumption
- 165 watts
- MSRP U.S.
- $300 each
- Dimensions (H x W x D)
- 4-1/16 x 17-1/2 x 14-1/2
- Usable Sensitivity
- FM... MONO – 11.2dBf (1uV-75 ohms)
- Quieting Sensitivity
- FM... MONO – 16.8dBf (1.9uV – 75 ohms)
- Signal-to-Noise Ratio
- FM... STEREO – 74dB
- Alternate Channel Selectivity
- FM... 60dB
- Stereo Separation
- FM... 45dB (1kHz, 65dBf, 100% modulation)
- Total Harmonic Distortion
- FM... MONO – 0.08% (1kHz, 65dBf)
- Total Harmonic Distortion
- FM... STEREO – 0.12% (65dBf, 1kHz)
- Sensitivity
- AM... EXTERNAL ANTENNA – 15uV
- Alternate Channel Selectivity
- AM... 45dB
- Amplifier Power (RMS)
- 30 watts per channel @ < 0.09% THD (@ 8 ohms 20 – 20kHz)
- High Instantaneous Current Capability (HCC)
- ± 15 Amps
- Power Bandwidth
- HALF POWER – 10Hz – 60kHz into 8 ohms
- Frequency Response
- 0.5Hz – 150kHz (+0/-3dB)
- Signal-to-Noise Ratio
- PHONO – 80dB (ref 1W output)
- Signal-to-Noise Ratio
- VIDEO, CD & TAPE – 85dB (ref 1W output) (IHF-A)
- Input Level/Impedance
- PHONO – 2.2mV/47k ohms and 125pF
- Input Level/Impedance
- VIDEO, CD & TAPE – 135mV/22k ohms
- Phono Overload
- 185mV
- Tone Controls
- BASS – ±10dB @ 50Hz
- Tone Controls
- TREBLE – ±10dB @ 10kHz
- Loudness Control
- 10dB/3dB (-40dB) @ 50Hz/ @ 10kHz
- Filter
- SUBSONIC – 15Hz, 6dB/octave

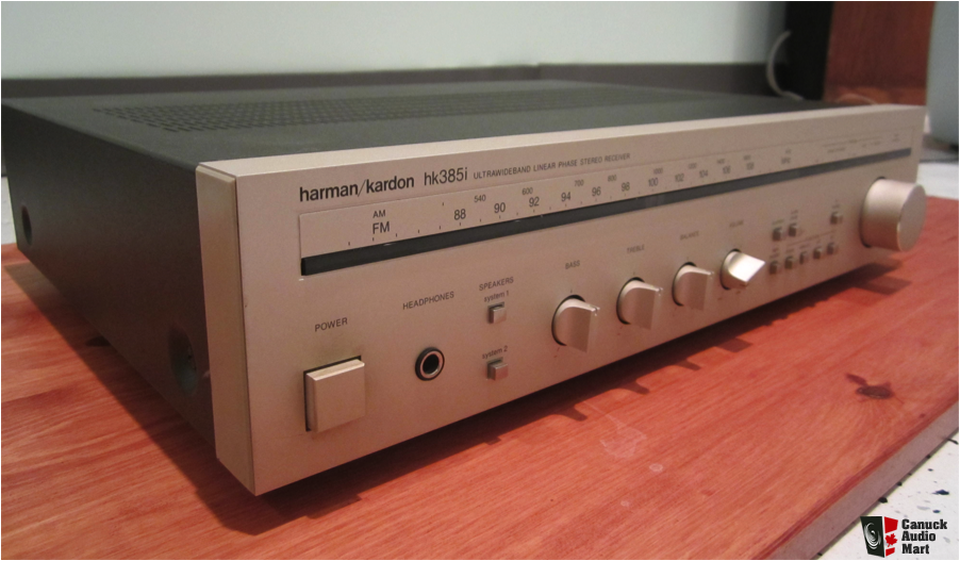

Stereo Receiver (30 watts x 2)
