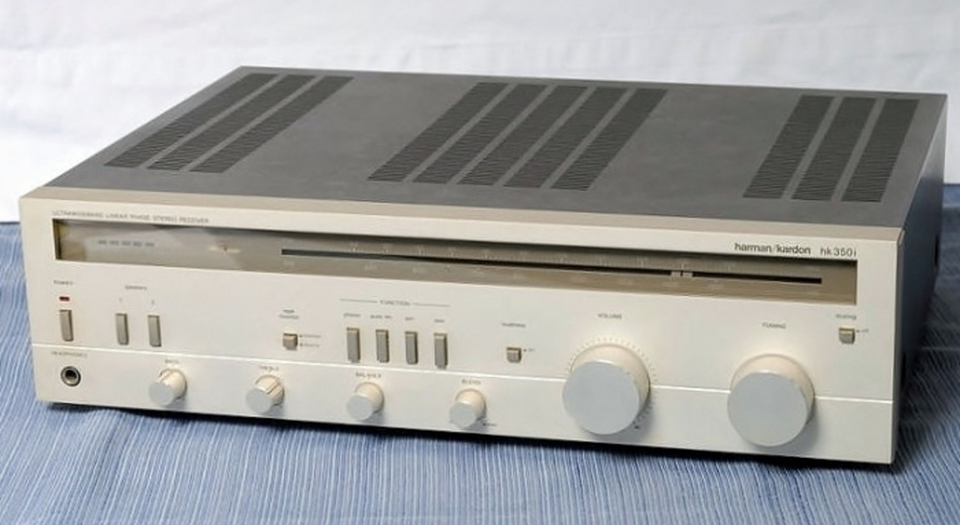

HK 350I

HK 350I

Stereo Receiver (20 watts x 2)

Vendido desde 1981 hasta 1982

Producto predecesor: HK 340
Producto sucesor: HK 330I
Made in: Japan

Documents & Downloads

Specifications

MSRP U.S.
$259.95 each
Dimensions (H x W x D)
4-13/16 X 17-3/8 X 14-1/2
Usable Sensitivity
FM MONO – 2.5uV
Quieting Sensitivity
MONO – 3.5uV
Quieting Sensitivity
STEREO – 45uV
Signal-to-Noise Ratio
FM STEREO – -65dB
Capture Ratio
FM... 1.9dB
Alternate Channel Selectivity
AM... 35dB
Alternate Channel Selectivity
FM… 60dB
IF Rejection
90dB AM – 45dB
AM Rejection
FM... 50dB
Stereo Separation
35dB @ 1kHz
Total Harmonic Distortion
FM MONO – 0.2% 1kHz, 100% Modulation
Total Harmonic Distortion
FM STEREO – 0.3% 1kHz, 100% Modulation
Frequency Range
FM – DC = 60kHz (+0/-3dB) @ detector output
Sensitivity
AM... AM – 350uV/m
Selectivity
AM – 40dB
Image Rejection
AM – 50dB
Amplifier Power (RMS)
20 watts @ < 0.09% THD, primarily low order harmonic both @ 8 ohms from 20 – 20kHz
Power Bandwidth
HALF POWER – <20Hz – 80kHz with 8 ohms
Frequency Response
below 3Hz – 90kHz +0,-3dB at rated output
Total Harmonic Distortion
0.05% primarily low order harmonics (1kHz @ rated output)
Transient Intermodulation Distortion (TIM)
0.09% @ rated output
Transient Intermodulation Distortion (TIM)
0.05%
Slew Rate
40 volts per usec
Rise Time
SQUARE WAVE – better than 2.5 usec
Square Wave Tilt
5% @ 20Hz
Negative Feedback
25dB
Damping Factor
>30 @ 8 ohms
Hum and Noise
PHONO – -80dB A-WTD
Hum and Noise
AUX & RES – -85dB A-WTD
Input Sensitivity
PHONO – 2.5mV
Input Sensitivity
AUX – 180mV
Input Impedance
PHONO – 47k ohms
Phono Overload
>80mV
RIAA Equalization
±1dB

Stereo Receiver (20 watts x 2)
