Specifications
- Power Requirements
- AC 120V/60Hz
- Power Consumption
- 3W standby, 280W maximum (both channels driven)
- Digital Inputs (coaxial/optical)
- None
- Analog Inputs
- 1 A/V on front panel
- Analog Inputs
- 3 A/V on rear panel
- Analog Inputs
- 3 audio-only
- Analog Inputs
- tuner
- On-Screen Display
- No
- Multizone Capability
- Speaker A/B switch
- Remote Control
- Five-device system remote
- Shipping Weight (System, Accessories, Packing)
- 25.1 lb (11.4kg)
- MSRP U.S.
- $449.95 each
- # of Amplifier Channels
- 2
- Stereo Mode:
- Continuous Average Power (FTC) per Channel
- 120 Watts per channel, 20Hz – 20kHz @ <0.07% THD, both channels driven into 8 ohms
- Continuous Average Power (FTC) per Channel
- 150 Watts per channel, 20Hz – 20kHz @ <0.2% THD, both channels driven into 4 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 95dB (IHF-A)
- Frequency Response
- 10Hz – 110kHz (+0/-3dB @ 1 watt)
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Rise Time
- 16 µsec
- Slew Rate
- 40V/µsec
- Width
- 17.4 inches (442mm)
- Height
- 6.6 inches (168mm)
- Depth
- 15 inches (382mm)
- Weight
- 20.9 lb (9.5kg)
- Dimensions:
- Carton Dimensions
- 21.5 inches x 9.9 inches x 17.9 inches (545mm x 251mm x 455mm)
- Television Format
- NTSC/PAL/SECAM
- Signal Format System
- Composite
- Input Level/Impedance
- 1V p-p/75 ohms, unbalanced
- Sync Polarity
- Negative
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response
- 10Hz – 10MHz
- Frequency Range
- AM... 520 – 1720kHz
- Frequency Range
- FM... 87.5 – 108MHz
- Signal-to-Noise Ratio
- AM... >40dB
- Usable Sensitivity
- FM... IHF 1.12µV/13.5dBf
- Signal-to-Noise Ratio
- FM... Mono/Stereo 73/72dB
- Usable Sensitivity
- AM... Loop 500µV/M
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion
- FM... Mono/Stereo 0.3/0.4%
- Selectivity
- AM... ± 10kHz, >25dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 65dB
- Image Rejection
- FM... >80dB
- IF Rejection
- FM... >100dB
- Tuner Output Level
- FM... 1kHz, ±100kHz, Dev 500mV
- Amplifier Power (RMS)
- 120 x 2 @ 8 ohms, (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)
- High Instantaneous Current Capability (HCC)
- ± 45 Amps

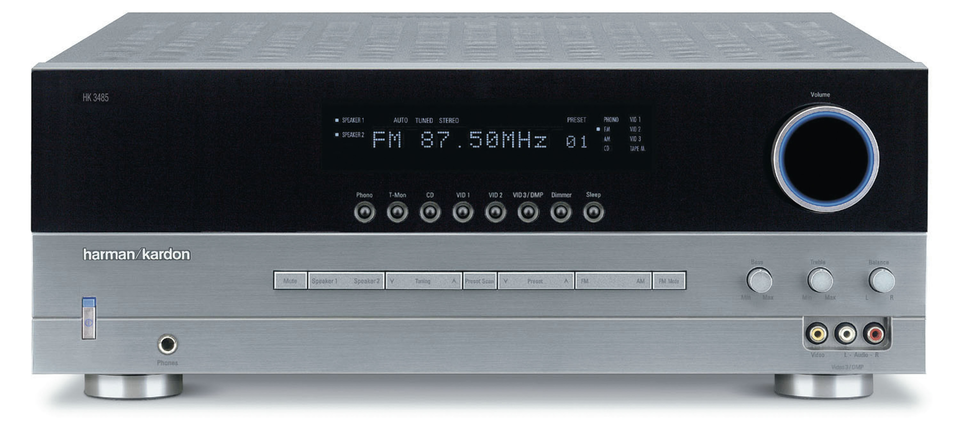

Harman Kardon knows more about stereo receivers than anyone else. After all, we invented the product category almost fifty years ago! The HK 3485 is where traditional features such as a high-performance phono preamp, pre-out/main-in jacks and high-current amplification meet the present and future with video switching, a subwoofer output and a cable for direct audio/video connection to an iPod player or MP3 player. Whether it comes from a turntable, the built-in tuner or a portable player, your music never sounded better!
