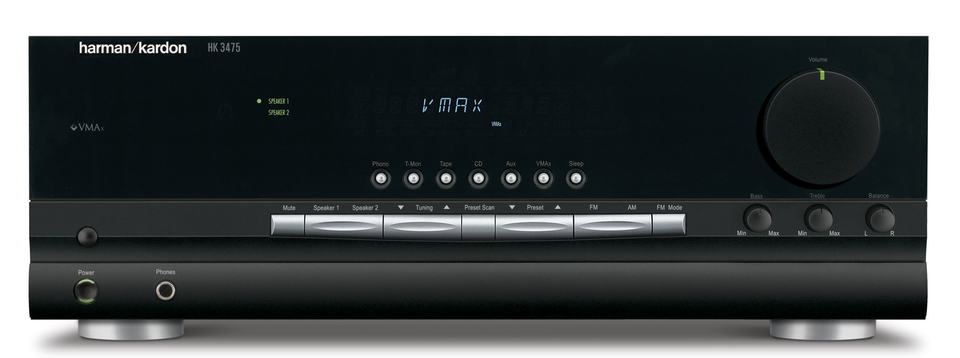

HK 3475

Stereo Receiver (110 watts x 2)

Vendido desde 2002 hasta 2003

Producto predecesor:	HK 3470
Producto sucesor:	HK 3480
Made in:	China

Documents & Downloads

Other

Packaging and Accessories (Ingles) 1016.75 KB

Specifications

Características generales

Power Requirements: AC 120V/60Hz

Power Consumption: 72 Watts idle, 332 Watts maximum (both channels driven)

MSRP U.S.: $449.95 each

Características Audio

Continuous Average Power (FTC) per Channel (stereo mode): 110 Watts per channel, 20Hz – 20kHz @ <0.07% THD, both channels driven into 8 ohms

Continuous Average Power (FTC) per Channel (stereo mode): 140 watts per channel, 20Hz – 20kHz @ <0.2% THD, both channels driven into 4 ohms

Input Level/Impedance: 200mV/47k ohms - Linear (High-Level)

Signal-to-Noise Ratio: 95dB (IHF-A)

Frequency Response: 10Hz – 110kHz (+0/-3dB @ 1 watt)

Transient Intermodulation Distortion (TIM): Unmeasurable

Rise Time: 16 µsec

Slew Rate: 40V/µsec

Medidas

Weight: 26.8 lb (12.1kg)

Dimensions (H x W x D): 6.1 inch x 17.4 inch x 16.3 inch (156mm x 442mm x 415mm)

Tuner Specifications

Frequency Range: AM... 520 – 1710kHz

Frequency Range: FM... 87.5 – 108MHz

Signal-to-Noise Ratio: AM... >40dB

Usable Sensitivity: FM... IHF 1.12 µV/13.5dBf

Signal-to-Noise Ratio: FM... 73/72dB (Mono/Stereo)

Usable Sensitivity: AM... Loop 500µV/M

Distortion: AM... 1kHz, 50% Mod 0.8%

Distortion (Mono/Stereo): FM... 0.3%/0.4%

Selectivity: AM... ± 10kHz, >25dB

Stereo Separation: FM... 40dB @ 1kHz

Selectivity: FM... ± 400kHz, 65dB

Image Rejection: FM... >80dB

IF Rejection: FM... >100dB

Tuner Output Level: FM... 1kHz, ±100kHz Dev 500mV

Amplifier Specifications

High Instantaneous Current Capability (HCC): ± 45 Amps

When two channels are all you need, make it two ultrawide-bandwidth, high-current channels from the company that invented the stereo receiver. The HK 3475 features six audio inputs, 30 AM/FM station presets, VMAx surround synthesis from stereo sources, three-step dimmable flourescent display, phono preamp, pre-out/main-in jacks, gold-plated inputs and separate subwoofer output. Also included is a multicomponent learning remote control.
