Specifications
- MSRP U.S.
- $319.95 each
- Dimensions (H x W x D)
- 4 x 17-3/8 x 14-1/2
- Usable Sensitivity
- FM... MONO – 11.2dBf
- Quieting Sensitivity
- FM... STEREO – 38.2dBf (50dB)
- Signal-to-Noise Ratio
- FM... MONO – 80dB (@ 65dBf)
- Signal-to-Noise Ratio
- FM... STEREO – 72dB (@ 65dBf)
- Capture Ratio
- FM... 1.5dB
- Alternate Channel Selectivity
- FM... 70dB
- Selectivity
- FM... ADJACENT CHANNEL – 5dB
- IF Rejection
- FM... 80dB
- AM Rejection
- FM... 45dB
- Stereo Separation
- FM... 40dB (1kHz, 65dBf)
- Total Harmonic Distortion
- FM... MONO – 0.15% (1kHz, 65dBf)
- Total Harmonic Distortion
- FM... STEREO – 0.20% (1kHz, 65dBf)
- Sensitivity
- AM... EXTERNAL ANTENNA – 15uV
- Alternate Channel Selectivity
- AM... 45dB
- Image Rejection
- AM... 40dB
- IF Rejection
- AM... 50dB
- Continuous Average Power (FTC) per Channel (stereo mode)
- 25 watts @ 0.09% THD (20Hz – 20kHz, both ch/driven,8 ohms)
- Dynamic Power
- 8 ohms... 35 watts
- Dynamic Power
- 4 ohms... 55 watts
- Dynamic Power
- 2 ohms... 70 watts (IHF 1kHz toneburst)
- High Instantaneous Current Capability (HCC)
- ± 18 Amps
- Negative Feedback
- 20dB
- Power Bandwidth
- <10Hz – 100kHz
- Frequency Response
- 0.5Hz – 150kHz
- Slew Rate
- 90Volts/usec
- Rise Time
- Unmeasurable
- Damping Factor
- 60
- Signal-to-Noise Ratio
- VIDEO & CD – 98dB
- Signal-to-Noise Ratio
- PHONO (MM) – 78dB
- Input Level/Impedance
- PHONO (MM) – 2.2mV/47k ohms, 125pF
- Input Level/Impedance
- VIDEO & CD – 135mV/22k ohms
- Phono Overload
- 130mV
- RIAA Equalization
- ±0.5dB
- Tone Controls
- BASS – ±10dB @ 50Hz
- Tone Controls
- TREBLE – ±10dB @ 10kHz
- Loudness Control
- +10dB/+3dB (-40dB) at 50Hz/10kHz

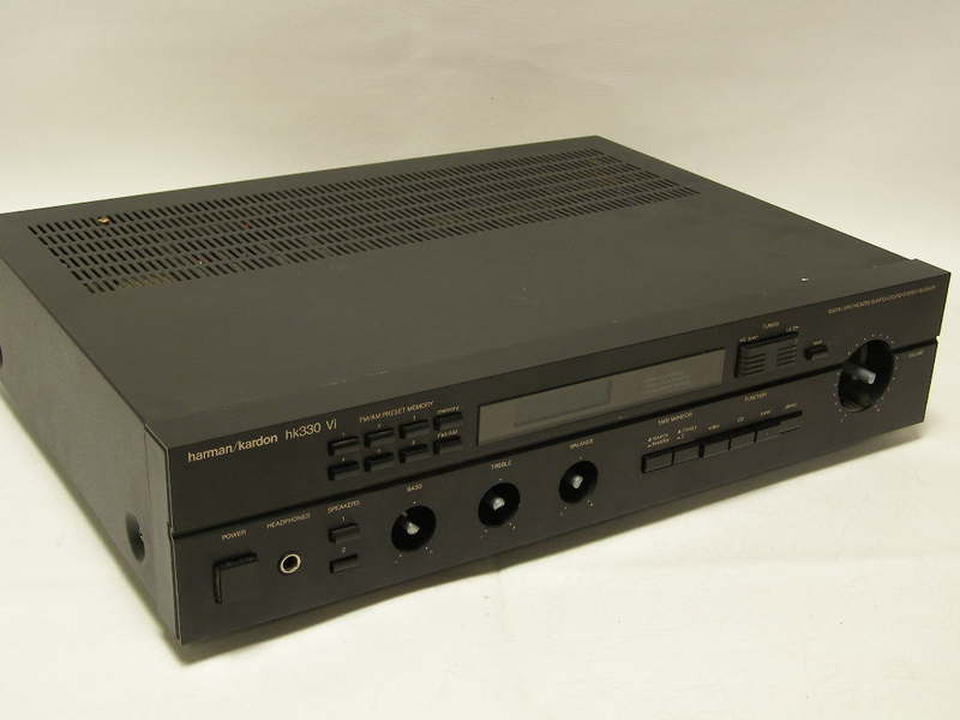

Stereo Receiver (20 watts x 2)
