Specifications
- Power Requirements
- AC12-V/60Hz
- Power Consumption
- 72W idle, 332W maximum (both channels driven)
- MSRP U.S.
- $349.95 each
- Continuous Average Power (FTC) per Channel (stereo mode)
- 65 Watts/ch, 20Hz – 20kHz @ < 0.08% THD, both channels driven into 8 ohms
- Amplifier Power (RMS)
- 95 Watts/ch, 20Hz – 20kHz @ <0.2% THD, both channels into 4 ohms
- Input Level/Impedance
- Linear (high level) 200mV/47k ohms
- Signal-to-Noise Ratio
- 95dB (IHF-A)
- Frequency Response
- 10Hz – 80kHz (±3dB @ 1 watt)
- High Instantaneous Current Capability (HCC)
- ± 42 Amps
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Rise Time
- 16usec
- Slew Rate
- 40V/usec
- Frequency Range
- FM... 87.5 – 108MHz
- Usable Sensitivity
- FM... IHF 1.12uV/12.3dBf
- Signal-to-Noise Ratio
- FM... MONO – 72dB
- Signal-to-Noise Ratio
- FM... STEREO – 70dB
- Distortion
- FM... Mono/Stereo 0.3/0.5%
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ±400kHz, 65dB
- Image Rejection
- FM... >80dB
- IF Rejection
- FM... >100dB
- Tuner Output Level
- FM... 1kHz, ±100kHz Dev 500mV
- Frequency Range
- AM... 520 – 1710kHz
- Signal-to-Noise Ratio
- AM... >40dB
- Usable Sensitivity
- AM... Loop 500uV/M
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Selectivity
- AM... ±10kHz, >25dB

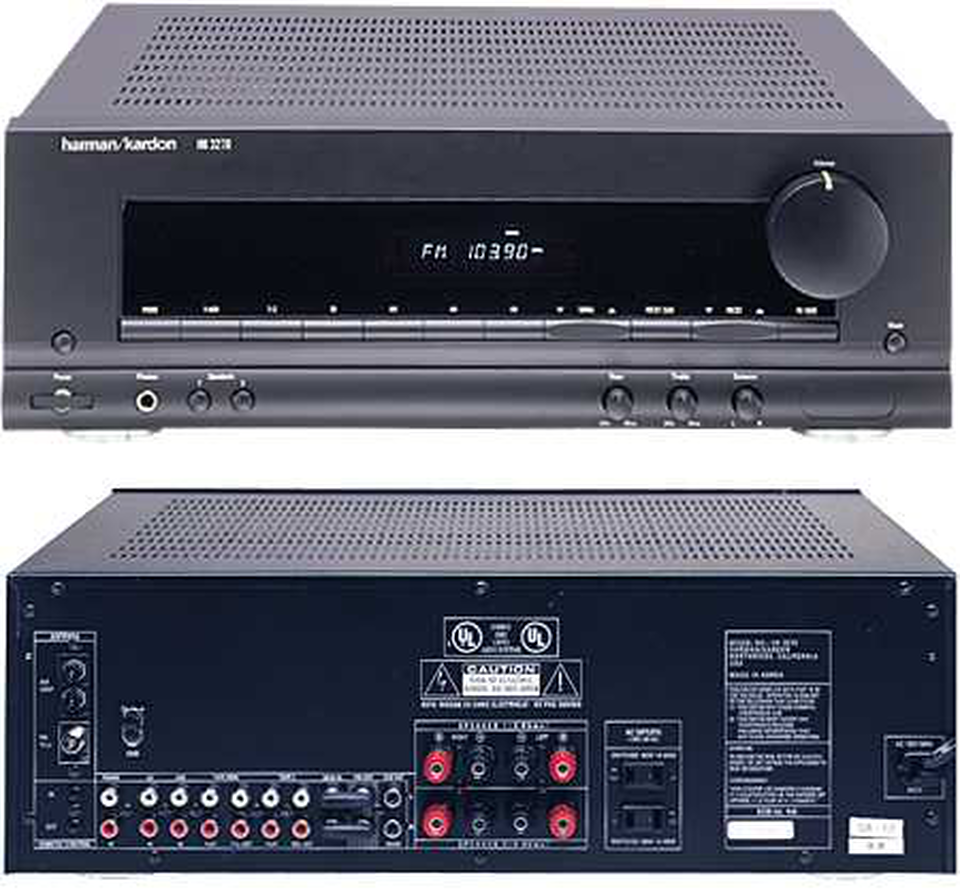

High-performance receiver for stereo enjoyment of music and movies. High-Current Capability Amplifier. Ultrawide-Bandwith-Amplifier Design. High-Quality Phono Input. Preamp Out/Main Amp Input Jacks. Subwoofer Output. A/B Speaker Switching. FM Stereo/AM Tuner with 30 Station Presets. Harman Kardon System Remote.
