AB 2

AB 2

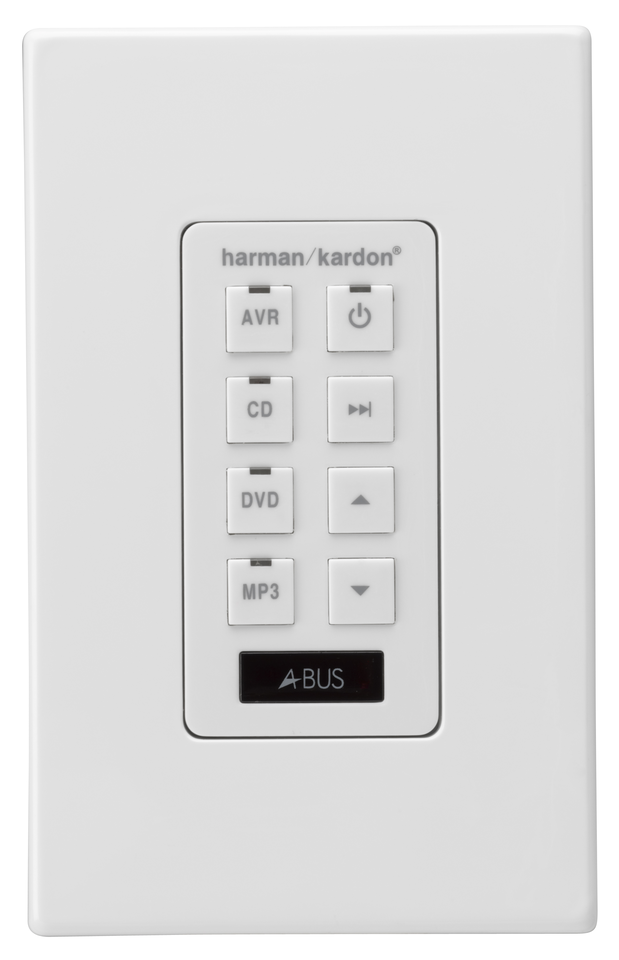

Amplified In-Wall Module With On Board Controls For A-BUS Applications

Vendido desde 2006 hasta 2013

Documents & Downloads

Specifications

System Requirements
Use with A-BUS-equipped audio components via Cat. 5/5e cable
Wire Type Required
Category 5/5e (or better) cable in compliance with any applicable local building code or NEC requirements for in-wall, riser or plenum use
Wiring Protocols
TIA wiring specification for T568A at the A-BUS-equipped-product end; connections at the AB 2 are specified on the AB 2
Connection Terminals
IDC type for Category 5/5e cable; screw terminal type for speaker connections
Speaker Wire
Maximum AWG 14, in compliance with any applicable local building code or NEC requirements for in-wall, riser or plenum use
Nominal Impedance
Suitable for connection to speakers with nominal 6 ohms to 8 ohms impedance
Sensitivity
Optimized for speakers with sensitivity above 88dB
Infrared Compatibility
38kHz and 56kHz, with talk-back
MSRP U.S.
$249.95 each
Weight
0.11kg (0.25 lb)
Dimensions (H x W x D)
108mm x 45mm x 57mm (4-1/4 inch x 1-3/4 inch x 2-1/4 inch)
