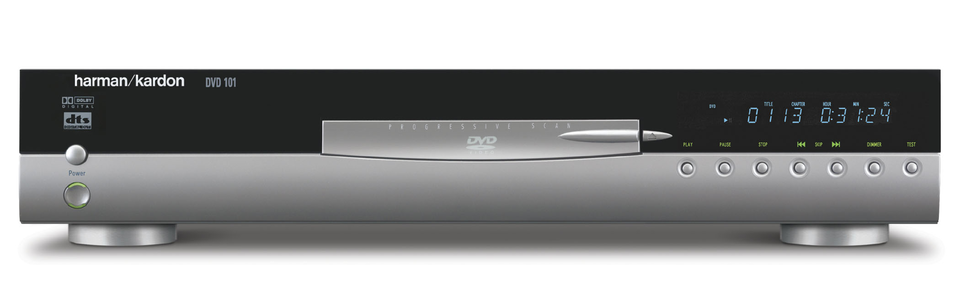

DVD 101

DVD 101

Single Disc DVD Player

Vendido desde 2002 hasta 2003

Producto sucesor: DVD 31
Made in: China

Documents & Downloads

Specifications

Applicable Discs
5-inch (12cm) or 3-inch (8cm) DVD-Movie Standard conforming DVD-R, DVD+R, DVD-RW, DVD+RW, Video CD, CD, CD-R, CD-RW or MP3 discs
Applicable Discs
Audio Formats... Linear PCM, MPEG, Dolby Digital or DTS Audio Discs
Applicable Discs
DVD-Movie discs with Region Code 1 only DVD-Layers...
Applicable Discs
Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Dual Layer
Video Signal System
NTSC
Composite Video Output
1V p-p/75 ohms, sync negative polarity
S-Video Output
Y/Luminance... 1V p-p/75 ohms, sync negative polarity C/Chrominance... 0.286V p-p
Component Video Output
Y... 1V p-p/75 ohms, sync negative polarity
Component Video Output
Pr... 0.7V p-p/75 ohms
Component Video Output
Pb... 0.7V p-p/75 ohms
Analog Audio Output
2V rms max
Signal-to-Noise Ratio
113dB (A-weighted)
Dynamic Range
DVD... 100dB (18-bit)/105dB (20-bit)
Dynamic Range
CD/DVD... 96dB (16-bit)
Wow and Flutter
Below Measurable Limits
Power Requirements
120VAC/60Hz
Power Consumption
12 Watts (on)/20 Watts (Max)
MSRP U.S.
$349.95 each
Weight
7.5 lb (3.4kg)
Dimensions (H x W x D)
3-7/16 inch x 17-5/16 inch x 12 inch (87mm x 440mm x 305mm)
Frequency Response
DVD (Linear PCM)... 2Hz – 22kHz +0/–0.5dB (48kHz sampling)
Frequency Response
DVD (Linear PCM)... 2Hz – 44kHz +0/–0.5dB (96kHz sampling)
Frequency Response
CD... 2Hz – 20kHz +0/–0.5dB
Total Harmonic Distortion
DVD/CD... 0.0025% @ 1kHz

DVD is the fastest growing product in the history of consumer electronics, and the DVD 101 is one reason why. It offers progressive scan playback with full reconstruction of the original film image to create stunning images that maximize the benefits of today's advanced digital video displays. Of course, it plays not only DVDs, but also CDs, CD-Rs, CD-RWs, Video CDs and even MP3 discs with clarity that rivals the original performance. Complete programming options and a full-featured, backlit remote control make the DVD 101 easy to use. It even includes a built-in test signal which allows you to quickly adjust your video display without the need for additional discs or equipment.
