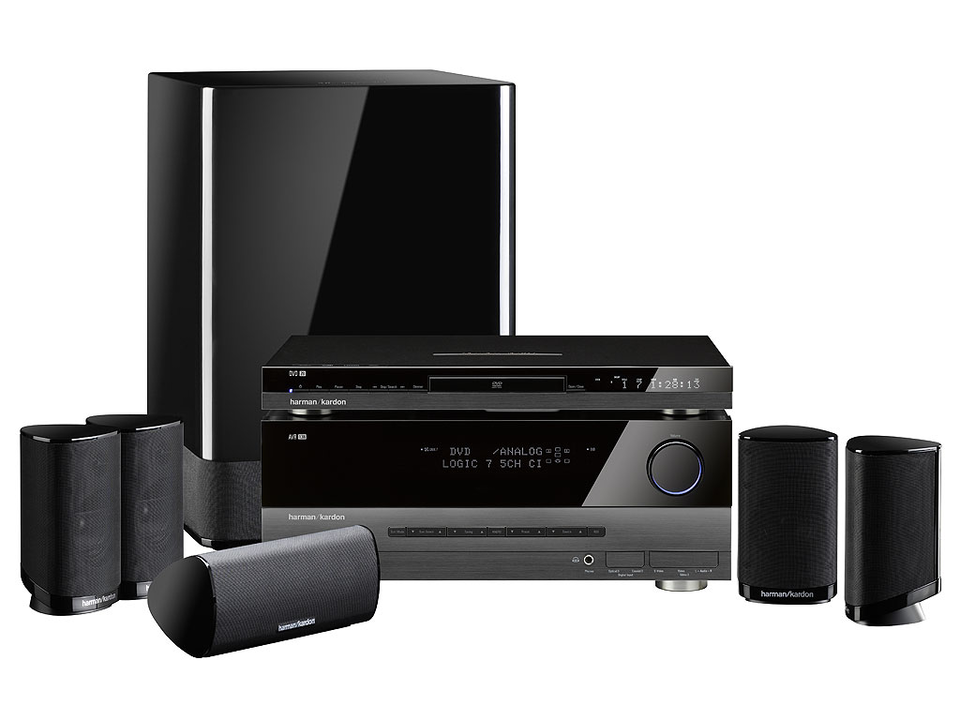

CINEFORTUNE 7

CINEFORTUNE 7

AVR 138 – DVD 28 – HKTS 7BQ

Specifications

Type
5.1-Channel AVR
Continuous Average Power (FTC) per Channel (stereo mode)
50 x 2 / 20Hz – 20kHz, 8 ohms, both channels driven
Continuous Average Power (FTC) per Channel (surround modes)
40 x 5 / 20Hz – 20kHz, 8 ohms, all channels driven
Amplifier Type
High-Current ±25 amps
Total Harmonic Distortion
0.07% @ 8 ohms
Bandwidth
20Hz – 20kHz
Bandwidth @ 1W (-3dB)
10Hz – 130kHz
Signal-to-Noise Ratio
100dB (IHF-A)
Power Supply
Independent front & rear
Surround Modes
Dolby Digital, Pro Logic II, Dolby Virtual Speaker, DTS 5.1, DTS-ES 6.1 Discrete & Matrix, DTS 96/24, DTS Neo...6, Logic 7
Headphone Modes
2-Channel, Dolby HP
EzSet
EzSet/EQ
S-Video/Component Video Inputs
4
Analog Audio Inputs
6
Digital Audio Inputs
Rear panel 2 coax / 2 optical
Digital Audio Inputs
Front panel 1 coax / 1 optical
Digital Audio Outputs (Coax/Optical)
Rear panel 1/0
Digital Input Polling
All video inputs
Direct Audio Inputs
5.1
HDMI
1.3a Switching
HDMI
Inputs... 3
HDMI
Output... 1
Preamp Outputs
Subwoofer
Component Video Inputs (Assignable)
2 @ 100MHz
On-Screen Display
Yes
Input Titling
All inputs
DSP Processor
Cirrus CS 49510
Output DACs
192kHz/24-bit
A/V Sync Delay
80mS
Bass Management
Triple crossover
System Remote
6-Device preprogrammed
Discrete Remote On/Off Codes
Yes
Speaker Terminals
Color-coded binding posts
Weight
11.1kg
Dimensions (H x W x D)
151mm x 440mm x 351mm
Dimensions (H x W x D)
DVD PLAYER... 50 x 440 x 285 mm
Video Formats
PAL/NTSC
Input Level/Impedance
1Vp-p/75 ohms
Output Level/Impedance
1Vp-p/75 ohms
Video Frequency Response
10Hz–8MHz (–3dB)
Frequency Range
FM... 87.5–108MHz
Usable Sensitivity
FM... IHF 1.3 μV/13.2dBf
Signal-to-Noise Ratio
FM Mono/Stereo... 70/65dB (DIN)
Distortion
FM Mono/Stereo... 0.15/0.3%
Stereo Separation
FM... 35dB @ 1kHz
Selectivity
FM... ±400kHz... 70dB
Image Rejection
FM... 80dB
IF Rejection
FM... 90dB
Frequency Range
AM... 522–1620kHz
Signal-to-Noise Ratio
AM... 45dB
Usable Sensitivity Loop
AM... 500μV
Distortion
AM... 1kHz, 50% Mod... 0.8%
Selectivity
AM... ±10kHz... 30dB
Applicable Discs
Audio formats... DVD-Audio MLP lossless, Linear PCM, MPEG, Windows Media 9, Dolby Digital or DTS Audio discs
Applicable Discs
Disc formats... 5 inch (12 cm) or 3 inch (8 cm) DVD Video, DVD-Audio, Standard conforming DVD+RW, DVD+R, DVD-R, DVD-RW, DivX, VCD, CD, CD-R, MP3, WMA, JPEG or CD-RW discs
Applicable Discs
DVD-Layers... Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Single Layer, Dual Side/Dual Layer
Applicable Discs
Region code... DVD Movie disc with Code 2 or 0 only.
Applicable Discs
Still-image format... JPEG
Video Signal System
DVD... PAL /NTSC
HDMI Output
DVD... Video... 576p, 720p, 1080i
HDMI Output
HDMI Version 1.0-compliant
HDMI Output
HDCP Version 1.1-compliant
Composite Video Output
DVD... 1 Vp-p/75 ohms, sync negative polarity
S-Video Output
DVD... Y/Luminance... 1 Vp-p/75 ohms, sync negative polarity
Component Video Output
DVD... Y... 1 Vp-p/75 ohms, sync negative polarity, Cr... 0.7 Vp-p/75 ohms, Cb... 0.7 Vp-p/75 ohms
Analog Audio Output
DVD... 2 Vrms max
Frequency Response
DVD (Linear PCM)... 2Hz – 22kHz +0/–0.5dB (48kHz sampling)
Frequency Response
DVD (Linear PCM)... 2Hz – 44kHz +0/–0.5dB (96kHz sampling)
Frequency Response
CD... 2Hz – 20kHz +0/–0.5dB
Signal-to-Noise Ratio
DVD... 105 dB (A-weighted)
Dynamic Range
DVD... 100dB (18 Bit) / 105dB (20 Bit)
Dynamic Range
CD/DVD... 96dB (16 Bit)
Total Harmonic Distortion
DVD/CD... 0.0025 %
Wow and Flutter
DVD... Below Measurable Limits
Voltage Input
DVD... 100Hz – 240 V/50 – 60Hz
Power Consumption
DVD... 1 Watts (Standby)/13 Watts (Max)
