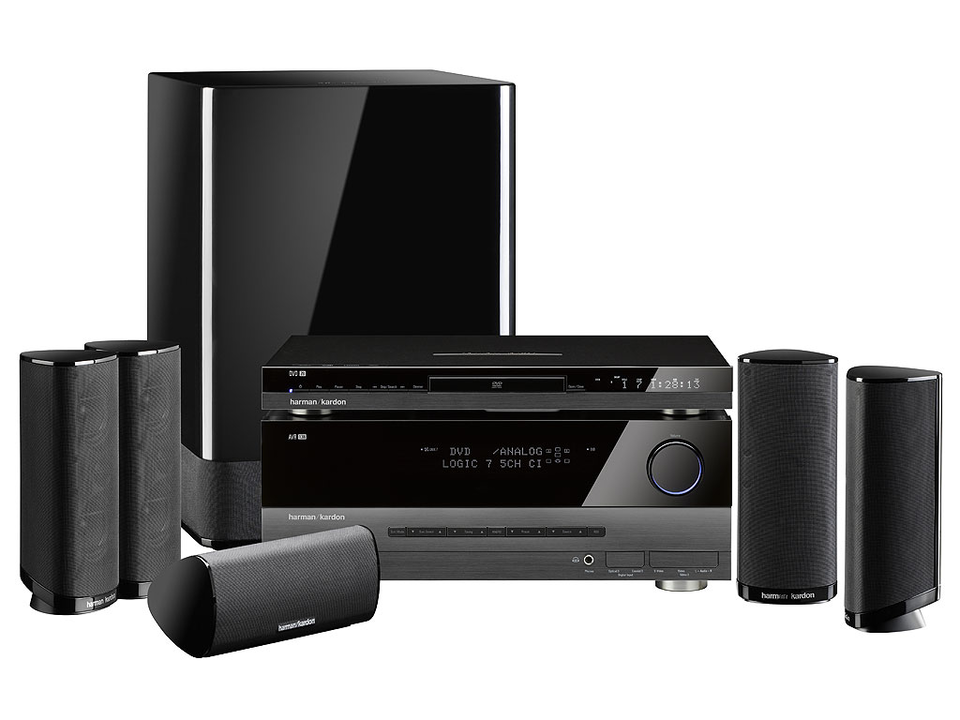

CINEFORTUNE 11

CINEFORTUNE 11

AVR 138 – DVD 28 – HKTS 11BQ

Specifications

Dimensions (H x W x D)
DVD PLAYER... 50 x 440 x 285 mm
Video Formats
PAL/NTSC
Input Level/Impedance
1Vp-p/75 ohms
Output Level/Impedance
1Vp-p/75 ohms
Video Frequency Response
10Hz–8MHz (–3dB)
Frequency Range
FM... 87.5–108MHz
Usable Sensitivity
FM... IHF 1.3 μV/13.2dBf
Signal-to-Noise Ratio
FM Mono/Stereo... 70/65dB (DIN)
Distortion
FM Mono/Stereo... 0.15/0.3%
Stereo Separation
FM... 35dB @ 1kHz
Selectivity
FM... ±400kHz... 70dB
Image Rejection
FM... 80dB
IF Rejection
FM... 90dB
Frequency Range
AM... 522–1620kHz
Signal-to-Noise Ratio
AM... 45dB
Usable Sensitivity Loop
AM... 500μV
Distortion
AM... 1kHz, 50% Mod... 0.8%
Selectivity
AM... ±10kHz... 30dB
Applicable Discs
Audio formats... DVD-Audio MLP lossless, Linear PCM, MPEG, Windows Media 9, Dolby Digital or DTS Audio discs
Applicable Discs
Disc formats... 5 inch (12 cm) or 3 inch (8 cm) DVD Video, DVD-Audio, Standard conforming DVD+RW, DVD+R, DVD-R, DVD-RW, DivX, VCD, CD, CD-R, MP3, WMA, JPEG or CD-RW discs
Applicable Discs
DVD-Layers... Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Single Layer, Dual Side/Dual Layer
Applicable Discs
Region code... DVD Movie disc with Code 2 or 0 only.
Applicable Discs
Still-image format... JPEG
Video Signal System
DVD... PAL /NTSC
HDMI Output
DVD... Video... 576p, 720p, 1080i
HDMI Output
HDMI Version 1.0-compliant
HDMI Output
HDCP Version 1.1-compliant
Composite Video Output
DVD... 1 Vp-p/75 ohms, sync negative polarity
S-Video Output
DVD... Y/Luminance... 1 Vp-p/75 ohms, sync negative polarity
Component Video Output
DVD... Y... 1 Vp-p/75 ohms, sync negative polarity, Cr... 0.7 Vp-p/75 ohms, Cb... 0.7 Vp-p/75 ohms
Analog Audio Output
DVD... 2 Vrms max
Frequency Response
DVD (Linear PCM)... 2Hz – 22kHz +0/–0.5dB (48kHz sampling)
Frequency Response
DVD (Linear PCM)... 2Hz – 44kHz +0/–0.5dB (96kHz sampling)
Frequency Response
CD... 2Hz – 20kHz +0/–0.5dB
Signal-to-Noise Ratio
DVD... 105 dB (A-weighted)
Dynamic Range
DVD... 100dB (18 Bit) / 105dB (20 Bit)
Dynamic Range
CD/DVD... 96dB (16 Bit)
Total Harmonic Distortion
DVD/CD... 0.0025 %
Wow and Flutter
DVD... Below Measurable Limits
Voltage Input
DVD... 100Hz – 240 V/50 – 60Hz
Power Consumption
DVD... 1 Watts (Standby)/13 Watts (Max)
