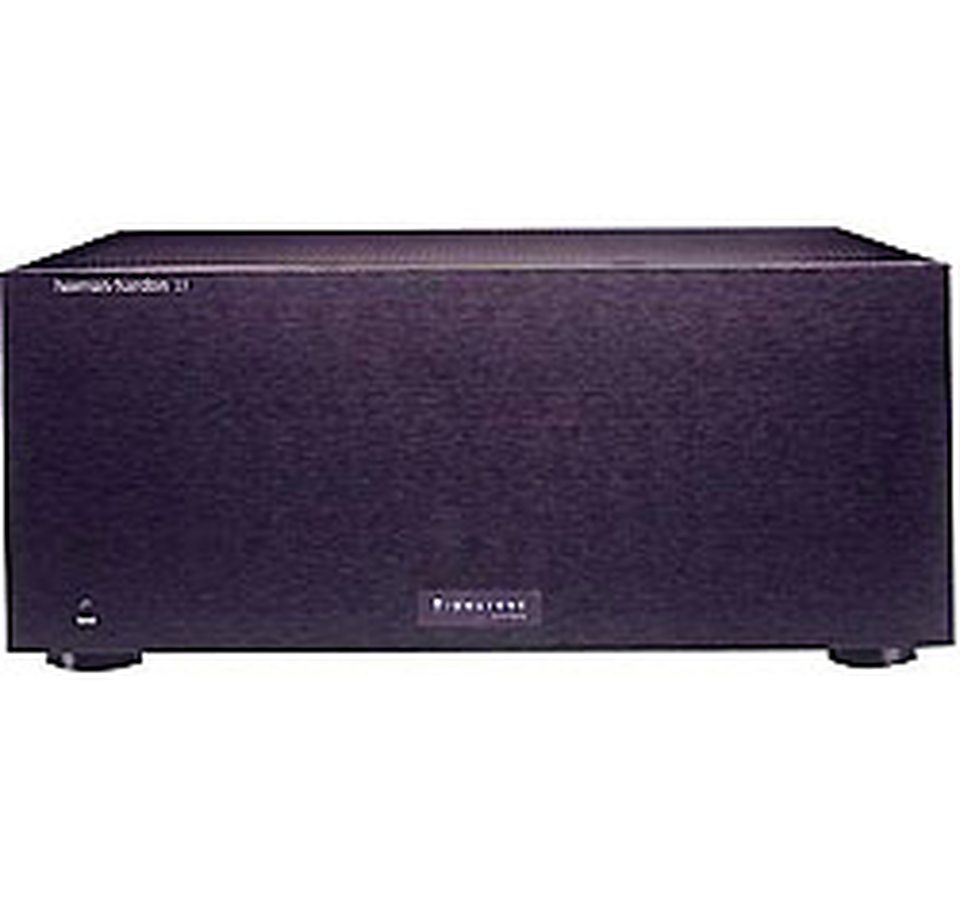

SIGNATURE 2.1

Amplifier Power (RMS)

5 x 100 Watts @ 8 ohms (20Hz – 20kHz, < 0.03% THD, all channels driven)

Amplifier Power (RMS)

5 x 150 Watts @ 4 ohms (20Hz – 20kHz, < 0.03% THD, All Channels Driven)

Frequency Response

<1Hz – 170kHz, +0dB/-2dB

Power Bandwidth

<1Hz ->100kHz

Total Harmonic Distortion

<0.03% @ rated output

Crosstalk

< -87dBr between any two channels @ Maximum Output

Negative Feedback

<25dB

Input Impedance

33K ohms

Remote Trigger Voltage

20K ohms

Power Requirements

120V AC 50Hz – 60Hz

Power Consumption

950W Maximum

MSRP U.S.

$1500 each

Dimensions (H x W x D)

Height 7-1/2 inch (191mm) Width 17-1/4 inch (438mm) Depth 15-1/4 (387mm) Weight 47lbs (21.4kg) Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis. All features and specifications are subject to change without notice.

High Instantaneous Current Capability (HCC)

± 100 Amps
