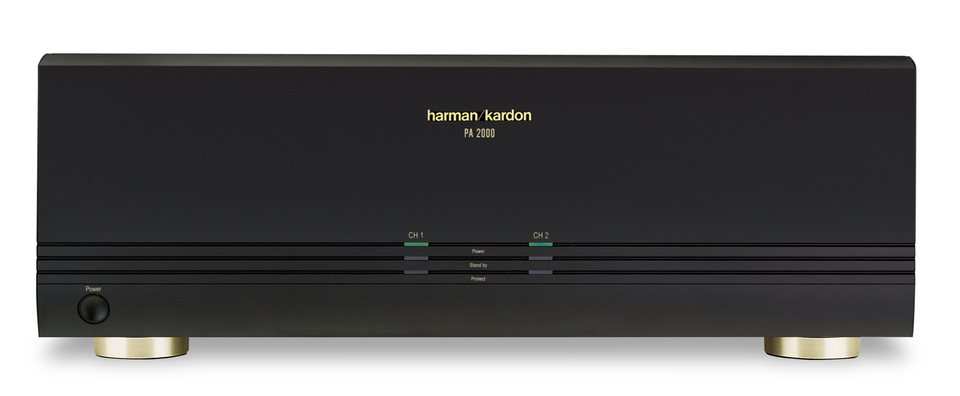

PA 2000

PA 2000

4-Channel Power Amplifier (45 watts x 4 | 100 watts x 2)

Vendido desde 2000 hasta 2004

Made in: South Korea

Documents & Downloads

Specifications

Power Output, Normal Mode
4 x 45 Watts @ 8 ohms, 20Hz – 20kHz, <0.07% THD, all channels driven
Power Output, Bridged Mode
2 x 100 Watts @ 8 ohms, 20Hz – 20kHz, <0.07% THD, all channels driven
Frequency Response
<1Hz – 170kHz (-3dB @ 1 watt)
Signal-to-Noise Ratio
110dB @ Rated power 45 watts
Total Harmonic Distortion
Less than 0.07% @ rated output
Power Bandwidth
<1Hz – 100kHz
Input Impedance
47k ohms
Input Sensitivity
1 Volt for rated output
Remote Trigger Voltage
3 – 30 Volts AC/DC
Remote Trigger Impedance
20k ohms
Power Requirements
AC 120V/50 – 60Hz
Power Consumption
260 Watts maximum
MSRP U.S.
$599.95 each
Weight
25.3 lb (11.4kg)
Dimensions (H x W x D)
6-1/8 inch x 17-3/8 inch x 15-3/4 inch (155mm x 442mm x 400mm)
High Instantaneous Current Capability (HCC)
± 45 Amps

Add remote rooms or additional channels to an existing surround system with this high-current, bridgeable amplifier. Fan-free for ultraquiet operation, the PA 2000's design is optimized for the requirements of the long signal paths found in multiroom systems.
