Product Specifications
- Power Requirements
- AC 120V/60Hz
- Power Consumption
- 78 Watts idle, 694 Watts maximum (2 channels driven)
- MSRP U.S.
- $999.95 each
- Continuous Average Power (FTC) per Channel (stereo mode)
- 80 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
- Front L & R Channels
- 70 Watts per channel @ < 0.07% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 70 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels
- 70 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 95dB (IHF-A)
- Analog Source Decoding
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 100kHz (+0/-3dB @ 1 watt)
- High Instantaneous Current Capability (HCC)
- ± 45 Amps
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Rise Time
- 16 µsec
- Slew Rate
- 40V/µsec
- Surround Modes
- Dolby Digital, DTS surround, Harman's Logic 7, VMAx & EzSet
- Digital Inputs (coaxial/optical)
- 6
- Digital Output
- 2
- Width
- 17.3 inch (440mm)
- Height
- 6.5 inch (165mm)
- Depth
- 17.1 inch (435mm)
- Weight
- 35 lb (15.9kg)
- Dimensions (H x W x D)
- 6.5 inch x 17.3 inch x 17.1 inch (165mm x 440mm x 435mm)
- Television Format
- NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response
- 10Hz – 8MHz (-3dB)
- Frequency Range
- AM... 520 – 1710kHz
- Frequency Range
- FM... 87.5 – 108MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3 µV/13.2dBf
- Signal-to-Noise Ratio
- FM... 70/68 dBA (Mono/Stereo)
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion (Mono/Stereo)
- FM... 0.2%/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- Tuner Output Level
- FM... 1kHz, ±75kHz Dev 500mV

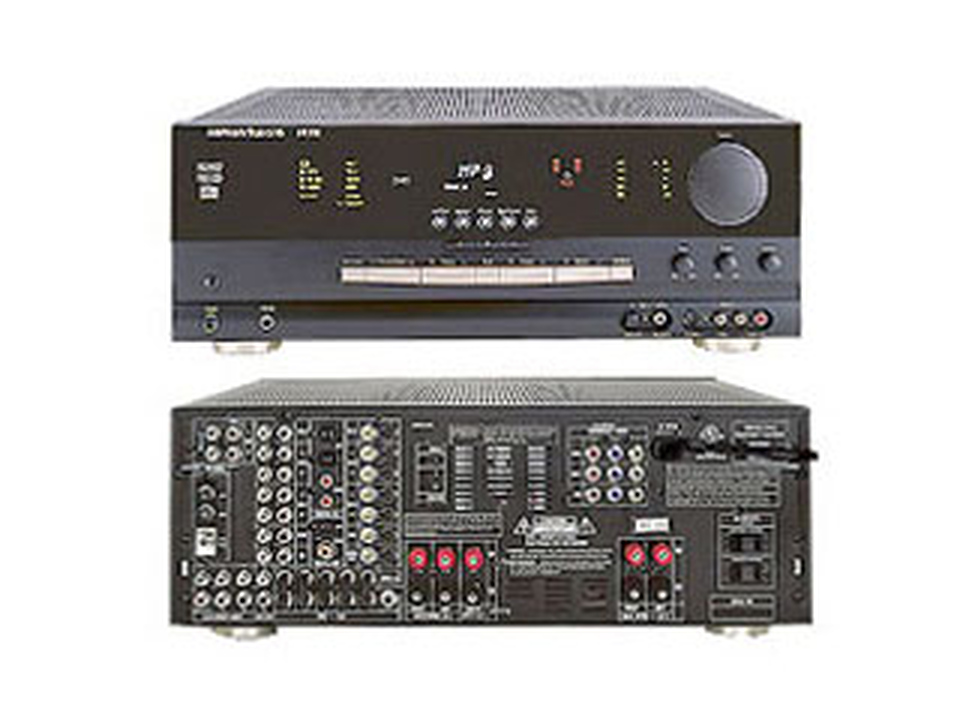

The AVR 510 delivers the performance you expect from Harman Kardon without sacrificing ease of use. The patented EzSet; remote control takes the guesswork out of speaker setup, and sophisticated surround processing technologies deliver a variety of listening options. 192kHz/24-bit DACs insure compatibility with the latest program sources, while front-panel digital inputs, one of which can be switched to an output, deliver maximum flexibility. Component video, S-Video and multiroom/multisource connections make the AVR 510 one of the most versatile models ever offered by Harman Kardon.
FAQs & How-Tos
-
The remote is only capable of operating one device at a time (unless you have programmed advanced functions such as Volume, Channel or Transport control Punch-Through). When you press the Source Selector to operate your other product, such as the DVD player, the remote cannot control any other product, including the AVR, until you press the AVR Button again. To avoid your problem in the future, always press the AVR Button or appropriate Source Selector before you enter any command.Was this helpful? Thank you for your feedback!
