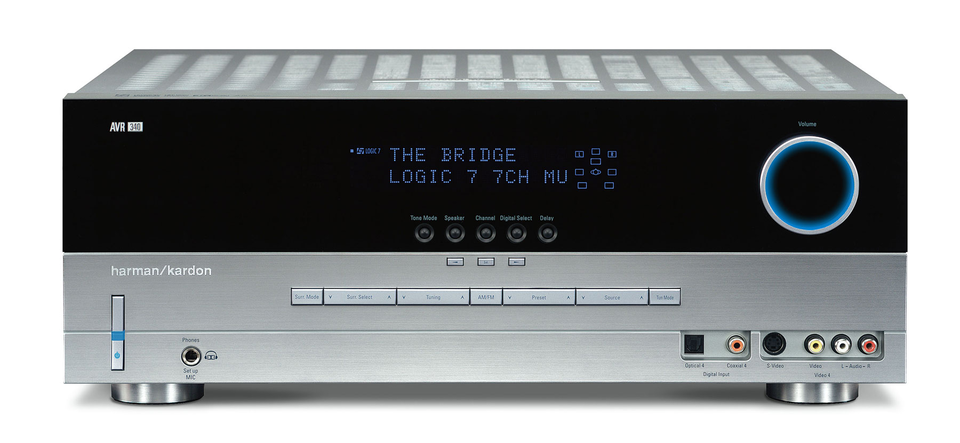

AVR 340
Audio/Video Receiver With Dolby Digital & DTS (70 watts x 2 | 55 watts x 7)
Sold from 2005 until 2006
| Predecessor Product: | AVR 335 |
|---|---|
| Made in: | China |
Documents & Downloads
Product Specifications
- Power Requirements
- AC 220 – 240V / 50Hz
- Power Consumption
- 118W idle, 890W maximum (7 channels driven)
- Digital Inputs (coaxial/optical)
- 3/3 on rear; 1/1 on front
- Analog Inputs
- 1 A/V on front panel
- Analog Inputs
- 2 audio-only
- Analog Inputs
- 4 A/V on rear panel
- Analog Inputs
- 6-/8-channel input
- Analog Inputs
- tuner
- On-Screen Display
- Yes, with component video
- Multizone Capability
- Audio; A-BUSREADY; surround back channels assignable to remote zone; ZoneII remote
- Auto Setup
- EzSet/EQ room equalization
- Remote Control
- eight-device, programmable remote
- MSRP U.S.
- $899.95 each
- # of Amplifier Channels
- 7
- Continuous Average Power (FTC) per Channel (stereo mode)
- 70 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
- Front L & R Channels
- 55 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 55 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels (L & R Side, L & R Back)
- 55 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 100dB (IHF-A)
- Surround System Adjacent Channel Separation:
- Dolby Pro Logic I and II
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 130kHz (+0/-3dB @ 1 watt)
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Slew Rate
- 40V/µsec
- Width
- 17.3 inch (440mm)
- Height
- 5.9 inch (150mm)
- Depth
- 13.8 inch (350mm)
- Weight
- 24.4 lb (11.1kg)
- Dimensions:
- Television Format
- NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response:
- Composite and S-Video
- 10Hz – 8MHz (–3dB)
- Component Video
- 10Hz – 50MHz (–3dB)
- Frequency Range
- AM... 520 – 1720kHz
- Frequency Range
- FM... 87.5 – 108.0MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Signal-to-Noise Ratio
- FM... Mono/Stereo 70/68dB
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion
- FM... Mono/Stereo 0.2/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- Amplifier Power (RMS)
- 55 x 7 @ 8 ohms (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)
- High Instantaneous Current Capability (HCC)
- ± 35 Amps
Tune up your room; no tools required. Thanks to EzSet/EQ;, the AVR 340 not only establishes all system speaker parameters, it measures how the speakers inchsound inch in your room and equalizes their output to compensate for any room-based acoustic situation. Add a wide range of convenience features such as video cross conversion, component output for simplified connectivity, A-BUSREADY multiroom capability, and compatibility with The Bridge;, and you'll be enjoying movies and music quicker than ever.
FAQs & How-Tos
-
This receiver has a feature called "A/V Sync Delay" that allows you to manually set dissimilar video and audio synchronization that may occur with certain types of Plasma and HDTV's. The instruction for this setting can be found in your owner's manual in the section "Delay Adjustments" or "Delay Settings".Was this helpful? Thank you for your feedback!
-
The remote is only capable of operating one device at a time (unless you have programmed advanced functions such as Volume, Channel or Transport control Punch-Through). When you press the Source Selector to operate your other product, such as the DVD player, the remote cannot control any other product, including the AVR, until you press the AVR Button again. To avoid your problem in the future, always press the AVR Button or appropriate Source Selector before you enter any command.Was this helpful? Thank you for your feedback!
