Product Specifications
- Power Requirements
- AC 120V/60Hz
- Shipping Weight (System, Accessories, Packing)
- 35.2 lb (16kg)
- Power Consumption
- 118W idle, 890W maximum (7 channels driven)
- MSRP U.S.
- $799.95 each
- Digital Inputs (coaxial/optical)
- 2/2 on Rear; 1/1 on front
- Analog Inputs
- 1 A/V on front panel
- Analog Inputs
- 2 audio-only
- Analog Inputs
- 4 A/V on rear panel
- Analog Inputs
- 6-/8-channel input
- Analog Inputs
- tuner
- On-Screen Display
- Yes
- Multizone Capability
- Audio; surround back channels assignable to remote zone; Zone II remote
- EzSet
- Yes
- Remote Control
- Backlit, eight-device, programmable remote
- Dolby Digital
- 55dB
- # of Amplifier Channels
- 7
- DTS
- 55dB
- Continuous Average Power (FTC) per Channel (stereo mode)
- 65 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
- Frequency Response
- 10Hz – 130kHz (+0/-3dB @ 1 watt)
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Slew Rate
- 40V/µsec
- Front L & R Channels
- 55 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 55 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels (L & R Side, L & R Back)
- 55 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 100dB (IHF-A)
- Surround System Adjacent Channel Separation:
- Dolby Pro Logic I and II
- 40dB
- Weight
- 30.6 lb (13.9kg)
- Dimensions:
- Carton Dimensions
- 21.5 inches x 9.9 inches x 17.9 inches (545mm x 251mm x 455mm)
- Width
- 17.3 inches (440mm)
- Height
- 6.6 inches (168mm)
- Depth
- 15 inches (381mm)
- Television Format
- NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response:
- Composite and S-Video
- 10Hz–8MHz (–3dB)
- Component Video
- 10Hz–30MHz (–3dB)
- Frequency Range
- AM... 520–1720kHz
- Frequency Range
- FM... 87.5–108.0MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Signal-to-Noise Ratio
- FM... Mono/Stereo 70/68dB
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion
- FM... Mono/Stereo 0.2/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- High Instantaneous Current Capability (HCC)
- ± 35 Amps
- Amplifier Power (RMS)
- 55 x 7 @ 8 ohms, (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)

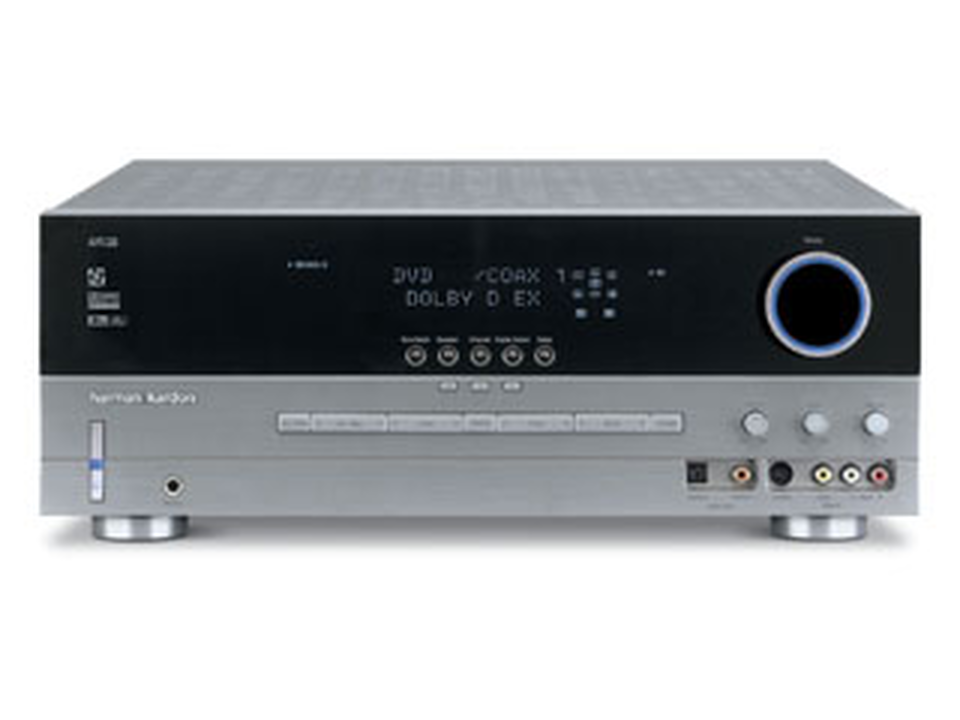

High performance at a highly attractive price. The AVR 330 features a seven-channel, high-current amplifier with power enough for the most demanding digital soundtracks, all of the popular surround sound modes, component video switching, an EzSet remote and a complete multiroom system with a standard Zone II remote. Plus front-panel inputs for analog and digital sources, as well as composite and S-Video jacks, for quick connections to digital cameras, camcorders or video games.
FAQs & How-Tos
2 results
-
This receiver has a feature called "A/V Sync Delay" that allows you to manually set dissimilar video and audio synchronization that may occur with certain types of Plasma and HDTV's. The instruction for this setting can be found in your owner's manual in the section "Delay Adjustments" or "Delay Settings".Was this helpful? Thank you for your feedback!
-
The remote is only capable of operating one device at a time (unless you have programmed advanced functions such as Volume, Channel or Transport control Punch-Through). When you press the Source Selector to operate your other product, such as the DVD player, the remote cannot control any other product, including the AVR, until you press the AVR Button again. To avoid your problem in the future, always press the AVR Button or appropriate Source Selector before you enter any command.Was this helpful? Thank you for your feedback!
