Documents & Downloads
Product Specifications
- Power Requirements
- AC 120V/60Hz
- Power Consumption
- 72 Watts idle, 580 Watts maximum (2 channels driven)
- MSRP U.S.
- $799.95 each
- Continuous Average Power (FTC) per Channel (stereo mode)
- 60 Watts per channel, 20Hz – 20kHz @ <0.07% THD, both channels driven into 8 ohms
- Front L & R Channels
- 50 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 50 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels
- 50 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 95dB (IHF-A)
- Analog Source Decoding
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 100kHz (+0/-3dB @ 1 watt)
- High Instantaneous Current Capability (HCC)
- ± 35 Amps
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Rise Time
- 16 µsec
- Slew Rate
- 40V/µsec
- Surround Modes
- Dolby Digital, DTS surround, Harman's Logic 7 and VMAx
- Digital Inputs (coaxial/optical)
- 6
- Digital Output
- 3
- Width
- 17.3 inch (440mm)
- Height
- 6.5 inch (165mm)
- Depth
- 17.1 inch (435mm)
- Weight
- 32 lb (14.5kg)
- Dimensions (H x W x D)
- 6.5 inch x 17.3 inch x 17.1 inch (165mm x 440mm x 435mm)
- Television Format
- NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response
- 10Hz – 8MHz (-3dB)
- Frequency Range
- AM... 520 – 1710kHz
- Frequency Range
- FM... 87.5 – 108MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3 µV/13.2 dBf
- Signal-to-Noise Ratio
- FM... 70/68 dBA (Mono/Stereo)
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion (Mono/Stereo)
- FM... 0.2%/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- Tuner Output Level
- FM... 1kHz, ±75kHz Dev 500mV

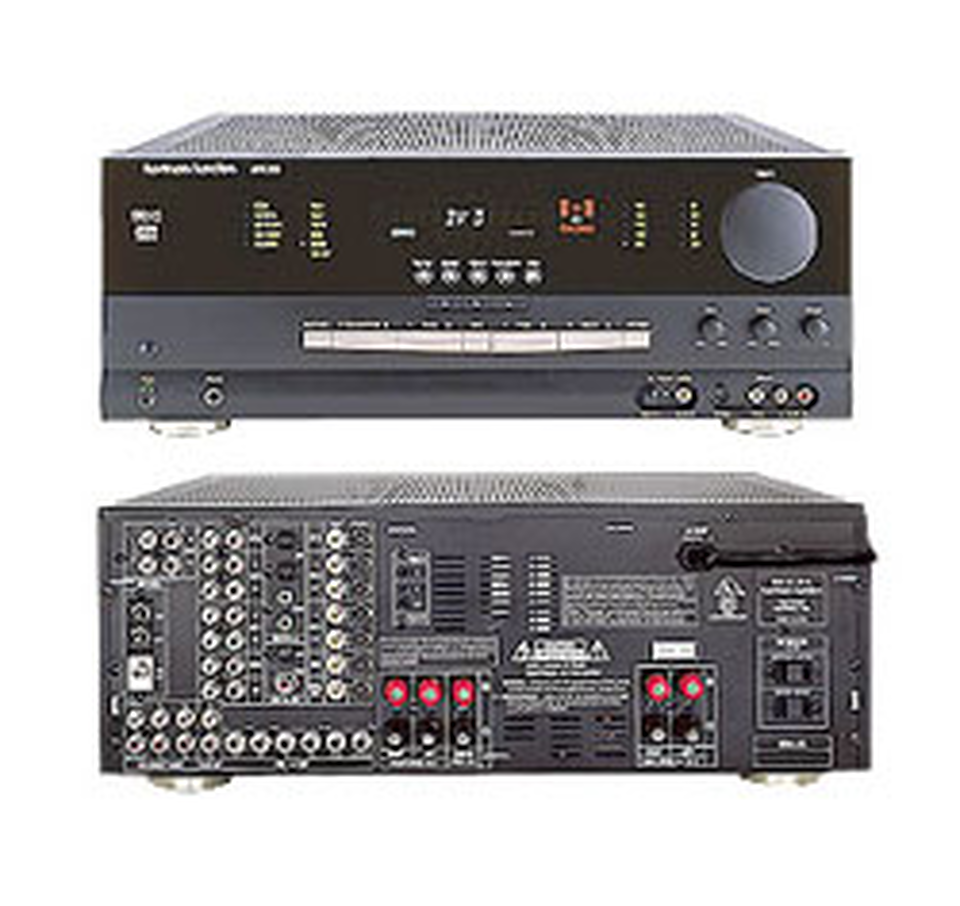

The AVR 310 was designed with the critical listener in mind. It thoughtfully includes the exclusive EzSet; remote, which allows you to automatically set speaker output levels with the touch of a button. The AVR 310 is ready for the digital era, with 192kHz/24-bit D/A converters, and 6 digital inputs, including 2 on the front panel, one of which can be switched to an output. Other sophisticated touches include Logic 7, VMAx and MP3 processing; an advanced on-screen menu system; and multiroom/multisource audio, along with a Zone II remote. Factory remanufactured.
FAQs & How-Tos
-
The remote is only capable of operating one device at a time (unless you have programmed advanced functions such as Volume, Channel or Transport control Punch-Through). When you press the Source Selector to operate your other product, such as the DVD player, the remote cannot control any other product, including the AVR, until you press the AVR Button again. To avoid your problem in the future, always press the AVR Button or appropriate Source Selector before you enter any command.Was this helpful? Thank you for your feedback!
