Product Specifications
- Power Requirements
- AC 120V/60Hz
- Power Consumption
- 3W standby, 200W maximum (both channels driven)
- Digital Inputs (coaxial/optical)
- None
- Analog Inputs
- 1 A/V on front panel
- Analog Inputs
- 3 A/V on rear panel
- Analog Inputs
- 3 audio-only
- Analog Inputs
- tuner
- On-Screen Display
- No
- Multizone Capability
- Speaker A/B switch
- Remote Control
- Five-device system remote
- Shipping Weight (System, Accessories, Packing)
- 25.1 lb (11.41kg)
- MSRP U.S.
- $349.95 each
- # of Amplifier Channels
- 2
- Stereo Mode:
- Continuous Average Power (FTC) per Channel
- 80 Watts per channel, 20Hz – 20kHz @ <0.07% THD, both channels driven into 8 ohms 100 Watts per channel, 20Hz – 20kHz @ <0.2% THD, both channels driven into 4 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 95dB (IHF-A)
- Frequency Response
- 10Hz – 110kHz (+0/-3dB @ 1 watt)
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Rise Time
- 16 µsec
- Slew Rate
- 40V/µsec
- Width
- 17.4 inches (442mm)
- Height
- 6.6 inches (168mm)
- Depth
- 15 inches (382mm)
- Weight
- 20.9 lb (9.48kg)
- Dimensions:
- Carton Dimensions
- 21.5 inches x 9.9 inches x 17.9 inches (545mm x 251mm x 455mm)
- Television Format
- NTSC/PAL/SECAM
- Signal Format System
- Composite
- Input Level/Impedance
- 1V p-p/75 ohms, unbalanced
- Sync Polarity
- Negative
- Output Level/Impedance
- 1V/75 ohms, unbalanced
- Video Frequency Response
- 10Hz – 10MHz
- Frequency Range
- AM... 520 – 1710kHz
- Frequency Range
- FM... 87.5 – 108MHz
- Signal-to-Noise Ratio
- AM... >40dB
- Usable Sensitivity
- FM... IHF 1.12µV/13.5dBf
- Signal-to-Noise Ratio
- FM... Mono/Stereo 73/72dB
- Usable Sensitivity
- AM... Loop 500µV/M
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion
- FM... Mono/Stereo 0.3/0.4%
- Selectivity
- AM... ± 10kHz, >25dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 65dB
- Image Rejection
- FM... >80dB
- IF Rejection
- FM... >100dB
- Tuner Output Level
- FM... 1kHz, ±100kHz, Dev 500mV
- Amplifier Power (RMS)
- 80 x 2 @ 8 ohms, (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)
- High Instantaneous Current Capability (HCC)
- ± 42 Amps

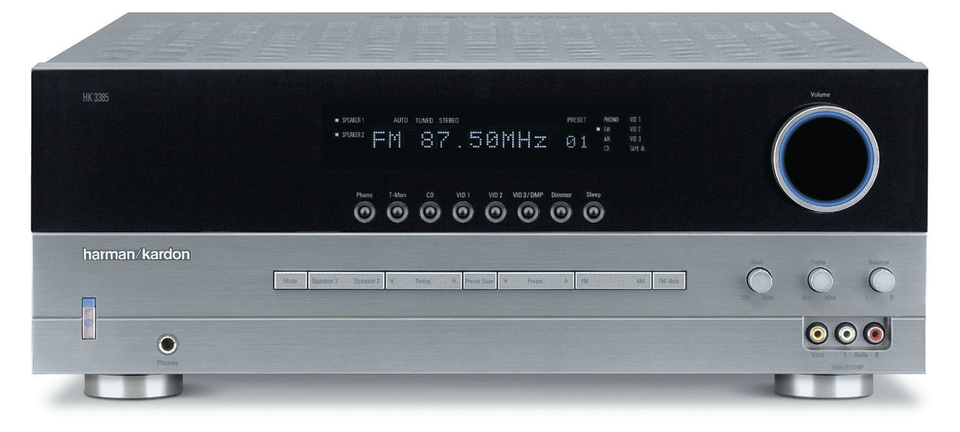

The perfect match for a main music system, your office or that special place for relaxation, the HK 3385 is music at its best. It uses the same high-current, ultrawide-bandwidth amplifier design found in our AVR Series receivers, and has four video inputs, a phono input and a cable for direct audio/video connection to an iPod or MP3 player, all controlled by a multicomponent remote. Let the HK 3385 make beautiful music for you.
