Support Overview / Home Audio / Disc Players and Recorders / DVD Single-Disc Player / DVD 31

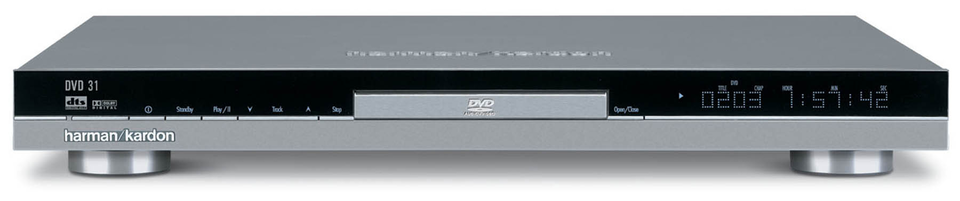

DVD 31

Single Disc DVD Player

Sold from 2003 until 2005

Predecessor Product:	DVD 101
Successor Product:	DVD 37
Made in:	China

Documents & Downloads

Manuals

Product Specifications

General Specifications

Applicable Discs: Audio Formats... Linear PCM, DVD-Audio, MPEG, Windows Media 9, Dolby Digital or DTS Audio Discs

Applicable Discs: Disc formats... 5-inch (12cm) or 3-inch (8cm) DVD-Movie or DVD-Audio, Standard conforming DVD-R, DVD+R, DVD-RW, DVD+RW, VCD, CD, CD-R, CD-RW or MP3 discs

Applicable Discs: DVD-Layers... Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Dual Layer

Applicable Discs: Region Code... DVD-Movie discs with Region Code 1 or 0 only

Applicable Discs: Still image format... JPEG

Video Signal System: NTSC

Composite Video Output: 1V p-p/75 ohms, sync negative polarity

S-Video Output: Y/Luminance... 1V p-p/75 ohms, sync negative polarity C/Chrominance... 0.286V p-p

Component Video Output: Y... 1V p-p/75 ohms, sync negative polarity

Component Video Output: Pr... 0.7V p-p/75 ohms

Component Video Output: Pb... 0.7V p-p/75 ohms

Analog Audio Output: 2V rms max

Signal-to-Noise Ratio: 105dB (A-weighted)

Dynamic Range: DVD... 100dB (18-bit)/105dB (20-bit)

Dynamic Range: CD/DVD... 96dB (16-bit)

Wow and Flutter: Below Measurable Limits

Power Requirements: 110 – 240VAC/50 – 60Hz

Power Consumption: 2 Watts (On/Standby)/20 Watts (Max)

MSRP U.S.: $349.95 each

Dimensions

Weight: 7.3 lb (3.3kg)

Dimensions (H x W x D): 1-15/16 inch x 17-3/10 inch x 12 inch (49mm x 440mm x 330mm)

Disc Player Specifications

Frequency Response: DVD (Linear PCM)... 2Hz – 22kHz +0/–0.5dB (48kHz sampling)

Frequency Response: DVD (Linear PCM)... 2Hz – 44kHz +0/–0.5dB (96kHz sampling)

Frequency Response: CD... 2Hz – 20kHz +0/–0.5dB

Total Harmonic Distortion: DVD/CD... 0.0025% @ 1kHz

Capable of playing DVD, DVD-Audio, MP3, Windows Media and JPEG discs, the DVD 31 is as versatile as they come. And with enhanced pixel-by-pixel progressive scan video processing and an audio control system for DVD-Audio that includes bass management, delay settings and output-level trims, whatever goes in will come out looking and sounding its absolute best. No company is better at reproducing the magic of a musical performance or theatrical presentation than Harman Kardon, as the DVD 31 brilliantly demonstrates.
