Harman Kardon Radiance 2400
Wireless Home Audio System
Getting started with your Harman Kardon Radiance 2400
Quick Start Guide
Get up and running in no time with our easy-to-follow Quick Start Guide
Register your product
Do you own this product? Register it here! And claim your warranty or service easily
Register nowDocuments & Downloads
Product Specifications
- Total system output power
- 450 W RMS
- Tower output power
- 125 W RMS
- Subwoofer output power
- 200 W RMS
- Tower transducers
- 24 x 1.25" (32mm)
- Subwoofer transducer
- 10" (250mm)
- Total harmonic distortion (THD)
- <1 %
- Power supply
- 100-240V~50/60Hz
- Operating temperature
- 0°C - 45°C
- HDMI video input
- 4
- HDMI video output (with Audio Return Channel)
- 1
- HDMI HDCP version
- 2.3
- HDR
- HDR10
- Audio inputs
- 1 Optical, 1 Aux, Bluetooth, Wi-Fi Audio
- Frequency response
- 35Hz - 20kHz
- Tower dimensions (D x H)
- 12.60” x 69.68” (320mm x 1769mm)
- Tower weight
- 16.8 lbs (7.6kg)
- Subwoofer dimensions: (W x H x D)
- 11.65” x 15.73” x 11.65”(296mm x 400mm x 296mm)
- Subwoofer weight
- 32.19lbs / 14.6kg
- Packaging dimensions (W x H x D)
- 46.06'' x 30.55'' x 20.87" (1170 x 776 x 530 mm)
- Packaging weight (gross)
- 106.26 lbs/ 106.26 lbs/ 48.2 kg
- Bluetooth version
- 4.2
- Bluetooth Frequency Range
- 2402MHz-2480MHz
- Bluetooth Transmitter power
- ≤10 dBm (EIRP)
- Bluetooth Transmitter modulation
- GFSK, π/4 DQPSK, 8DPSK
- Wireless network
- 802.11 a/b/g/n/ac
- 2.4G Wi-Fi Frequency Range
- 2412 – 2472MHz (USA and Canada 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi Transmitter power
- ≤20 dBm (EIRP)
- 2.4G Wi-Fi modulation
- DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
- 5G Wi-Fi transmitter power
- ≤23dBm (EIRP)
- 5G Wi-Fi modulation
- QPSK, BPSK, 16QAM, 64QAM, 256QAM
- 5G Wi-Fi transmitter frequency range
- 5.15~5.35GHz, 5.470~5.725GHz, 5.725~5.825GHz
- 5G WISA transmitter power
- ≤14dBm (EIRP)
- 5G WISA modulation
- OFDM, BPSK, QPSK, 16QAM
- 5G WISA transmitter frequency range
- 5.15~5.35GHz, 5.470~5.725GHz, 5.725~5.825GHz
An unparalleled home audio experience

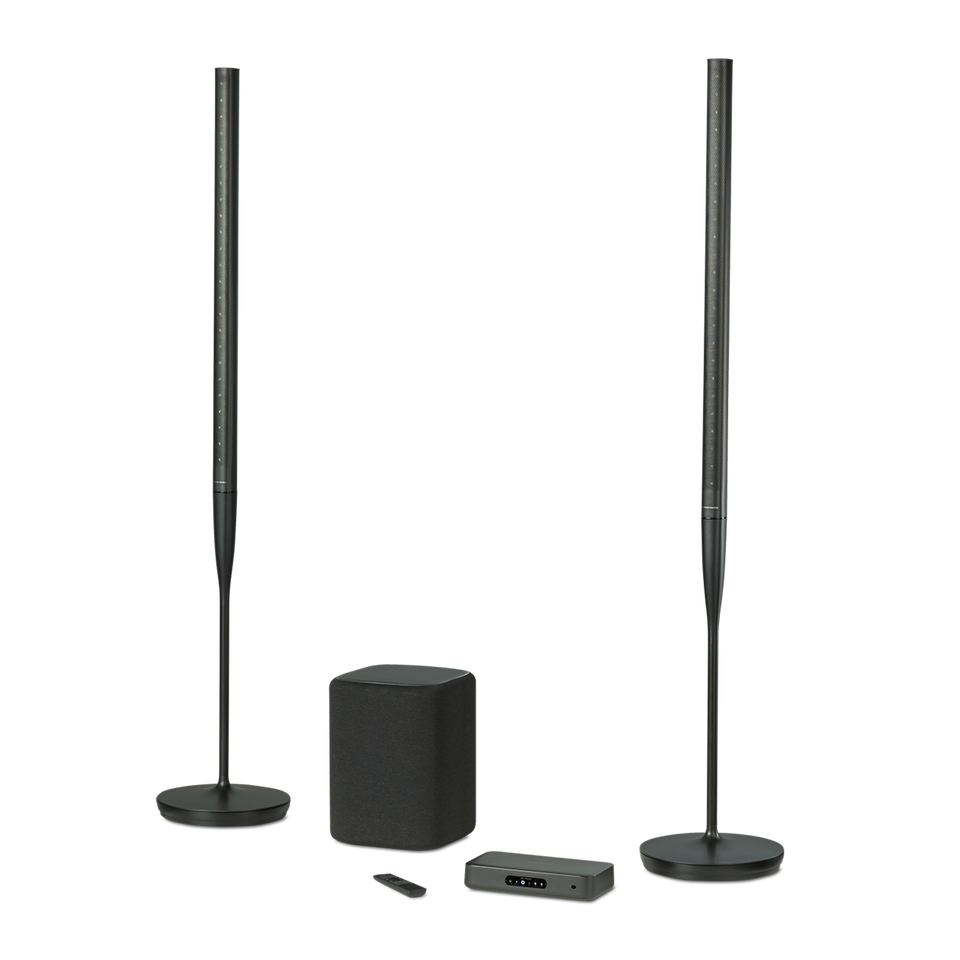

The best seat in the house—wherever you are. Music and home theater reach new heights of sound and beauty. Big dramatic moments rattle the ice in your glass. Romantic whispers tickle your ears. Immersive, room-filling sound, without wires or big boxy speakers. The perfect blend of sleek minimalist design and premium materials, Harman Kardon Radiance 2400 features two ultra-slim floor-standing speakers and a powerful subwoofer, producing a rich, detailed soundscape. Constant Beamwidth Technology™ fills your room, so everyone gets the same exhilarating experience. A compact digital hub connects to your TV and other AV devices, while Wi-Fi allows easy access to your favorite HD music streaming services. You won’t believe your ears. Or your eyes.
Premium materials meet elegant, minimalist design, making the system perfectly match current sleek TV designs. Harman Kardon Radiance 2400 is a piece of art when off, and gives you unbelievable sound when on.
Harman Kardon's state-of-the-art audio legacy and research made the Harman Kardon Radiance 2400 the ultimate loudspeaker to hear every note in the way the artist intended.
This Harman patented acoustic technology uses 24 precisely calibrated transducers per speaker to create a wide sweet spot so you hear amazing audio, wherever you are in the room.
The Harman Kardon Radiance 2400 features a digital hub that includes a comprehensive array of inputs to quickly connect all your favorite audio and video devices, such as TV, game consoles, set-top boxes, or Blu-Ray players.
Harman Kardon Radiance 2400 is equipped with Chromecast built-in™ and AirPlay so you can stream HD music from your favorite music streaming service. Bluetooth is also available, so the possibilities are limitless.
With its luminous LCD display and completely intuitive controls, you can easily set up your Harman Kardon Radiance 2400 system, see information about what's playing, and control your experience.
The Harman Kardon Radiance 2400 speakers and subwoofer connect wirelessly with the digital hub. All you need is to plug in the power cables and run the simple set-up procedure via the Google Home app or via Apple Settings on your iPhone or iPad.
Let a single soundtrack resonate through your entire home, or play different music in each room. Simply add other multi-room enabled speakers like the Harman Kardon Citation series to your system to create a whole-house music system and control the music from your tablet or smartphone.
A compact, yet powerful 10" subwoofer with 200 watts of deep, room filling bass is all it takes to bring the action to your movies and emotion to your music.
You can command all the Harman Kardon Radiance 2400 settings with the ease of a Bluetooth remote control, which means you can enjoy clutter-free placement of your digital hub, by placing it behind the TV or in a cabinet.
Digital Loop Amplifier technology corrects the natural errors and distortion anomalies that occur in digital amplification, restoring audio quality to the way it was meant to be heard. Hear every note as the artist intended.
FAQs & How-Tos
13 results
-
It is not possible to connect further speakers (center or rear) to the system.
The Harman Kardon Radiance 2400 is a 2.1 sound system. With it's unique sound characteristics and sound dispersion, it can fill a large room with high quality sound.Was this helpful? Thank you for your feedback! -
It is possible to connect a turntable to the AUX input of the Radiance 2400. Depending on the turntables output specifications, a phono-preamplifier will in most cases be necessary to connect in-between.Was this helpful? Thank you for your feedback!
-
If the remote control stopped working, please check if the batteries are drained. If so, replace them with new ones.
The remote control may have failed to connect with the digital hub. On the touchscreen, tap “Options” > “Remote Control”, then follow the onscreen instructions to pair with the digital hub again.Was this helpful? Thank you for your feedback! -
Developed for HARMAN Professional Solutions, this technology ensures every listener in the room enjoys the same exhilarating sound experience via precisely-tuned beam-forming components. HARMAN’s revolutionary technology uniquely unites 24 precisely calibrated 1.25” transducers in each of the elegant Radiance speakers to deliver the same superior sound coverage from corner to corner.Was this helpful? Thank you for your feedback!
-
Harman Kardon Radiance 2400 uses patented Constant Beamwidth Technology (CBT) with 24 drivers to create an all-new listening experience. Typical loudspeakers have very narrow sound dispersion in the mid-range and high frequencies, making a very narrow sweet spot for one listener. On the other hand, CBT delivers room-filling sound dispersion and a resulting wide sweet spot, so everyone in the room has great listening experience. The use of CBT allowed us to reduce the cabinet size dramatically. This resulted in a very sleek loudspeaker that does not compromise on sound but looks even better when compared to bulky wooden floor-standing speakers in combination with large AV components.Was this helpful? Thank you for your feedback!
-
Close and restart the Google Home app, or restart your phone. Start the Google Home app again, and the speaker should now appear.
Was this helpful? Thank you for your feedback! -
You can create a multi-room setup using Chromecast built-in™ or Airplay, linking to other speakers with the same feature including the Harman Kardon Citation Series.Was this helpful? Thank you for your feedback!
-
Check if the tower and subwoofer’s LEDs are in solid white color. A blinking LED means a disconnection. In this case, hold RESET on the back of the tower or subwoofer for 5 seconds to enter pairing mode. On the touchscreen, tap “Speaker Setup” > “Pairing” > “Tower Setup” or “Subwoofer pairing”, then follow the onscreen instructions to pair with the digital hub again.Was this helpful? Thank you for your feedback!
-
RADIANCE 2400
Software Update Release Notes
------------------------------------------------------------------------
Version: 94384
Release Date: July 8, 2024
Release Media: OTA (over the air) Automatic Upgrade
- Upgrade to Google SDK 1.56 to resolve issues related to Wi-Fi set up in the Google Home app and compatibility with 1st party Google speakers.
Was this helpful? Thank you for your feedback! -
Harman Kardon Radiance 2400 can decode Dolby Audio and DTS.
Dolby Atmos is not supported, but will be rendered as Dolby Audio.
Dolby Digital 5.1 and DTS Surround (2.0 and 5.1) is supported, but will be downmixed to 2.1/2.0.
DTS Master Audio is not supported.Was this helpful? Thank you for your feedback!
