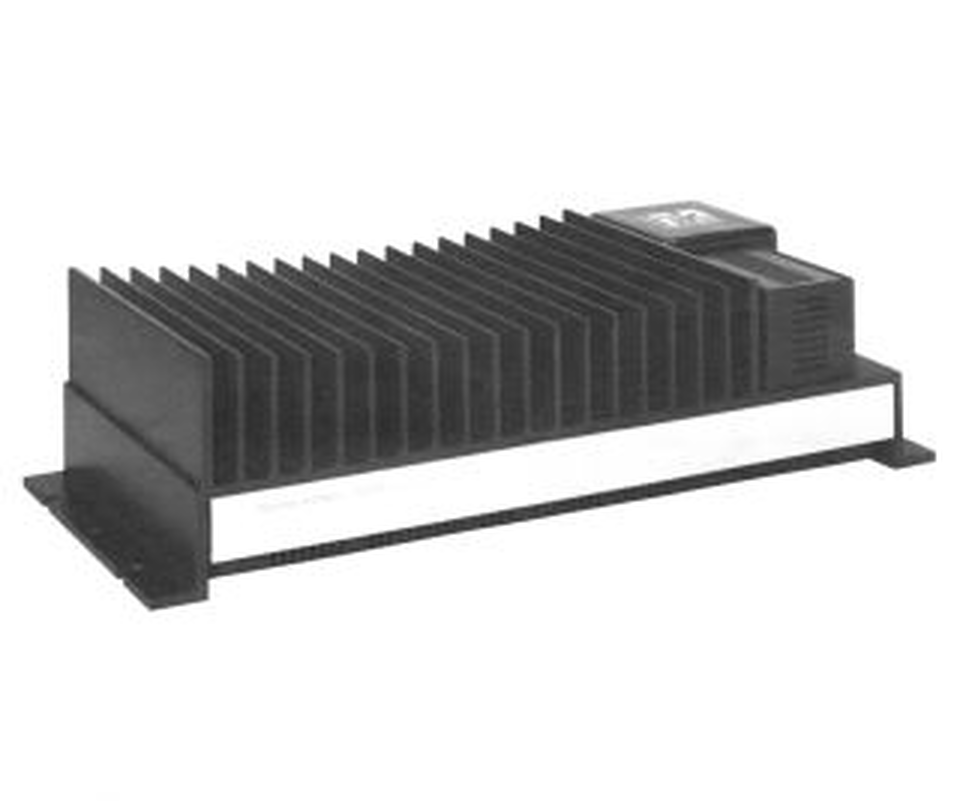

CA 260
2-Channel Car Audio Amplifier (60 watts x 2)
Sold from 1984 until 1993
| Successor Product: | CA 280 |
|---|---|
| Made in: | Japan |
Documents & Downloads
Product Specifications
- Output 4 Ohms
- 60 watts per channel, 20 – 20kHz
- Output 2 Ohms
- 90 watts per channel, 20 – 20kHz
- Output 4 Ohms Bridged
- 180 watts, 20 – 20kHz
- High Instantaneous Current Capability (HCC)
- ± 30 Amps
- Total Harmonic Distortion
- no more than 0.1%
- Negative Feedback
- 25dB
- Power Bandwidth
- 10Hz – 100kHz
- Frequency Response
- 10Hz – 100kHz (±3dB @ 1 watt)
- Signal-to-Noise Ratio
- 80dB
- Input Level/Impedance
- LINE LEVEL -0.25V/ 0.8V (switchable) HIGH LEVEL -3V
- Power Supply
- DC +13.8V (11-16V usable), negative ground
- Power Requirements
- AT IDLE – 2.5A
- Power Requirements
- FULL POWER MUSIC SIGNAL – 6.7A (4 ohms/ch), 10A (2 ohms/ch)
- Power Requirements
- FULL POWER SINE WAVE – 20A (4 ohms/ch), 30A (2 ohms/ch)
- Crossover Frequency(ies)
- HIGH PASS – 200Hz, 12dB/octave
- Crossover Frequency(ies)
- LOW PASS – 200Hz, 6dB/octave
- MSRP U.S.
- $499.95 each
