Product Specifications
- Power Requirements
- AC 120V/60Hz
- Power Consumption
- 65W idle, 540W maximum (5 channels driven)
- Digital Inputs (coaxial/optical)
- 2/2 on rear; 1/1 on front
- HDMI
- Two inputs/1 output, switching only. Simplay HD verified.
- Analog Inputs
- 1 A/V on front panel
- Analog Inputs
- 2 audio-only
- Analog Inputs
- 3 A/V on rear panel
- Analog Inputs
- 6-channel input
- Analog Inputs
- The Bridge/DMP
- Analog Inputs
- tuner
- On-Screen Display
- Yes
- Multizone Capability
- No
- Auto Setup
- EzSet/EQ room equalization
- Remote Control
- Ten-device, programmable remote
- Shipping Weight (System, Accessories, Packing)
- 26.2 lb (11.9kg)
- MSRP U.S.
- $449.95 each
- # of Amplifier Channels
- 5
- Continuous Average Power (FTC) per Channel (stereo mode)
- 50 Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
- Front L & R Channels
- 40 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Center Channel
- 40 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Surround Channels
- 40 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 100dB (IHF-A)
- Surround System Adjacent Channel Separation:
- Dolby Pro Logic I and II
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 130kHz (+0/-3dB @ 1 watt)
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Slew Rate
- 40V/µsec
- Width
- 17-5/16 inch (440mm)
- Height
- 6-1/2 inch (165mm)
- Depth
- 15 inch (382mm)
- Weight
- 21.3 lb (9.7kg)
- Dimensions:
- Carton Dimensions (W x H x D)
- 22 inch x 10-1/2 inch x 18-5/16 inch (559mm x 267mm x 465mm)
- Television Format
- NTSC
- Input Level/Impedance
- 1V p-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response:
- Composite and S-Video
- 10Hz – 8MHz (–3dB)
- Component Video
- 10Hz – 100MHz (–3dB)
- HDMI
- Switching
- Frequency Range
- AM... 520 – 1720kHz
- Frequency Range
- FM... 87.5 – 108.0MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Signal-to-Noise Ratio
- FM... Mono/Stereo 70/68dB
- Usable Sensitivity
- AM... Loop 500µV
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Distortion
- FM... Mono/Stereo 0.2/0.3%
- Selectivity
- AM... ± 10kHz, 30dB
- Stereo Separation
- FM... 40dB @ 1kHz
- Selectivity
- FM... ± 400kHz, 70dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
- Amplifier Power (RMS)
- 40 x 5 @ 8 ohms (20Hz – 20kHz, <0.07% THD) (all channels driven at full power)
- High Instantaneous Current Capability (HCC)
- ± 25 Amps

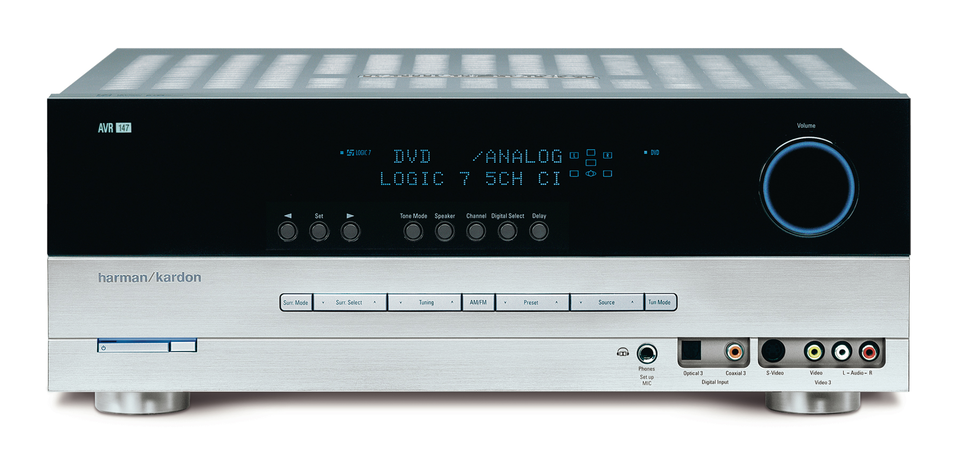

Fully connected! That is a perfect description of the AVR 147, where two-input, Simplay HD;-verified HDMI; switching, two 100MHz-capable component video inputs, a wealth of digital audio inputs and both XM Ready and The Bridge connections let you connect and command virtually any home theater source. Logic 7 processing, EzSet/EQ; technology and high-current amplification take care of the audio, to provide you with the best sound.
FAQs & How-Tos
1 results
-
Please check the picture settings on your cable box, particularly the aspect ratio settings, which will vary depending on the brand and model of your cable box and on your local cable provider. You may wish to consult with your cable provider for more information on how to adjust the cable box's settings. Some settings, such as a setting to force an analog channel's native 4:3 aspect ratio to 16:9 widescreen to fit your display, may interfere with the cable system's copy-protection feature and cause distortion.Was this helpful? Thank you for your feedback!
