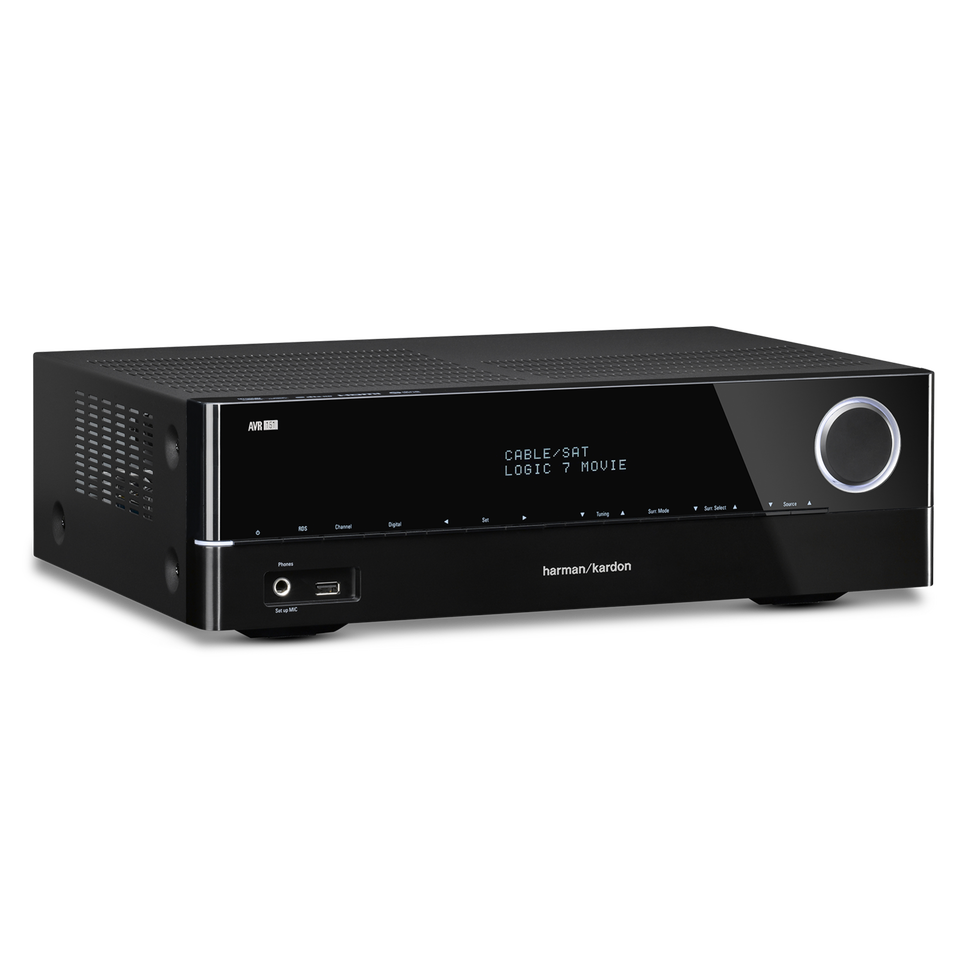

AVR 151
375-watt, 5.1-channel, networked audio/video receiver
Getting started with your AVR 151
Quick Start Guide
Get up and running in no time with our easy-to-follow Quick Start Guide
Register your product
Do you own this product? Register it here! And claim your warranty or service easily
Register nowDocuments & Downloads
Product Specifications
- Power requirement
- 220V – 240V AC/50Hz – 60Hz
- Power consumption
- <0.5W (standby); 410W maximum
- Weight
- 4.6kg (10 lb)
- Frequency range
- 87.5MHz –108.0MHz
- Signal-to-noise ratio (mono/stereo)
- 70dB/68dB
- Distortion (mono/stereo)
- 0.2%/0.3%
- Stereo separation
- 40dB @ 1kHz
- Selectivity (±400kHz)
- 70dB
Lighter box. Bigger sound
This 375-watt, high-performance, 5.1-channel A/V receiver makes your music, movies and shows sound better than ever. Whether it’s your Blu-ray™ player, HD cable set-top box or game console, you want the best picture quality and sound. And you need one simple way to connect them all. The Harman Kardon® AVR 151 is a 5.1-channel, networked audio/video receiver that provides you with four 3D-ready HDMI® inputs . Plug them in once, and you’re all set. With DLNA® 1.5, you can stream audio from your networked devices, and built-in vTuner™ Internet radio connects you to a whole world of online audio entertainment. Versatile and muscular, the AVR 151 can pump out up to 375 watts; with it, you’ll hear powerful audio with all the clarity you’ve come to love from Harman Kardon products. The receiver is lighter, too, thanks to HARMAN GreenEdge™ certification. You’ll experience serious power, only now in an environmentally friendly form factor. And if you’re one of those who enjoy even more control, the Harman Kardon Remote app is available for download – giving you the freedom to control your home theater experience from the comfort of your own device. Sleek, light and powerful, the Harman Kardon AVR 151 is the perfect balance between versatility and beautiful sound.
The AVR 151 high-performance, audio/video receiver pumps out 75 watts per channel to power a full 5.1-channel surround sound system. It can also connect to powered subwoofers to provide enhanced low-frequency performance for your music, movies, HDTV shows, sports and video games. While the amplifier retains the time-tested Harman Kardon high-current-capacity (HCC), ultrawide-bandwidth amplifier design to ensure the most accurate, dynamic sound with enhanced clarity and realism, even at the highest listening levels, a digitally based power supply gives the amplifier all the muscle it needs without the weight of traditional power-supply designs and their heavy transformers. The net result is a great-sounding product in a smaller form factor that is friendly to the environment.
The AVR 151 is DLNA 1.5 compliant, which gives you the option to deliver audio content over your home network via of compliant devices, such as smartphones, tablets and personal computers.
The AVR 151 features vTuner Internet radio to connect you to a whole world of online audio entertainment. As soon as it’s out of the box, you can stream over-the-air radio stations from around the globe as well as stream from a wide range of Internet-only radio stations.
Four HDMI inputs with 3D and 30/36-bit Deep Color deliver high-definition digital video at resolutions up to 1080p with full-fidelity audio through a single cable. There is no loss of video or audio quality because of format conversion, just full-impact Hollywood excitement as its creators meant you to experience it.
The AVR 151 gives you multiple options for audio playback with its front-panel USB port. Simply connect an iPhone, iPad or USB stick to play your stored tracks through your home entertainment system. The integrated USB port charges your iOS devices, too.
The AVR 151 delivers high-resolution audio that matches the digital video quality of Blu-ray Disc™ formats, unlocking the full potential of movie soundtracks formatted with Dolby® TrueHD and DTS-HD Master Audio™ coding. No matter what mode or mood you are in, you’ll always hear audio playback at its finest.
The HARMAN GreenEdge logo assures you that the AVR 151’s design is environmentally friendly without compromising the premium performance for which HARMAN products are known. Thanks to an advanced power supply, the AVR 151 can deliver high-quality audio in a small, light chassis that uses less metal and plastic. The small design means that less fuel is used in transportation, with the end result being a lower carbon footprint.
The AVR 151 takes the award-winning Harman Kardon design look to a new level with a flush volume control and more compact design. Thanks to the light weight made possible by an advanced digital power supply, the unit weighs less without sacrificing performance so that it is the perfect match for the thin glass shelves of today’s open TV/entertainment furniture.
All connections on the AVR 151 are color-coded to simplify hookup and reduce errors. What could be easier?
The AVR 151 simplifies your life with a programmable, infrared (IR) remote control. Its design works seamlessly with the receiver’s multilingual on-screen display, guiding you through system setup and operation with consummate ease. The multidevice remote can also control your TV, cable boxes, satellite tuners and other playback sources. For further installation flexibility, there is a 12-volt trigger output and a remote IR sensor input.
FAQs & How-Tos
15 results
-
No, 4K upscaling is not possible. It was mentioned in the specification sheet and on the web page that this feature was supported, but that is an error.Was this helpful? Thank you for your feedback!
-
Yes, in the HDMI Setup Menu, it is possible to select either �Sound To TV� or �Sound To Amp�, Amp being the AVR. This detail is not mentioned in the owner's manual.Was this helpful? Thank you for your feedback!
-
This is sometimes a problem with wired connections to computers or NAS drives. There is no way to change this, unfortunately.Was this helpful? Thank you for your feedback!
-
The Harman AVR App controls your receiver through your smartphone, which communicates via your wireless home network. Please make sure that your AVR is properly connected to your network router, with cable for the smaller models. If you have no wireless home network, you cannot use the app.Was this helpful? Thank you for your feedback!
-
Yes, on your computer, enter the IP address of the receiver in the internet browser. In the page that opens, it is possible to change the name.Was this helpful? Thank you for your feedback!
-
No, we only have support for MHL compatible devices, which Chromecast do not support.Was this helpful? Thank you for your feedback!
-
For your personal safety and to avoid possible damage to your equipment and speakers, it is always a good practice to turn off and unplug the AVR and ALL source equipment from the AC output before making any audio or video system connections.Was this helpful? Thank you for your feedback!
-
There are five possible reasons for the receiver shutting down. 1. There is a problem internally with the receiver. 2. There is a problem with one or more of your speakers. 3. There is a problem with one or more of your speaker wires. 4. There is a problem with the speaker wiring done on your system. 5. The unit is overheating. No ventilation. First, check the wiring at every speaker terminal at the back of your receiver and at the back of your speakers. A single strand of speaker wire crossing from one terminal to another would be enough to cause the amp to shut down or go into PROTECT. If you do not find any problems with any of the wiring, you should disconnect all speakers from your receiver. If the receiver continues to go into PROTECT, the problem is in the receiver. Please submit a case on the Contact Us page. They will be able to assist you. However, if it turns on, the problem is elsewhere. Begin reconnecting one speaker at a time. Eventually you will connect a speaker that will cause the receiver to shut down. At this point you have found your culprit. On the other hand, it may just be overheating. You must have at least 2 - 3 inches of space between the top of the unit and any shelf or component above the unit. The unit should not be inside a sealed compartment when being used. The unit must be able to breath. There are very powerful amps in these receivers. If they run too hot, they will shut down. An external fan can help this.Was this helpful? Thank you for your feedback!
-
If you have enabled HDMI-link (CEC function), then you will experience that your AVR will do some actions based on the CEC function coming from your TV, which in this case it will follow your TV when it goes into standby.Was this helpful? Thank you for your feedback!
-
With some Blu-ray discs, you have to go to the Settings Menu of your Blu-ray player and select "Bitstream" or "Bitstream Native". This will carry the DTS HD Master signal to be decoded in the AVR, and the AVR front panel should show the correct text.Was this helpful? Thank you for your feedback!
