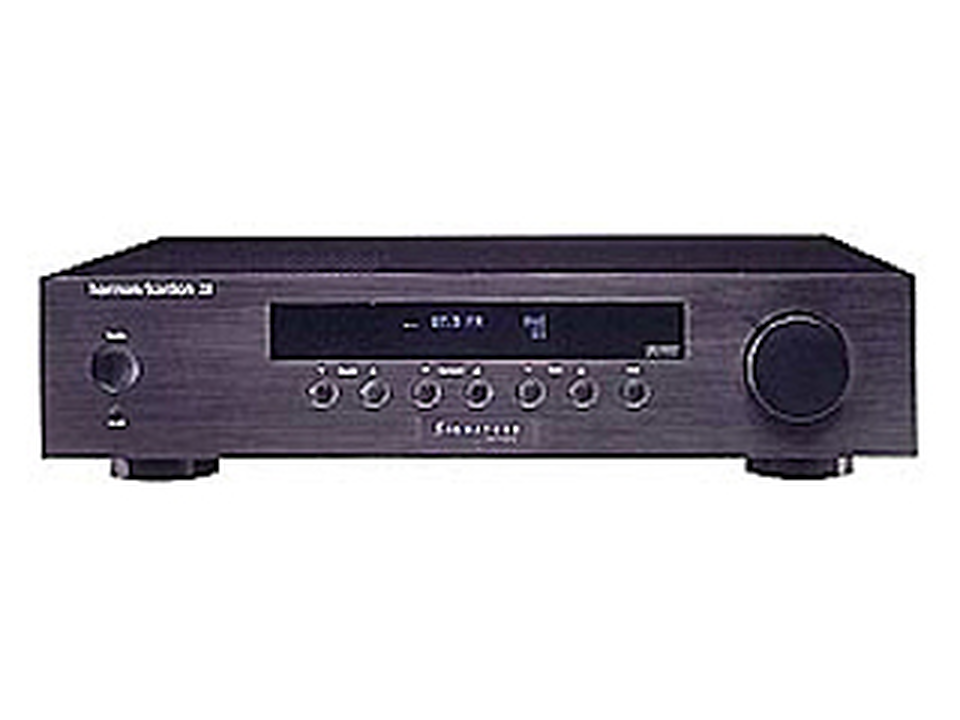

SIGNATURE 2.0
Dolby Digital Surround Sound Preamp/Tuner
Sold from 1997 until 1998
Documents & Downloads
Product Specifications
- Power Requirements
- 115V AC/60Hz
- Surround Modes
- Analog... Dolby Pro Logic, Four Movie Modes, Four Music Modes, Stereo, Mono, Mono +
- Inputs
- Six Analog Audio Inputs
- Outputs
- Six Analog Preamp Outputs
- Inputs
- Six Digital Audio Inputs (4 Coaxial, Two Optical)
- Outputs
- One Composite Video Output
- Power Consumption
- 5-1/2 Idle, 75W Maximum
- Surround Modes
- Digital... Dolby Digital, Dolby Digital Late Night, Dolby Digital Pro Logic, Dolby Digital Mono, DTS 5.1, DTS 4-Channel, DTS 2-Channel, Stereo, Mono +
- Inputs
- Six-channel Direct Inputs for use with External Decoders
- Outputs
- Two pair (paralleled) analog audio record outputs
- Inputs
- Six Composite Video Inputs
- Outputs
- One Composite paired with one S-Video Record Output
- Inputs
- Two S-Video Inputs
- Outputs
- IR Sensor Output
- Inputs
- IR Sensor Input
- Outputs
- Accessory Trigger 6-12 volt output for use with external amplifiers or other equipment
- MSRP U.S.
- $2500 each
- Width
- 17-3/8 inch (441mm)
- Height
- 4-1/8 inch (105mm)
- Depth
- 15-3/8 inch (395mm)
- Weight
- 22lbs (10-1/2kg)
- Frequency Range
- AM... 520 – 1710kHz in 10kHz steps
- Frequency Range
- FM... 87.5 – 108MHz in 200kHz steps
- Signal-to-Noise Ratio
- AM... >40dB
- Usable Sensitivity
- FM... <1µV/11-1/5dB
- Signal-to-Noise Ratio
- FM... 70dB (Stereo, A-weighted)
- Usable Sensitivity
- AM... <500µV/M
- Sensitivity
- FM... <45dBf
- Total Harmonic Distortion
- FM... <1/2%
- Capture Ratio
- FM... <2 1/2dB
- AM Rejection
- FM... >50dB
- Image Rejection
- FM... >70dB (@106MHz)
- IF Rejection
- FM... >85dB
- Effective Selectivity
- FM... >50dB (±400kHz)
- Stereo Separation
- FM... >40dB (1kHz)
- RDS Mode
- FM... Station ID, Program Type, Radio Text Data, Program Type Search
- Front L & R Channels
- 20Hz – 50kHz, ± 0.5dB
- Center Channel
- 20Hz – 30kHz, ± 1dB
- Selectivity
- >30dB (±10kHz)
- Subwoofer Output
- 10Hz – 100Hz, ± 1dB
- Total Harmonic Distortion
- 0.03%, 20Hz – 20kHz
- Signal-to-Noise Ratio
- >-87dBr, 20Hz – 20kHz
- Crosstalk
- <60dB
- Audio Inputs
- >10k ohms
- Video Inputs
- 75 ohms
- Audio Output(s)
- 300 ohms
- Video Outputs
- 75 ohms
- Low-Pass Frequency
- 3 Pole (18dB/Octave) @ 100Hz
- High-Pass Frequency
- 3 Pole (18dB/Octave) @ 100Hz
- Variable Bass Boost
- +0dB/+8dB in 2 steps @ 50Hz
- Video Standards
- NTSC, PAL
A powerful Dolby Digital/DTS processor/tuner, the Signature 2.0 is loaded with all the features that make it the ideal centerpiece for your current home-entertainment system. Its 6-channel direct inputs will let you use external decoders, including future DVD-Audio and other decoders. Prior season's model.
