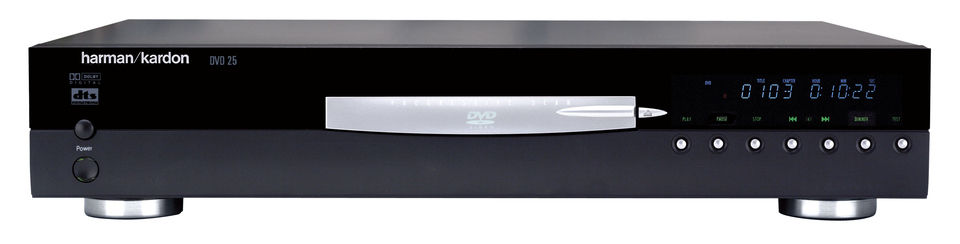

DVD 25

Single Disc DVD Player

Sold from 2002 until 2003

Successor Product:	DVD 31

Documents & Downloads

Manuals

Product Specifications

General Specifications

Applicable Discs: Audio Formats... Linear PCM, MPEG, Dolby Digital or DTS Audio Discs

Applicable Discs: 5-inch (12cm) or 3-inch (8cm) DVD-Movie, Standard conforming DVD-R, DVD+R, DVD-RW, DVD+RW, Video CD, CD, CD-R, CD-RW or MP3 discs

Applicable Discs: DVD-Layers... Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Dual Laye

Applicable Discs: DVD-Movie discs with Region Code 1 only

Video Signal System: NTSC

Composite Video Output: 1V p-p/75 ohms, sync negative polarity

S-Video Output: Y/Luminance... 1V p-p/75 ohms, sync negative polarity C/Chrominance... 0.286V p-p

Component Video Output: Y... 1V p-p/75 ohms, sync negative polarity

Component Video Output: Pr... 0.7V p-p/75 ohms

Component Video Output: Pb... 0.7V p-p/75 ohms

Analog Audio Output: 2V rms max

Signal-to-Noise Ratio: 113dB (A-weighted)

Dynamic Range: DVD... 100dB (18-bit)/105dB (20-bit)

Dynamic Range: CD/DVD... 96dB (16-bit)

Wow and Flutter: Below Measurable Limits

Power Requirements: 120VAC/60Hz

Power Consumption: 12 Watts (on)/20 Watts (Max)

MSRP U.S.: $349.95 each

Dimensions

Weight: 7.5 lb (3.4kg)

Dimensions (H x W x D): 3-7/16 inch x 17-5/16 inch x 12 inch (87mm x 440mm x 305mm)

Disc Player Specifications

Frequency Response: DVD (Linear PCM)... 2Hz – 22kHz +0/–0.5dB (48kHz sampling)

Frequency Response: DVD (Linear PCM)... 2Hz – 44kHz +0/–0.5dB (96kHz sampling)

Frequency Response: CD... 2Hz – 20kHz +0/–0.5dB

Total Harmonic Distortion: DVD/CD... 0.0025% @ 1kHz

DVD is the fastest growing product in the history of consumer electronics, and the DVD 25 is one reason why. It offers progressive scan playback with full reconstruction of the original film image to create stunning images that maximize the benefits of today's advanced digital video displays. Of course, it plays not only DVDs, but also CDs, CD-Rs, CD-RWs, Video CDs and even MP3 discs with clarity that rivals the original performance. Complete programming options and a full-featured, backlit remote control make the DVD 25 easy to use. It even includes a built-in test signal which allows you to quickly adjust your video display without the need for additional discs or equipment.
