DVD 23

DVD 23

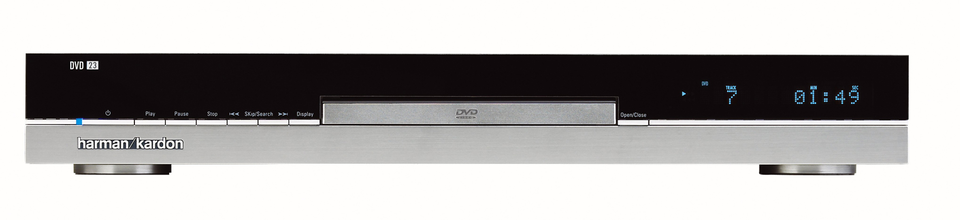

DVD 23 DVD PLAYER

Sold from 2007 until now

Made in: China

Product Specifications

Applicable Discs
Audio Formats... Linear PCM, MPEG, Windows Media 9, Dolby Digital or DTS Audio Discs
Applicable Discs
Disc formats... 5-inch (12cm) or 3-inch (8cm) DVD-Movie, Standard conforming DVD-R, DVD+R, DVD-RW, DVD+RW, VCD, CD, CD-R, CD-RW or MP3 discs
Applicable Discs
DVD-Layers... Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Dual Layer
Applicable Discs
Region Code... DVD-Movie discs with Region Code 1 or 0 only
Applicable Discs
Still image format... JPEG
Video Signal System
NTSC/PAL
Composite Video Output
1V p-p/75 ohms, sync negative polarity
S-Video Output
Y/Luminance... 1V p-p/75 ohms, sync negative polarity C/Chrominance... 0.286V p-p
Component Video Output
Y... 1V p-p/75 ohms, sync negative polarity
Component Video Output
Pr... 0.7V p-p/75 ohms
Component Video Output
Pb... 0.7V p-p/75 ohms
Analog Audio Output
2V RMS max
Signal-to-Noise Ratio
113dB (A-weighted)
Dynamic Range
DVD... 100dB (18-bit)/105dB (20-bit)
Dynamic Range
CD/DVD... 96dB (16-bit)
Wow and Flutter
Below Measurable Limits
Power Requirements
110 – 240VAC/50 – 60Hz
Power Consumption
2 Watts (On/Standby)/20 Watts (Max)
Weight
3.7kg
Dimensions (H x W x D)
63mm x 440mm x 332mm
Frequency Response
DVD (Linear PCM)... 2Hz – 22kHz +0/–0.5dB (48kHz sampling)
Frequency Response
DVD (Linear PCM)... 2Hz – 44kHz +0/–0.5dB (96kHz sampling)
Frequency Response
CD... 2Hz – 20kHz +0/–0.5dB
Total Harmonic Distortion
DVD/CD... 0.0025% @ 1kHz

Picture quality is not just a question of resolution, but how the image is decoded. The DVD 23 uses pixel-by-pixel - rather than line-based - processing to produce a noticeably sharper image. Compatible with DVD, DivX, MP3, Windows Media and JPEG discs, the DVD 23 features high-end DACs, a built-in test signal and backlit remote for outstanding video and audio performance.
