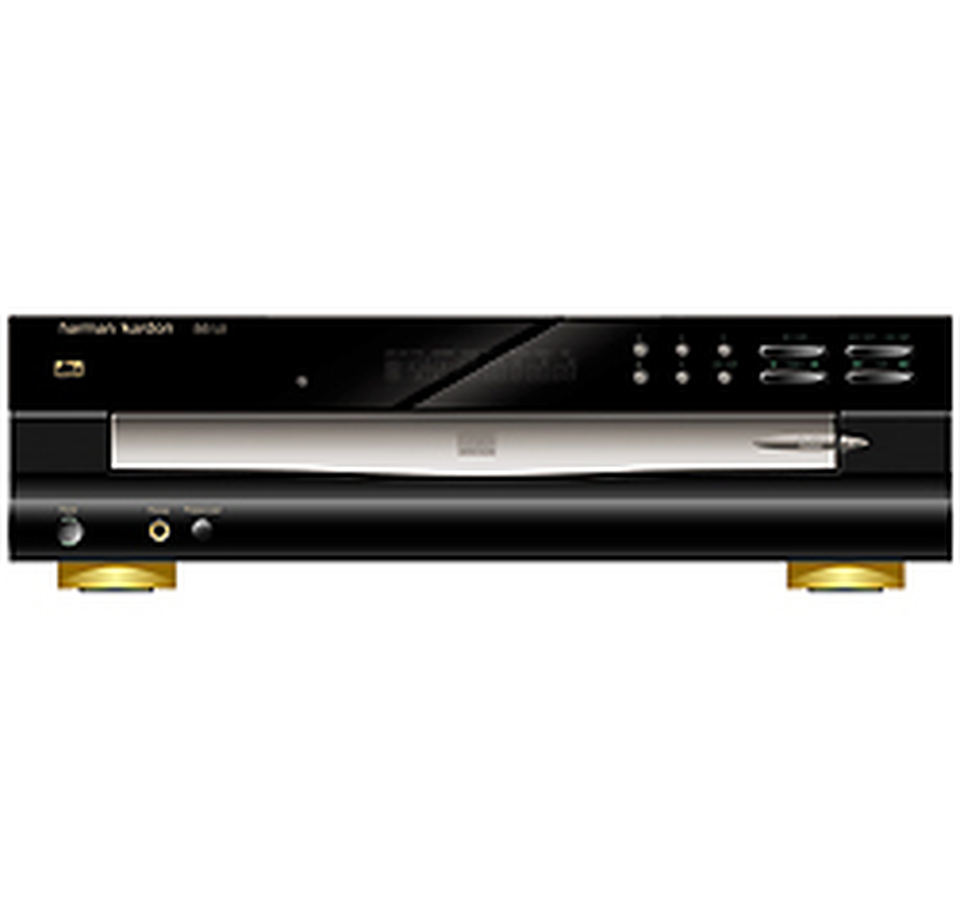

DVD 5

DVD 5

Front Loading 5-Disc DVD Changer

Sold from 2000 until 2001

Successor Product: DVD 50

Documents & Downloads

Product Specifications

Applicable Discs
Audio Formats… Linear PCM, Dolby Digital or DTS Audio
Applicable Discs
Disc Formats… 5-inch (12cm) or 3-inch (8cm) DVD-Movie, CD or CD-RW discs
Applicable Discs
DVD-Layers... Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Dual Layer
Applicable Discs
Region Code… Region 1 DVD-Movie discs
Video Signal System
NTSC
Composite Video Output
1V p-p/75 ohms, sync, negative polarity
S-Video Output
Y/Luminance... 1V p-p/75 ohms, sync, negative polarity; C/Chrominance... 0.286V p-p
Component Video Output
Y... 1V p-p/75 ohms, sync, negative polarity
Component Video Output
Pr... 0.648V p-p/75 ohms
Component Video Output
Pb... 0.648V p-p/75 ohms
Analog Audio Output
2.0V RMS, ±0.2
Coaxial Digital Audio Output
0.5V p-p/75 ohms
Optical Digital Audio Output
1.6V p-p
Frequency Response
4Hz –22kHz, (±0.5dB) (48kHz sampling)
Channel Separation
>90dB
Signal-to-Noise Ratio
>100dB
Wow and Flutter
unmeasurable
Headphone Output
1.2V RMS @ 32 ohms
Power Requirements
AC 120V/60Hz
Power Consumption
25 Watts
MSRP U.S.
$549.95 each
Weight
15.4 lb (7kg)
Dimensions (H x W x D)
5.1 inch x 17.3 inch x 17.2 inch (130mm x 440mm x 437mm)
Dynamic Range
DVD... 105dB (20-bit)
Dynamic Range
CD... 100dB
Total Harmonic Distortion
DVD... 0.0035%
Total Harmonic Distortion
CD... 0.0035%

The DVD 5 carries Harman Kardon's tradition of excellence forward into the digital era. This DVD changer also plays back CDs, and home-recorded CD-RW discs. Its 25-track programmable playlist lets you arrange an entire evening of musical and cinematic enjoyment. Harman Kardon included enhanced features such as component video (Y/Pr/Pb), S-Video and composite video outputs; audiophile-grade 96kHz/24-bit AKM D/A converters; Dolby Digital and DTS audio outputs; coax and optical digital audio outputs; and an innovative, ergonomic, backlit remote control.
