Product Specifications
- Digital Input Sample Rates
- RECORD... 32kHz – 96kHz
- Frequency Response
- 2Hz –20,050Hz
- Playback Sampling Frequency
- 44.1kHz
- Power Requirements
- 100~240V AC, 50~60Hz
- D/A Conversion
- 96kHz, Multi-Bit Delta-Sigma Conversion
- Power Consumption
- 28 Watts
- Signal-to-Noise Ratio
- 105dB (playback)
- Signal-to-Noise Ratio
- RECORD... 91dB (recording - analog)
- Oversampling
- 128 Times
- Playback Dynamic Range
- 105dB
- Signal-to-Noise Ratio
- RECORD... Equal to Source (digital dub mode)
- Signal-to-Noise Ratio
- RECORD... Source – 10dB (digital external source)
- Total Harmonic Distortion
- 0.005%/–88dB (playback)
- Analog Audio Output
- 2V RMS, (±2dB)
- Recording Dynamic Range
- RECORD... 91dB
- Digital-Coaxial Output
- 0.5Vpp/75 ohms
- Total Harmonic Distortion
- RECORD... 0.005%/–85dB (recording)
- Headphone Output
- 1V RMS/32 – Ohm Load
- Input Sensitivity
- RECORD... ANALOG - 330mV RMS 47k ohms = 0dB
- Digital Inputs (Direct Recording)
- RECORD... 44.1kHz, ±100 ppm/min.
- MSRP U.S.
- $549.95 each
- Weight
- 10.5 lb (4.7kg)
- Dimensions (H x W x D)
- 4.4 inch x 17.3 inch x 14.2 inch (112mm x 440mm x 363mm)

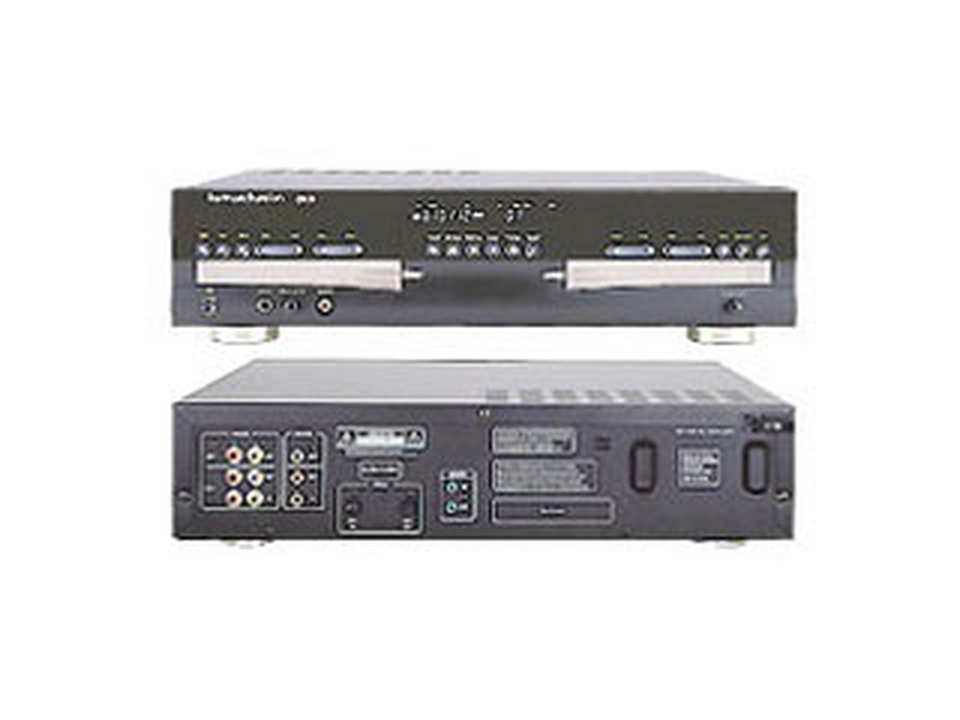

The 4x-speed CDR20 enables you to preserve your vinyl or tapes in the crystal-clear, durable CD format. The CDR20 can make recordings from external analog or digital sources, or can dub entire discs or a programmed mix from one deck to the other. The two decks can function as either a 2-disc changer, or dual sources in a multiroom application. The 96kHz/24-bit AKM D/A converters preserve the sonic quality of original recordings. Front-panel digital input and headphone jacks offer the level of convenience that you have come to expect from Harman Kardon.
