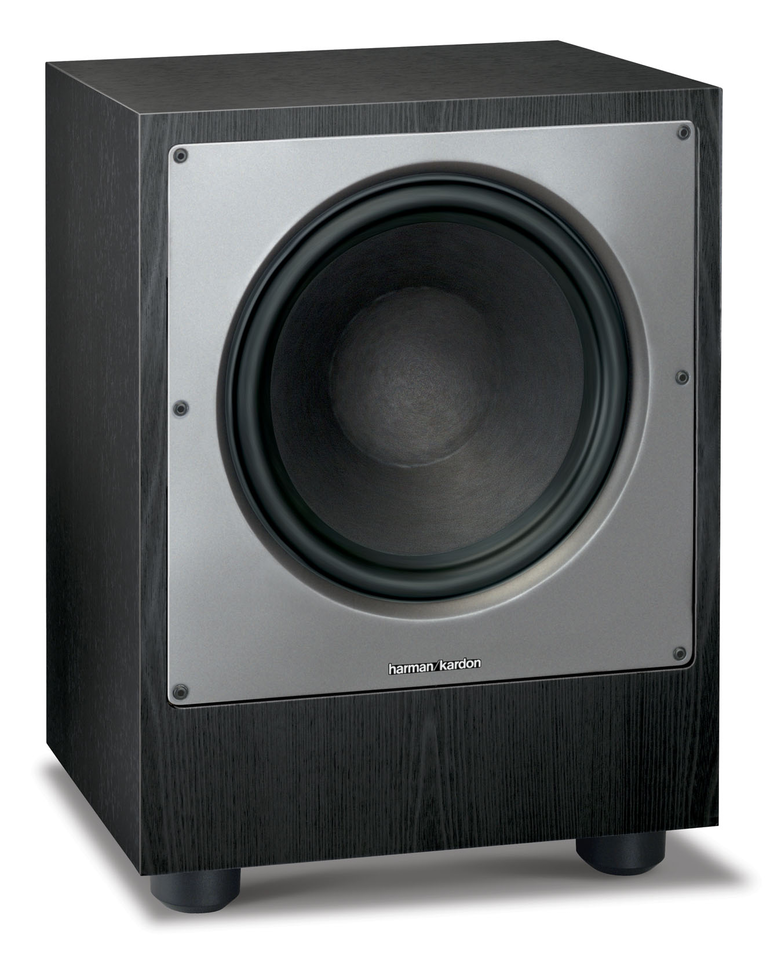

HK SUB 12

12 inch Front-Firing Powered Subwoofer (150 watts)

Sold from 2002 until 2003

Documents & Downloads

Manuals

Specifications

Specifikationer

Amplifier Power (RMS): 150 Watts

Subwoofer Transducer: 12 inch Polymer-coated-cone Woofer

Inputs: Stereo line-level, dedicated Subwoofer (LFE) and speaker-level with 5-way binding posts

Outputs: Speaker-level, with 5-way binding posts

Low-Pass Frequency: Continuously variable from 50Hz – 150Hz

High-Pass Frequency: 150Hz when using speaker-level output

Frequency Response: 25Hz – low-pass crossover setting

MSRP U.S.: $399.95 each

Mål

Weight: 49 lb (22kg)

Dimensions (H x W x D): 20-1/2 inch x 16 inch x 13-3/4 inch (520mm x 401mm x 350mm)

Feel the explosive power of today's action movie soundtracks or provide deep bass to bookshelf speaker music systems. The HKSUB 12's long-throw, front-firing, 12-inch low-frequency transducer is powered by a 150-watt RMS internal power amplifier for floor-shaking, low-end impact. Includes speaker-level L/R parallel inputs and outputs, and level, filter, frequency and phase controls.
