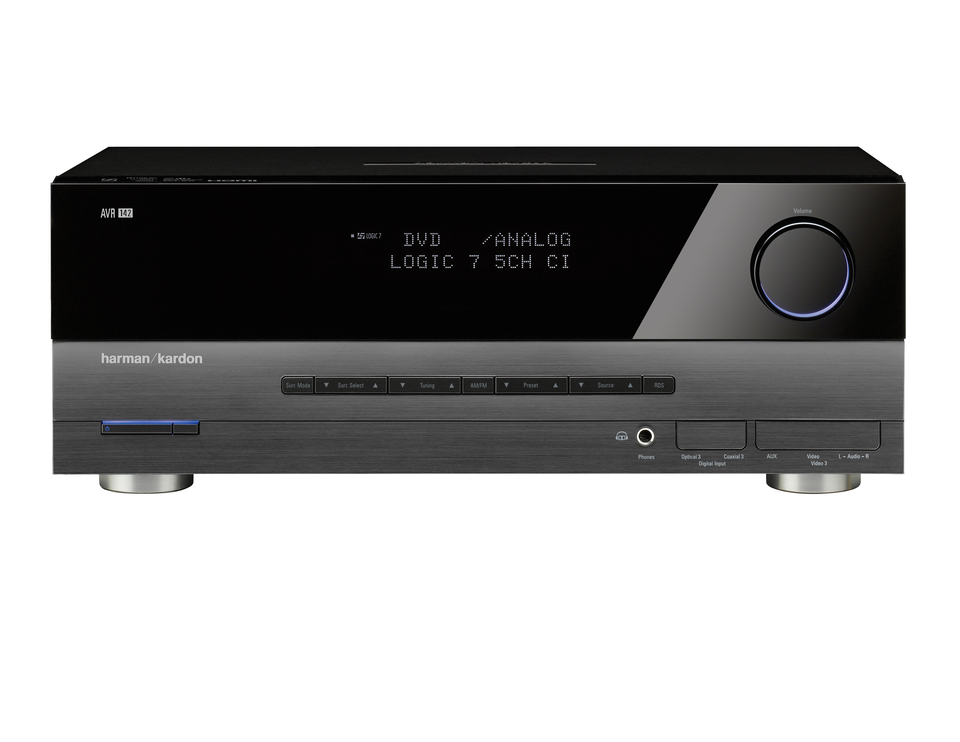

AVR 142

5 x 40W 5.1-ch AV Receiver with HDMI switching

Specifications

Specifikationer

Type: 5.1-Channel AVR

Continuous Average Power (FTC) per Channel (surround modes): 35 x 5 / 20Hz – 20kHz, 8 ohms, all channels driven

Amplifier Type: High-Current ±25 amps

Total Harmonic Distortion: 0.07% @ 8 ohms

Bandwidth: 20Hz – 20kHz

Bandwidth @ 1W (-3dB): 10Hz – 130kHz

Power Supply: Independent front & rear

Surround Modes: Dolby Digital Pro Logic II Dolby Virtual Speaker DTS 5.1, Logic 7

Headphone Modes: 2-Channel, Dolby HP

S-Video/Component Video Inputs: 3

Analog Audio Inputs: 5

Digital Audio Inputs: Rear panel 2 coax / 2 optical

Digital Audio Inputs: Front panel 1 coax / 1 optical

Digital Audio Outputs (Coax/Optical): Rear panel 1/0

Auxilary Audio Input: Mini-jack

HDMI: 1.3a Switching

HDMI: Inputs... 3

HDMI: Output... 1

Preamp Outputs: Subwoofer

Component Video Inputs (Assignable): 2 @ 100MHz

Bass Management: Triple Crossover

DSP Processor: Cirrus CS 49510

Output DACs: 192kHz/24-bit

A/V Sync Delay: Yes

System Remote: 6-Device preprogrammed

Discrete Remote On/Off Codes: Yes

Speaker Terminals: Color-coded binding posts

Mål

Weight: 10.9kg

Dimensions (H x W x D): 165mm x 440mm x 382mm

The AVR 142 is all about getting connected – digitally. It features three HDMI™ inputs, two wide-bandwidth HDTV-ready component video inputs, a front-panel input for video games, an auxiliary input for portable media players, and a portfolio of advanced surround-processing technologies, including Dolby® Digital, DTS® and Logic 7® processing. With the AVR 142, your speakers never heard it so good!
