CR 151

CR 151

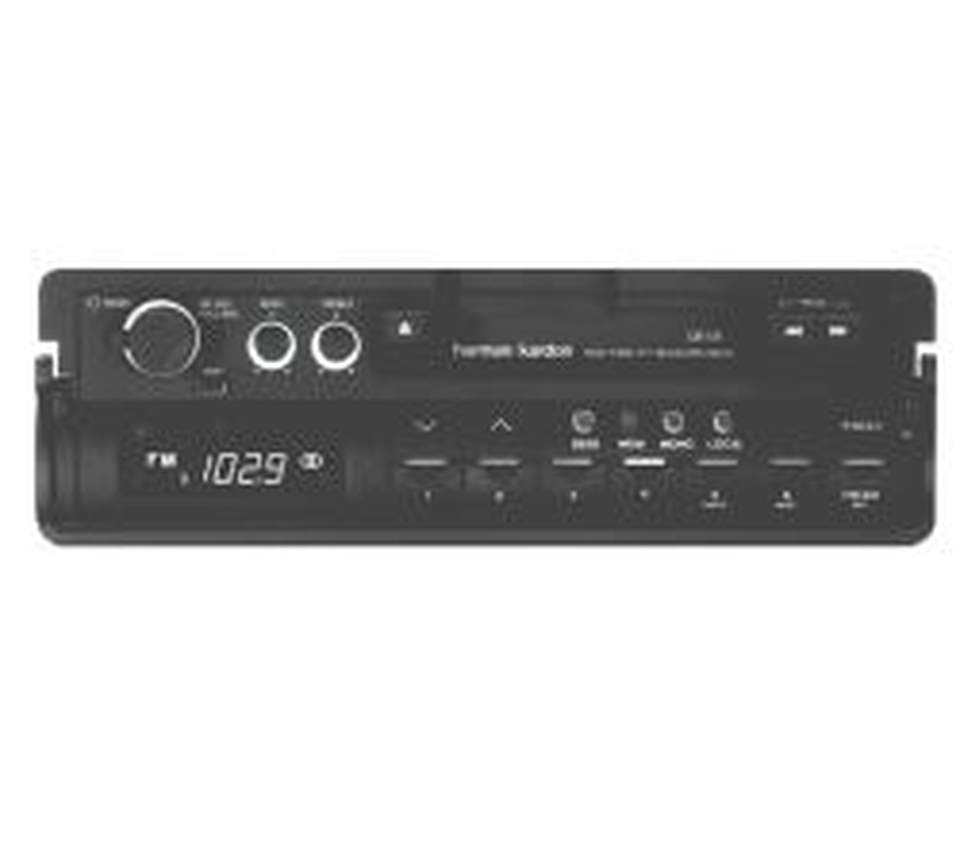

Removable Car Radio/Cassette Deck

Sold from 1988 until 1990

Documents & Downloads

Specifications

Frequency Response
CASSETTE... 20Hz- 18Hz (±3dB)
Wow and Flutter
CASSETTE... 0.09%
Power Consumption
4.5 amps
MSRP U.S.
$659.95 each
Tuner
FM... Digital Synthesized
Usable Sensitivity
FM... 14.8dBf
Quieting Sensitivity
FM... MONO – 18dBf (50dB)
Signal-to-Noise Ratio
FM... MONO – 72dB
Signal-to-Noise Ratio
FM... STEREO – 68dB
Total Harmonic Distortion
FM... MONO – 0.2%
Total Harmonic Distortion
FM... STEREO – 0.4%
Capture Ratio
FM... 1.5dB
Selectivity
FM... 70dB
IF Rejection
FM... 80dB
Image Rejection
FM... 55dB
Stereo Separation
FM... 40dB
Frequency Response
FM... 30Hz – 15kHz (±3dB)
Sensitivity
AM... 30uV
Selectivity
AM... 50dB
Output Level/Impedance
0.8V/10k ohms
Amplifier Power (RMS)
20Hz – 20kHz (cont. power/ch, into 4 ohms @ 1% THD)
Tone Controls
±10dB
Loudness Control
+10dB
