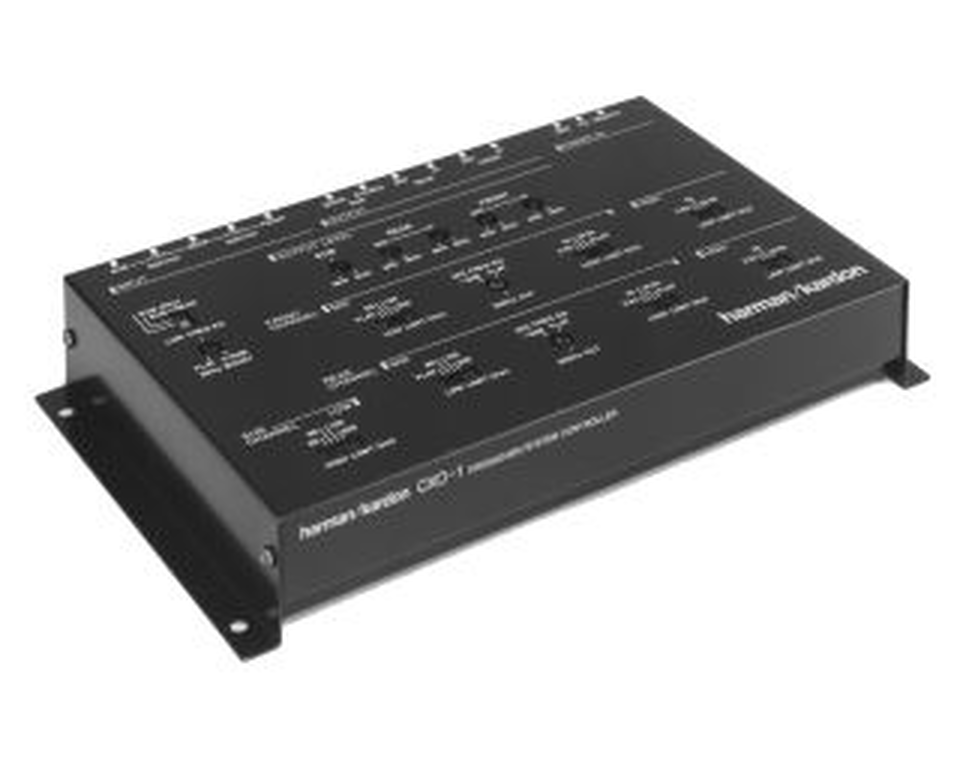

CXO 1

CXO 1

3-Way / 6-Channel Active Crossover

Sold from 1987 until 1993

Made in: Japan

Documents & Downloads

Specifications

Filter
TYPE – 2nd Order Bessel (12dB/Octave)
Filter
SUB CHANNEL – Low Pass50Hz, 80Hz, 125Hz, and 200Hz
Filter
MID CHANNEL – Low Pass2.5kHz, 4.0kHz, 6.3kHz and flat
Filter
MID CHANNEL – High PassFlat, 80Hz, 125Hz, 200Hz
Filter
HIGH CHANNEL – High Pass2.5kHz, 4.0kHz and 6.3kHz
Tone Controls
LOW EQ – 50Hz Center Frequency, 0 to +10dB Boost
Tone Controls
MID EQ – 200Hz Center Frequency, 0 to -8dBcut
Gain
INSERTION LOSS – 0dB (all output level controls max)
Output Level
MAXIMUM – 1.75 Volts (< 0.1% THD)
Total Harmonic Distortion
<0.05% @ 1.0V
Frequency Response
10Hz – 100kHz (+0/-3dB) (flat setting)
Signal-to-Noise Ratio
> 130dB (A-WTD, 1.0V)
Stereo Separation
> 70dB
Input Impedance
26k ohms per channel, input switches ad in parallel
Output Impedance
270 ohms capacitively coupled
MSRP U.S.
$239.95 each
