CA 240

CA 240

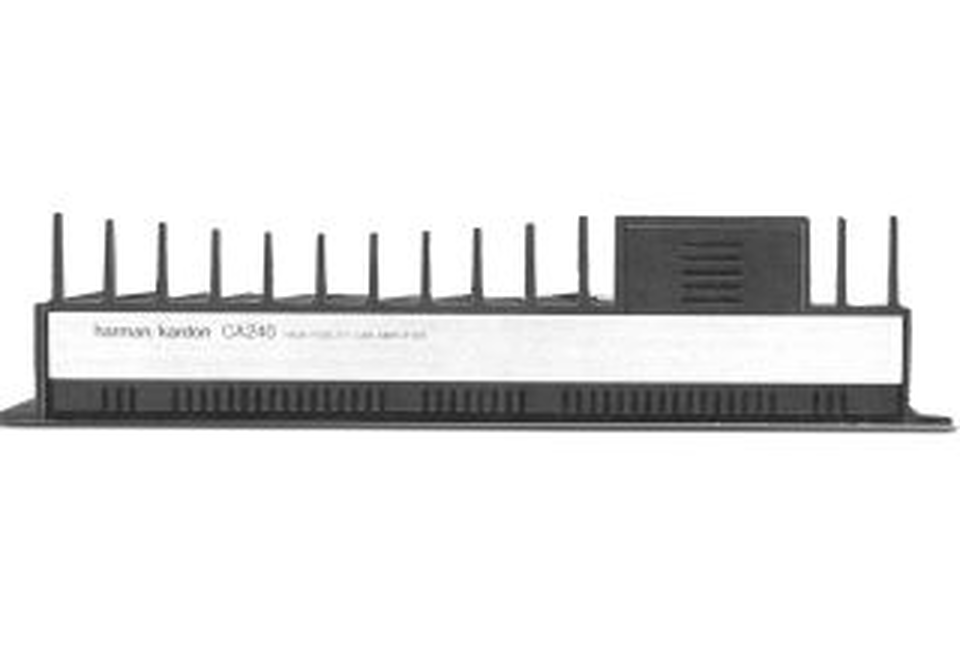

2-Channel Car Audio Amplifier (40 watts x 2)

Sold from 1985 until 1993

Successor Product: CA 70
Made in: Japan

Documents & Downloads

Specifications

Output 4 Ohms
40 watts per channel, 20 – 20kHz
Output 2 Ohms
50 watts per channel, 20 – 20kHz
Output 4 Ohms Bridged
100 watts, 20 – 20kHz
High Instantaneous Current Capability (HCC)
± 25 Amps
Negative Feedback
25dB
Power Bandwidth
10Hz – 100kHz
Frequency Response
10Hz – 100kHz (±3dB @ 1 watt)
Signal-to-Noise Ratio
80dB
Input Sensitivity
0.25-3V adjustable
Crossover Frequency(ies)
HIGH PASS – 200Hz, 12dB/Octave
Crossover Frequency(ies)
LOW PASS – 200Hz, 12dB/Octave
Power Supply
DC +13.8V (11-16V usable), negative ground
Power Requirements
AT IDLE – 1.9A
Power Requirements
FULL POWER MUSIC SIGNAL – 4A (4 ohms/ch), 6A (2 ohms/ch)
Power Requirements
FULL POWER SINE WAVE – 12A (4 ohms/ch), 18A (2 ohms/ch)
MSRP U.S.
$369.95 each
