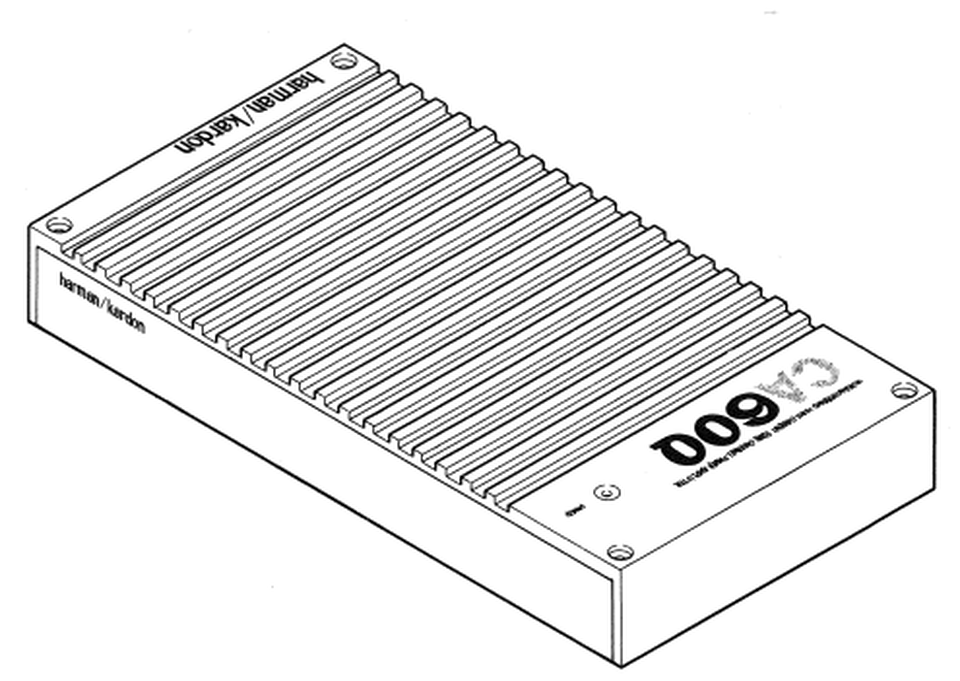

CA 60Q

CA 60Q

4-Channel Car Audio Amplifier (15 watts x 4)

Sold from 1991 until 1993

Made in: Japan

Documents & Downloads

Specifications

Output 4 Ohms
15 watts RMS x 4, 20 – 20kHz
High Instantaneous Current Capability (HCC)
± 10 Amps
Total Harmonic Distortion
no more than 0.2% (4 ohms)
Negative Feedback
25dB
Power Bandwidth
10Hz – 100kHz
Frequency Response
10Hz – 100kHz (±3dB @ 1 watt)
Signal-to-Noise Ratio
100dB
Input Level/Impedance
250mV/22k ohms (variable)
Power Supply
DC +14.4V (11-16V usable), negative ground
Power Requirements
AT IDLE – 0.6A
Power Requirements
FULL POWER MUSIC SIGNAL – 2.4A (4 ohms/ch)
Power Requirements
FULL POWER SINE WAVE – 7.2A (4 ohms/ch)
MSRP U.S.
$319.95 each
