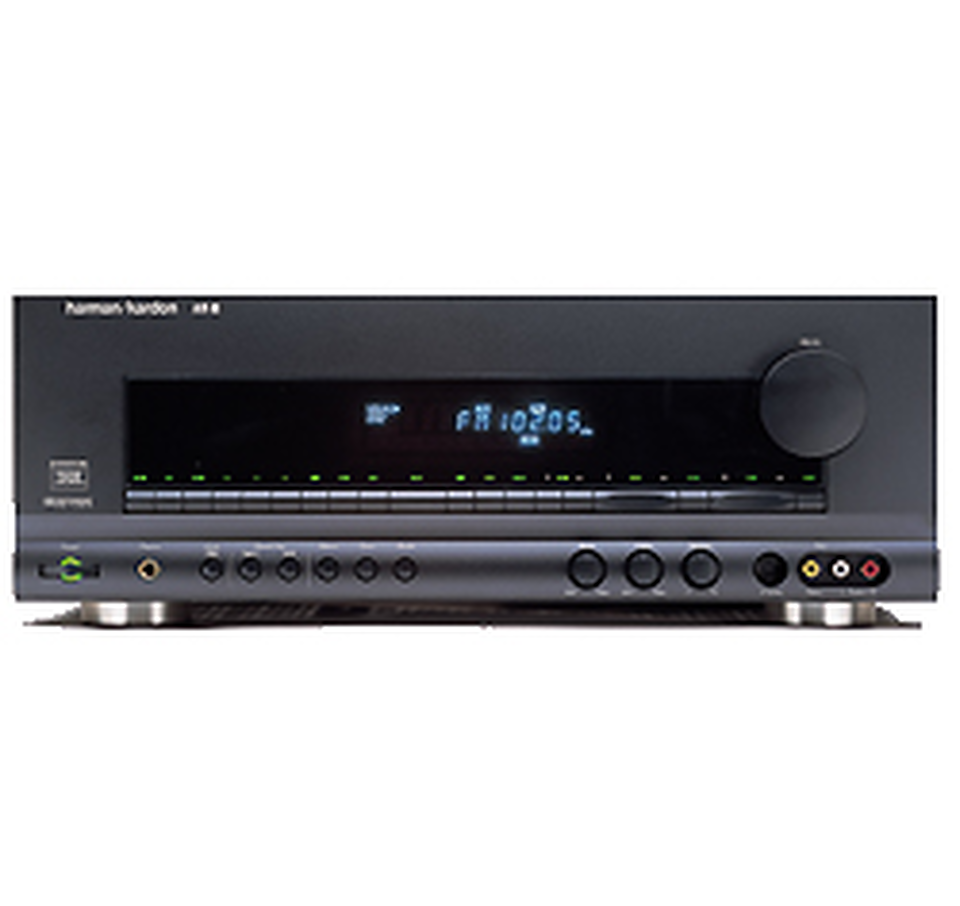

AVR 80

Audio/Video Receiver With Dolby Pro-Logic (100 watts x 2 | 85 watts x 3 front & 60 watts x 2 rear) {dolby digital ready} THX Certified

Verkauft von 1996 bis 1996

Nachfolgeprodukt:	AVR 80 II
Hergestellt in:	Japan

Dokumente & Downloads

Benutzerhandbücher

Bedienungsanleitung (Englisch) 458.79 KB

Produktdetails

Allgemeine Spezifikationen

MSRP U.S.: $1600 each

Tuner Specifications

Usable Sensitivity: FM... MONO – 13.5dB

Signal-to-Noise Ratio: FM... MONO – 76dB

Signal-to-Noise Ratio: FM... STEREO – 68dB

Output Level: FM... 50dB

Stereo Separation: FM... 40dB

Total Harmonic Distortion: FM... STEREO – 0.5% @ 1kHz

Total Harmonic Distortion: FM... MONO – 0.2 @ 1kHz

Sensitivity: AM... EXTERNAL ANTENNA – 500 microvolts

Alternate Channel Selectivity: AM... 70dB

Power Consumption: AM... 700 watts

Amplifier Specifications

Audio Inputs: 1 line

Audio Inputs: 1 6-channel direct

Audio Loops: 2

Audio/Video Inputs: 3 (all with composite & s-video)

Audio/Video Loops: 2 (all with composite & s-video)

Digital Inputs: 1 composite

Preamp Outputs: Fronts, Center, Rears, Sub, Multi-Room

Power Amp Inputs: Fronts, Center, Rears

Video Outputs: 1 monitor (both composite & s-video)

Video Outputs: 1 multi-room (both composite & s-video)

Amplifier Power (RMS): STEREO – 100 watts per channel @ 8 ohms

Amplifier Power (RMS): SURROUND – FRONT L & R, CENTER 85 watts per channel @ 8 ohms

Amplifier Power (RMS): SURROUND – REAR L & R 60 watts

Total Harmonic Distortion: STEREO – 0.05% @ 8 ohms

Total Harmonic Distortion: SURROUND – FRONT L & R, CENTER 0.05% @ 8 ohms

High Instantaneous Current Capability (HCC): ± 30 Amps

Frequency Response: 7Hz – 80kHz (+0/-3dB)

Slew Rate: 40 v/microsecond

Rise Time: 16 microseconds

Transient Intermodulation Distortion (TIM): Unmeasurable

Signal-to-Noise Ratio: 95dB

Input Level/Impedance: CD, VIDEO, etc – 220 mv/50k ohms

The audiophile's A/V receiver, the AVR80 boasts a variety of surround-sound modes, including the renowned Lucasfilm THX mode. It's power ratings are 3 x 85 watts (front channels) and 2 x 60 watts (rear channels). It has 6-channel direct inputs for use with an external DTS or Dolby Digital decoder. This unit also features a learning remote control and multiroom control system for independent second-zone operation (when used with an external amplifier). The Harman Kardon AVR80 is the true reference standard. Sold as each. Factory
