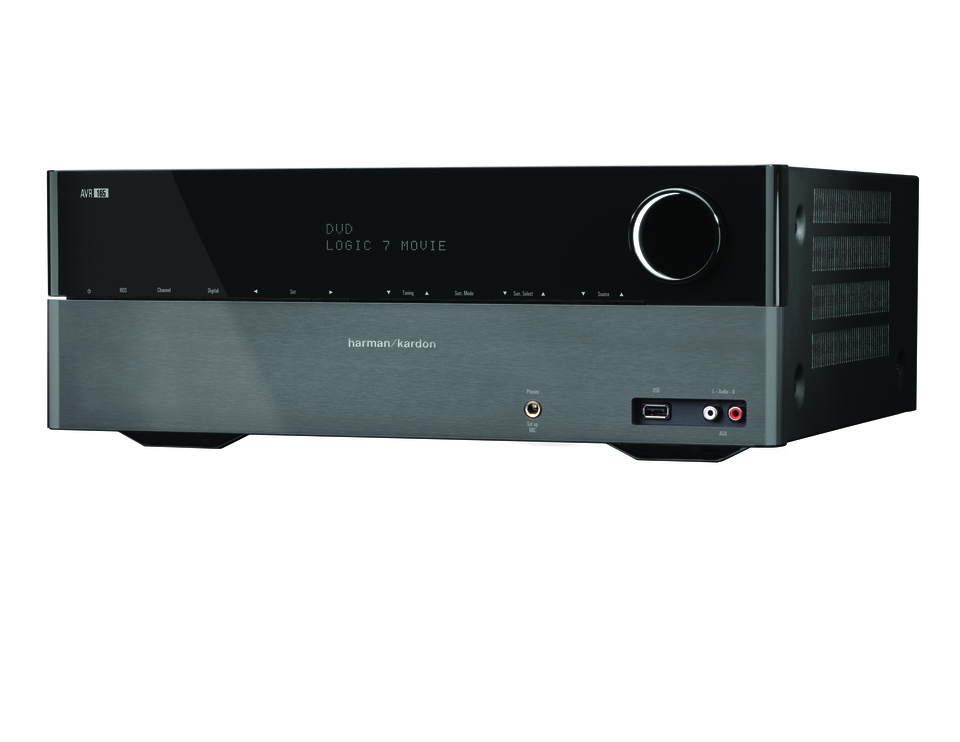

AVR 1650

AVR 1650

Audio/Video Receiver With Dolby TrueHD & DTS-HD Master Audio & HDMI 1.4 (95 watts x 5) 5.1

Verkauft von 2011 bis 2013

Vorgänger-Produkt: AVR 1600
Nachfolgeprodukt: AVR 1700
Hergestellt in: China

Dokumente & Downloads

Produktdetails

Transient intermodulation distortion (TIM):
Unmeasurable
Multichannel Power (all channels driven)
95W per channel, two channels driven @ 8 ohms, 20Hz – 20kHz, less than 0,07% THD
Power Consumption (full power/idle)
less than 0.5W (standby); 280W maximum
MSRP U.S.
$599.95 each
Slew Rate
40V/sec
Distortion (Mono/Stereo)
0.2%/0.3%
Stereo Separation @ 1kHz (dB)
40dB @ 1kHz
Frequency Range (MHz)
87.5 – 108.0MHz
Stereo Power
95W per channel, two channels driven @ 8 ohms, 20Hz – 20kHz, <0,07% THD
Usable Sensitivity (Loop)
500?V
Signal-to-noise Ratio (IHF-A) (dB)
100dB
Input Level/Impedence (ohm)
1Vp-p/75 ohms
Input Sensitivity/Impedence
200mV/47k ohms
Output Level/Impedence (ohm)
1Vp-p/75 ohms
Usable Sensitivity (IHF)
1.3?V/13.2dBf
High Instantaneous Current Capability
±25 amps
Surround system adjacent-channel separation:
Dolby Pro Logic/PLII
Frequency Response
10Hz – 130kHz (+0dB/–3dB)
Distortion (1kHz, 50% mod):
0.80%
Signal-to-Noise Ratio (Mono/Stereo dB)
70dB/68dB
Selectivity (±400kHz):
70dB
Frequency Range (kHz)
520 – 1720kHz
Selectivity (±10kHz):
30dB
Signal-to-Noise Ratio (dB)
45dB
Depth (mm)
435
Weight(kg)
20
Height (in)
6-1/4
Width (mm)
440
Width (in)
17-5/16
Depth (in)
17-1/8
Height (mm)
165
Weight
20 lb (9.1kg)
Television Format
NTSC
Image Rejection (dB)
80dB
Video Frequency Response (Component Video)
10Hz – 8MHz (–3dB)
IF Rejection (dB)
90dB
Video Frequency Response
Composite Video... 10Hz – 8MHz (-3dB)
Video Frequency Response
HDMI... v.1.4 with 3-D and Deep Color
Power Requirement
120V AC/60Hz

A midrange 5.1-channel A/V receiver with HDMI 3D plus Dolby, DTS and Logic 7 surround.

Take your home entertainment to the next level. As the perfect A/V receiver for budget-conscious film lovers and audiophiles, the Harman Kardon® AVR 1650 has an impressive list of features designed to take your home entertainment to the next level. Thanks to HDMI® v.1.4a with 3-D, Deep Color and Audio Return Channel, this versatile receiver brings a multidimensional TV viewing experience to your living room, offering all the latest Dolby® TrueHD and DTS-HD Master Audio™ decoding technology and Harman Kardon Logic 7® processing, while creating an exhilarating 5.1-channel, 360-degree soundstage for your movies, TV shows and games.

The AVR 1650 high-performance receiver delivers 95 watts per channel with the ability to power a full 5.1-channel surround-sound system. A high-current capability (HCC), ultrawide-bandwidth amplifier design ensures accurate, dynamic sound with enhanced clarity and realism, even at the highest listening levels. You can also connect the AVR 1650 to a powered subwoofer to generate additional low-frequency excitement.
Four HDMI inputs with 3D and 30/36-bit Deep Color deliver high-definition digital video at resolutions up to 1080p with full-fidelity audio through a single cable. There is no loss of video or audio quality because of format conversion, just full-impact Hollywood excitement as its creators meant you to experience it.
The AVR 1650 delivers high-resolution audio to match the digital video of Blu-ray Disc formats, unlocking the full potential of movie soundtracks formatted with Dolby TrueHD and DTS-HD Master Audio coding. No matter what mode or mood you are in, you’ll always hear playback at its finest.
Harman Kardon Logic 7 technology transforms a stereo input into full 5.1-channel surround sound, courtesy of proprietary algorithms that make any audio source – HDMI, analog, component, composite or computer-based audio from a USB connection – truly spectacular. The result is optimal quality and a superior, enveloping experience that engulfs you in a 360-degree soundscape.
The optional Harman Kardon The Bridge IIIP docking station (sold separately) works with an Apple iPod or iPhone to expand your entertainment options beyond DVD and Blu-ray Disc media. Once connected, The Bridge IIIP even charges your Apple device and works seamlessly with the AVR 1650’s system remote control to navigate and play your favorite music and video tracks.
The EzSet/EQ auto-calibration process tailors the AVR 1650’s loudspeaker outputs to match playback volume levels for your specific room conditions automatically. The system features an easy-to-follow menu display and a plug-in calibration microphone.
Four HDMI input ports let you digitally interconnect your entire system for maximum audio/video performance. HDMI-format ports dramatically reduce connection confusion while ensuring the greatest chance for compatibility with whatever audio/video equipment you are planning to connect.
In addition to four HDMI digital ports, the AVR 1650 features one component and three composite video inputs that connect directly to legacy video sources. The receiver even transcodes component video to the HDMI interface with a single connection to your TV. In this way, it is easier than ever before to receive a high-definition signal from whatever video sources you select, including Blu-ray Disc, DVD and portable-music players.
The AVR 1650’s FM section features an 87.5MHz – 108.0MHz frequency range, while the AM section handles frequencies from 520kHz to 1720kHz. Thirty station presets let you return to your favorite stations with a simple press of a button.
By accepting banana plugs, spade connectors, pin connectors or bare wire, the AVR 1650’s binding-post connectors provide secure links for your speaker cables. Color-coding of these connectors reduces errors while you’re hooking up your speakers to the appropriate channel amplifiers.
