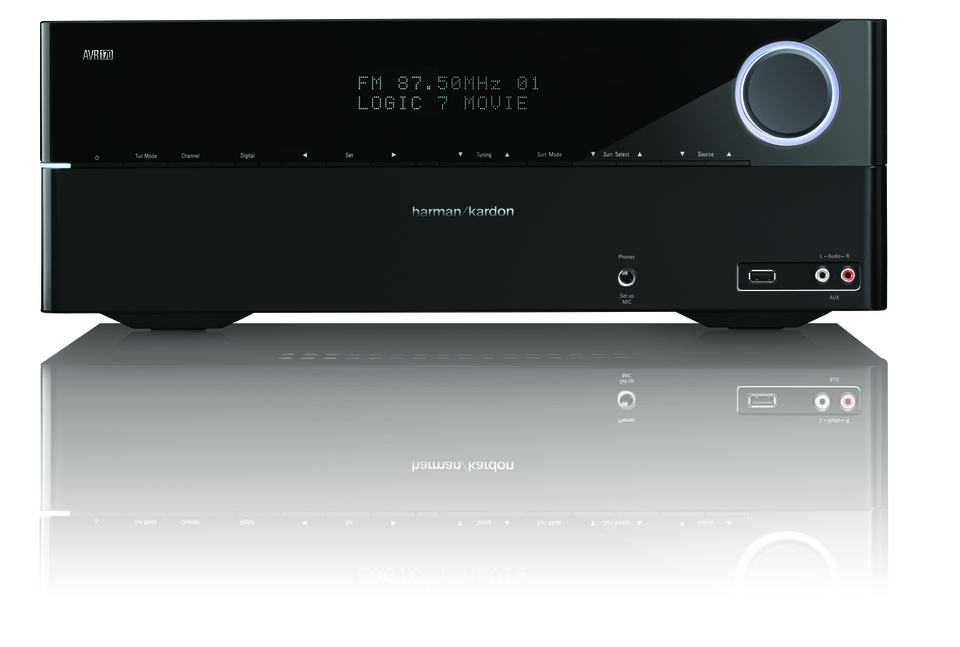

AVR 170
5.1-ch, 100-watt AV receiver with HDMI, AirPlay, iOS Direct, USB
Verkauft von 2012 bis 2014
| Hergestellt in: | China |
|---|
Dokumente & Downloads
Produktdetails
- Power Consumption (full power/idle)
- 240W
- Power Requirement
- 220V – 240V AC/50Hz
- Transient intermodulation distortion (TIM):
- Unmeasurable
- Multichannel Power (all channels driven)
- 95W per channel, two channels driven @ 8 ohms, 20Hz – 20kHz, <0.07% THD
- Frequency Response
- 10Hz – 100kHz
- Selectivity (±10kHz):
- 70dB
- Signal-to-Noise Ratio (dB)
- 38dB
- Signal-to-Noise Ratio (Mono/Stereo dB)
- 70dB/68dB
- Usable Sensitivity (IHF)
- 1.3?V/13.2dBf
- Frequency Range (MHz)
- 87.5 – 108.0MHz
- Signal-to-noise Ratio (IHF-A) (dB)
- 100dB
- Output Level/Impedence (ohm)
- 1Vp-p/75 ohms
- Surround system adjacent-channel separation:
- Dolby Pro Logic/PLII: 40dB Dolby Digital
- Distortion (1kHz, 50% mod):
- 1.00%
- Stereo Separation @ 1kHz (dB)
- 40dB @ 1kHz
- Distortion (Mono/Stereo)
- 0.2%/0.3%
- Input Sensitivity/Impedence
- 250mV/27k ohms
- High Instantaneous Current Capability
- ±34 amps
- Stereo Power
- 100W per channel, two channels driven @6/8 ohms, 1kHz, <1.0% THD
- Selectivity (±400kHz):
- 70dB
- Input Level/Impedence (ohm)
- 1Vp-p/75 ohms
- Frequency Range (kHz)
- 522kHz – 1620kHz
- Usable Sensitivity (Loop)
- 500?V
- Weight(kg)
- 12.8 lb
- Width (mm)
- 440 mm
- Height (in)
- 6-1/2" inches
- Depth (mm)
- 350mm
- Width (in)
- 17-5/16" inches
- Depth (in)
- 13-13/16" inches
- Height (mm)
- 165mm
- IF Rejection (dB)
- 80dB
- Television Format
- PAL
- Image Rejection (dB)
- 80dB
- Video Frequency Response (Component Video)
- 10Hz – 8MHz (–3dB)
Powerful and versatile yet easy to use.
The Harman Kardon® AVR 170 has virtually everything that you want in an audio/video receiver. Do you want sheer power? The AVR 170 has 100 watts per channel. Want a variety of entertainment sources? The receiver includes vTuner® Internet radio, DLNA® 1.5 and AirPlay for wireless reception of your music and HDMI® inputs for DVDs, HDTV, Blu-ray Disc™ media and video games. How about a system that’s easy to use? A mobile app, remote control and intuitive menu system offer sheer simplicity. With all of these features and famously superb Harman Kardon audio, the AVR 170 offers spectacular entertainment.
Harman Kardon engineers have built the AVR 170 audio/video receiver for a premium home theater experience, with the ability to fill the air with astonishing sound at 100 watts per channel. Speaking of the channels: With 5.1 of them, plus connections for a subwoofer, the AVR 170 immerses you in a true surround-sound environment.
Hear your networked media sources as never before in pitch-perfect surround sound. DLNA 1.5 enables the AVR 170 to stream audio and video from compatible devices onto your home network via Ethernet connection, allowing you to enjoy them at a quality that you would not have thought possible.
This free, downloadable software enables your AVR 170 to enjoy DLNA compatibility with your Mac OS devices or older versions of the Windows® operating system. And it helps organize and clean up the cover art on your music files, regardless of your computer type.
Hear how truly amazing your streaming music can sound. AirPlay allows you to stream music wirelessly from your iOS® devices and from the iTunes service through your AVR 170 for superb sound.
The Harman Kardon EzSet/EQ system automatically sets key system parameters and fine-tunes the AVR 170’s sound to your specific listening room with the press of a few buttons.
Your AVR 170 doesn’t need a docking station. Instead, its front-panel USB port allows an easy-access connection point for any iOS devices. It even lets you access music stored on a flash drive. Furthermore, the included AVR remote gives you a convenient way to control any connected device.
Enjoy your favorite radio stations, podcasts and Internet-only programming from around the globe in outstanding surround sound on your AVR 170. vTuner® Internet radio gives you quick, easy access to your favorite online stations.
A free, downloadable app allows you to transform your smartphone or tablet into an easy-to-use remote control. Compatible with most iOS and Android™ devices, this high-definition graphical user interface gives you full control of your AVR 170 and all its connected media through the convenience of your favorite portable device.
3D movies play as vividly and realistically in your home as they would in a movie theater, thanks to the AVR 170’s advanced HDMI connectivity. Experience everything from a 3D TV to a 3D Blu-ray Disc recording with an astonishing level of realism.
Hear films on your AVR 170 the way the filmmakers intended you to hear them – no matter which spot you get on the couch. Dolby® TrueHD and DTS-HD Master Audio™ decoding create an immersive, high-resolution sound environment that matches the high-resolution HDMI video from HD sources such as Blu-ray Disc recordings.
FAQs & How-To
4 Ergebnisse
-
Bei manchen Blu-rays ist es erforderlich, im Toneinstellungs-Menü des Blu-ray Players, „Bitstream“ oder „Bitstream Native“ auszuwählen. Dies ermöglicht die Weiterleitung der Originaltonspur vom Blu-ray Spieler an den AVR und dann wird auch im Display auf der Gerätefront das jeweils korrekte Tonformat angezeigt.War dies hilfreich? Vielen Dank für Ihr Feedback!
-
Für Ihre persönliche Sicherheit und um eine etwaige Beschädigung Ihres Geräts und der Lautsprecher zu vermeiden, sollten Sie vor dem Verbinden von Audio- oder Videosystemen den AVR und ALLE Quellengeräte ausschalten und von der Stromversorgung trennen.War dies hilfreich? Vielen Dank für Ihr Feedback!
-
Ja, geben Sie auf Ihrem Computer die IP-Adresse des Empfängers im Internetbrowser ein. Auf der angezeigten Seite lässt sich der Name ändern.War dies hilfreich? Vielen Dank für Ihr Feedback!
-
Bitte probieren SIe es mit einem anderen HDMI-Kabel erneut und versichern Sie sich, dass es sich dabei um eine §D-fähige, High-Speed Variante Handelt. Dies behebt in der Regel den Fehler, da diese Kabelvariante genug Bandbreite für HD, Full-HD und 3D hat.War dies hilfreich? Vielen Dank für Ihr Feedback!
